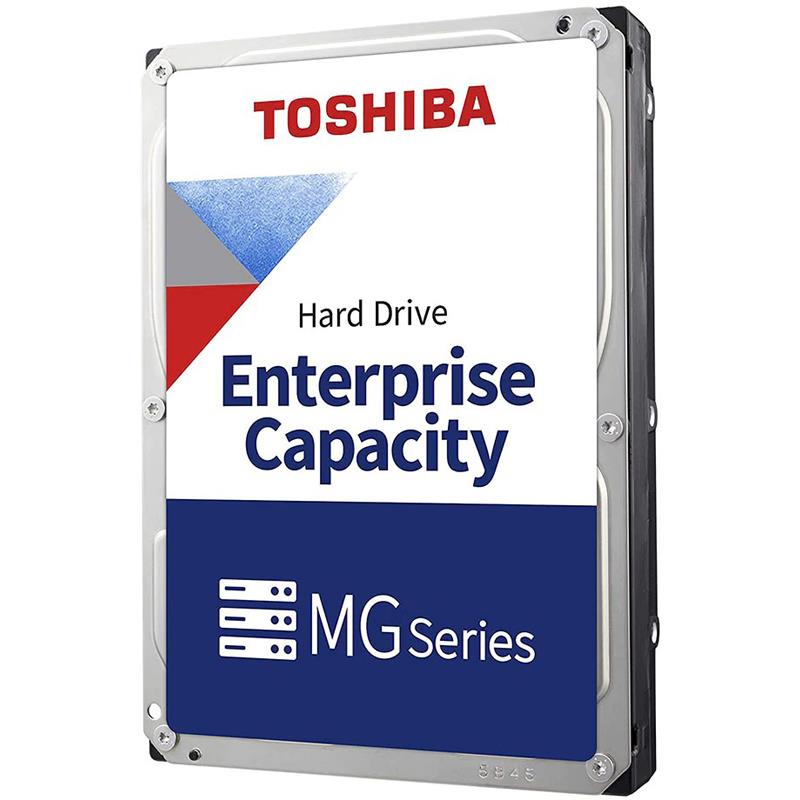

Toshiba MG09SCA18TA Hard Drive 18TB SAS 12Gb/s 7200 RPM 3.5in, 4Kn - MG09 Series
Integrate easily into standard 3.5-inch drive bays
18TB of conventional magnetic recording (CMR) capacity
SAS 12.0 Gbit/s interface, Lower operational power profile
Data Center Data-Protection and Data Back-up Infrastructure
Hard Drive 18TB SAS 12Gb/s 7200 RPM 3.5in 512MB Cache 4Kn MG09 Series - OEM
MG09 SERIES CLOUD-SCALE CAPACITY HDD
The MG09 Series provides 18TB of conventional magnetic recording (CMR) capacity. The industry-standard 3.5-inch form-factor provides 7200 rpm performance, and integrates easily into cloud-scale storage infrastructure, business-critical servers and storage, and File and Object storage solutions.
Toshiba’s leadership in precision industrial laser welding technology is put to use to permanently seal helium inside the 9-disk mechanics. The helium-sealed design reduces aerodynamic drag to significantly lower the drive’s operational power profile, which helps deliver critical TCO benefits for data center infrastructures. The sealed design and corrosion-resistant electronics also mitigate against lifetime failure modes due to air bourn pollutants and other environmental factors.
Key Features
18TB capacity
Conventional Magnetic Recording (CMR) for broad compatibility
Toshiba Flux Control Microwave-assisted Magnetic Recording (FC-MAMR) Technology
Industry-leading 9-disk helium-sealed design for superior storage density
Industry Standard 3.5-inch 26.1 mm height Form Factor
7200 rpm Performance
Lower operational power profile, providing excellent power efficiency (W/TB) for better TCO
550 Total TB Transferred per Year Workload Rating
Applications
Cloud-scale Server and Storage Infrastructure
Software-defined data center infrastructure
File- and Object-based storage infrastructure
Tiered Storage Infrastructure Solutions
Workloads and Use-Cases that Benefit from High Capacity per Spindle disk drives
Capacity-Optimized Cloud-scale and Rack-Scale Storage Systems
Compliance Data Archives and Data Life-Cycle Management Storage Systems
Data Center Data-Protection and Data Back-up Infrastructure
Extra Specifications for Toshiba MG09SCA18TA Hard Drive 18TB SAS 12Gb/s 7200 RPM 3.5in, 4Kn - MG09 Series
Main Specifications | ||
Device Type | Hard drive - internal - 4Kn Format | |
Capacity | 18TB | |
Interface | SAS 12Gb/s | |
Form Factor | 3.5-inch | |
Weight | 1.58 lb | |
Hard Drive | ||
Buffer Size | 512MB | |
Spindle Speed | 7200RPM | |
Performance | ||
Max Sustainable Transfer Rate | 268MiB/s | |
Interface Access Speed (Gb/s) | 12.0, 6.0, 3.0 | |
Power | ||
Power Consumption | Write / Read 4KB Q1 (Typ.): 8.74 W - Active Idle (Idle-A): 4.54 W | |
Miscellaneous | ||
MTBF | 2.5 (M hours) |
