- Supermicro SSE-SN3700-CS2RC 100Gb Ethernet Switch Offers 32x QSFP28 ports Regular Airflow (Front to Back)

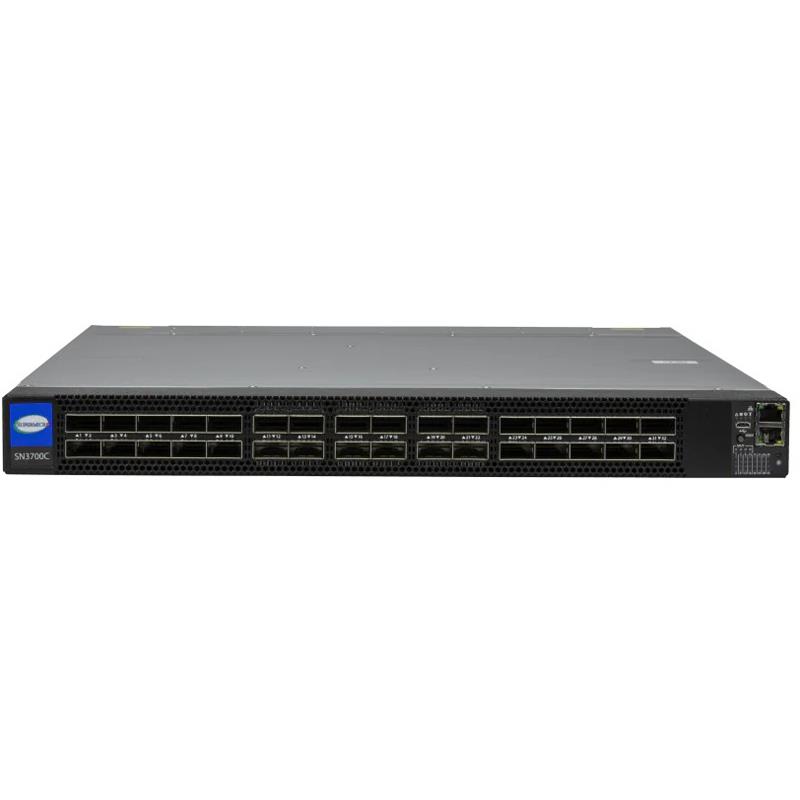

Supermicro SSE-SN3700-CS2RC 100Gb Ethernet Switch Offers 32x QSFP28 ports Regular Airflow (Front to Back)
32x QSFP28 Ethernet ports
Regular Airflow (front to back)
Cumulus Linux Ready (Pre-Installed)
Layer 2/3 25G/100G Ethernet Switch
100G Ethernet Switch Layer 2/3, 1U Form Factor for flexible Installation, Spectrum-2 Based, Cumulus Linux Ready (Pre-Installed and License activated), 32x QSFP28 ports, Dual Redundant Hot-swappable Power Supplies, x86 CPU, Standard Depth, Regular Airflow (Front to Back) - RoHS compliant
High-performance Open Networking 100G spine switch
Supermicro introduces the Spectrum-2 based Open Networking 32 port 100G spine Switch SSE-SN3700C series that is designed to provide high density 10G/25G leaf as well in a compact 1U form factor.
With a total of 6.4Tb/s throughput, SSE-SN3700C switch comes with dual and redundant power supplies and FANs. The included rail kit facilitates rack-mounting installations. SN3700C allows for maximum flexibility, with ports spanning from 1GbE to 100GbE and port density that enables full rack connectivity to any server at any speed, and a variety of blocking ratios. SN3700C ports are fully splitable to up to 128X 10/25GbE ports.
SSE-SN3700C is ready with pre-installed Cumulus Linux OS for open networking incorporating a true Linux distribution with extensive networking features plus hardware acceleration of routing and switching functions. By using many of the same tools employed for servers, Cumulus Linux enables affordable scalability with clear CapEx savings and even greater OpEx savings, it unleashes rapid innovation via custom, open source or commercial Linux tools and applications.
Features
1U ToR 100Gbps/25Gbps Ethernet Switch
Open Networking - ONIE installed
Cumulus Linux Ready (Pre-Installed and License activated)
Data Center Friendly
Dual Redundant Hot-swappable power supplies
Regular and Reverse Air-Flow Models
Powerful Spectrum-2 Switch Chip
6.4Tbps Switching Capacity
Non-blocking
Versatile Dual Core Processor
8GB DRAM
32GB SSD
Extra Specifications for Supermicro SSE-SN3700-CS2RC 100Gb Ethernet Switch Offers 32x QSFP28 ports Regular Airflow (Front to Back)
Main Specifications | ||
Device Type | 100Gb Ethernet Switch | |
Form Factor | 1U ToR | |
Type | Regular Airflow (front to back) | |
Dimensions (WxDxH) | 1.72" x 16.84" x 22" (44mm x 428mm x 559mm) | |
Weight | 11.1kg (24.5lb) | |
Networking | ||
Data Forwarding | Full Duplex 6.4Tbps Switching Capacity, Spectrum-2 Switch Chip, Non-blocking, wire-speed Layer 3 Routing | |
Power Supply | ||
Power Supply | 1+1 hot-swappable power supplies and N+1 hot-swappable fans | |
Regulatory Safety / EMC | Safety: CB, CE, cTUVus, CU - EMC: CE, ICES, FCC, RCM, VCCI | |
Software / System Requirements | ||
OS Supports | Cumulus Linux Ready (Pre-Installed and License activated) | |
Expansion / Connectivity | ||
Expansion / Connectivity | RJ-45 Gigabit Ethernet management port | |
RJ-45 serial console | ||
USB port | ||
32x QSFP28 Ethernet ports | ||
Environmental | ||
Operating Environment | Temperature: Operating 0°C to 40°C (32°F to 104°F) | |
Humidity: Operating: 5% to 85% (non-condensing) | ||
Parts List - (Items Included) | ||
Mounting Rails | Included | |
Miscellaneous | ||
Compliant Standards | RoHS Compliant |
Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
