- Supermicro CSE-745TQ-800B Tower/4U Rackmount w/ 800W P. Supply

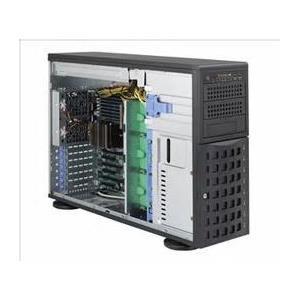

Supermicro CSE-745TQ-800B Tower/4U Rackmount w/ 800W P. Supply
Compatible with Dual & Single Intel and AMD processors
Reliable Power with 800W High-Efficiency Power Supply
4U Chassis supporting motherboard sizes: E-ATX 13.68" x 13"
Expandable Design with 7 full-height & full-length expansion slot
Tower / 4U Rackmountable w/ 800W Power Supply for Motherboards up to 13.68in x 13in - Includees 8x SAS / SATA Hot-Swap Drive Carriers, 2x 5.25in Peripheral Bays, 1x 2.25in Bay for 3.5in FDD, 7x Full-Height PCI Expansion Slots (SC745TQ-800B) - (Black)
1. 8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives
2. Front HDD Door Lock & Side Panel Intrusion Switch
3. Front I/O Ports: 2x USB 2.0
4. 3x 8cm (5000 rpm) Middle PWM Fans & 2x 8cm (5000 rpm) Rear PWM Fans
5. 4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 13.68" x 13"/ATX/Micro ATX
6. 800W High-Efficiency Power Supply
7. 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives
Extra Specifications for Supermicro CSE-745TQ-800B Tower/4U Rackmount w/ 800W P. Supply
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power Status LED | |
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Ports | 2x USB 2.0 Port(s) | |
| Power Supply | ||
| Power Supply | 1U 800W hot swap redundant power supply. | |
| Power Efficiency | 89% | |
| Total Output Power and Input | 800W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 66A / Min: 0.5A (100Vac - 240Vac) | |
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Certification | N/A | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 4U chassis - supports for maximum motherboard sizes: E-ATX 13.68" x 13" | |
| Processor Support | ||
| Processor Support | Single and Dual Intel® and AMD processors | |
| Dimensions | ||
| Height | 17.8" (452 mm) | |
| Width | 7" (178 mm) | |
| Depth | 25.5" (647 mm) | |
| Net Weight | 55 lbs (24.95 kg) | |
| Gross Weight | 58 lbs (26.31 kg) | |
| Packaging (W x H x L) | 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
| Backplane | ||
| Backplane | 743 SAS BACKPLANE W/AMI MG9072 | |
| Peripheral Drives | ||
| Peripheral Drives | 3 x standard 5.25" drive bay | |
| Systems Cooling | ||
| Fans | 3 x 5000 RPM Hot-swap PWM Cooling Fans | |
| 2 x 5000 RPM Hot-swap Rear Exhaust Fans | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Mounting Rail | CSE-PT26L-(B) | 0 | - | |||
| LCD | MCP-220-00095-0B | $ 90.00 | 0 | 5.25" USB LCD Kit | ||
| Cable | CBL-0153L | 0 | 6pin GPU power extension from PDB 2x big 4pin, 16cm | |||
| Cable Management Arm | MCP-290-00073-0N | $ 81.50 | 0 | Supermicro Cable Management Arm for 2U, 3U and 4U chassis | ||
| Add-on Card Dummy | MCP-240-00096-0N | $ 33.50 | 0 | SC747B GPU / Add-on Card Dummy Assembly (2 Slots)-Single Pack | ||
| Rear Exhaust Fan | MCP-320-00046-0N-KIT | $ 51.50 | 0 | Rear fan kit (8.2K RPM fan) for SC747B, 835X, 836BH | ||
| Rear Exhaust Fan | MCP-320-00047-0N-KIT | $ 51.50 | 0 | Rear fan kit (5K RPM fan) for SC745B, 835X, 836BH | ||
| Peripheral Drive(s) | DVM-LITE-DVDRW24-HBT | $ 44.00 | 0 | BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE PBF | ||
| HDD Tray | MCP-220-00080-0B | $ 26.50 | 0 | Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
