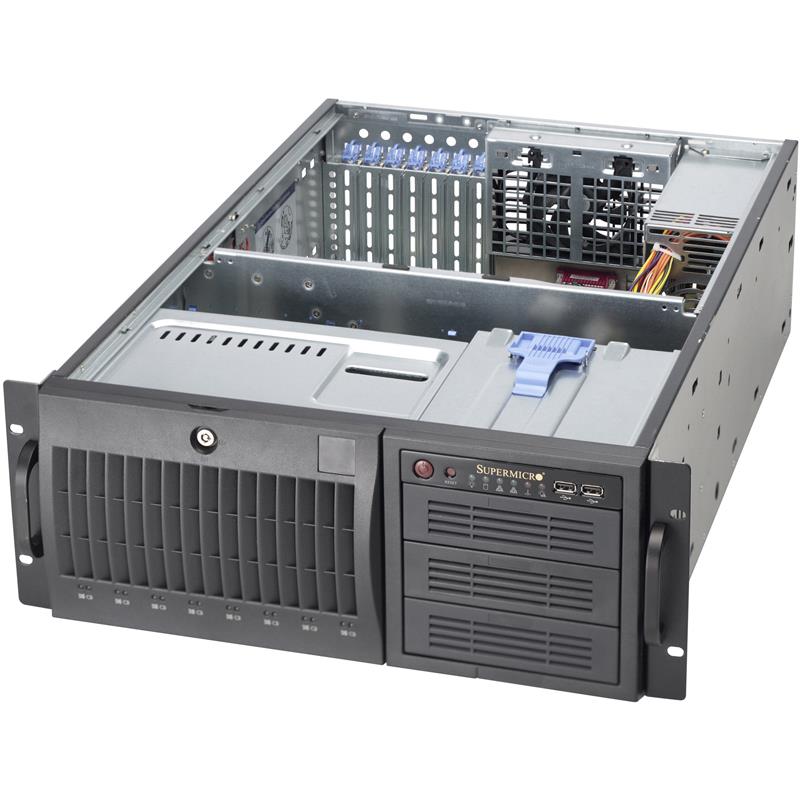

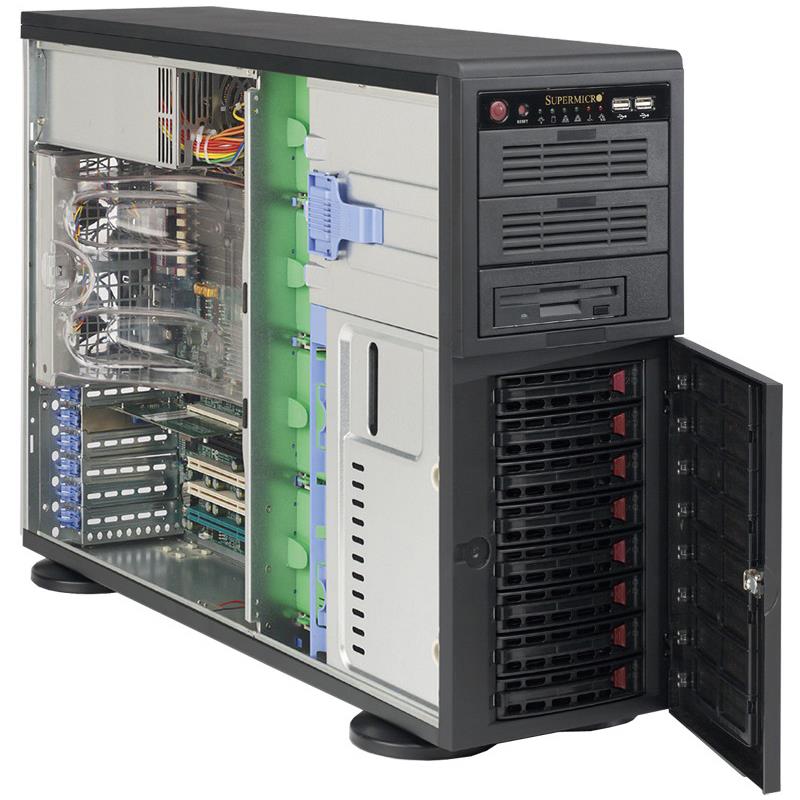

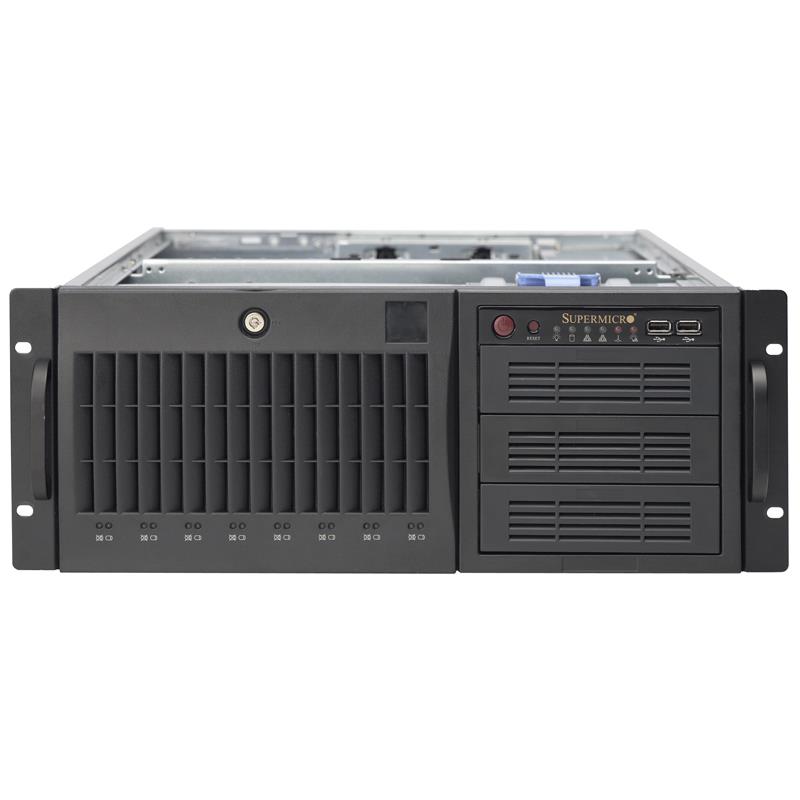

- (OK TO ACTIVE IF NECESSARY, LAST UPDATE 7/7/2023 - REMOVE THIS PART) Supermicro CSE-743TQ-865B Tower/4U Rack w/ 865W Power Supply
(OK TO ACTIVE IF NECESSARY, LAST UPDATE 7/7/2023 - REMOVE THIS PART) Supermicro CSE-743TQ-865B Tower/4U Rack w/ 865W Power Supply
Tower / 4U Rack w/ 865W Power Supply w/ PFC, 80 Plus Certified for up to E-ATX 12in x 13in maximum size Motherboard - Includes 8x 3.5in SAS / SATA Hot-Swap Drive Bays, 2x 5.25in Peripheral Drive Bays, 1x 5.25in for Floppy Drive, 7x FH/FL PCI expansion slots, SAS/SATA HDD Backplane w/ AMI MG9072 (Black)
This product is no longer available.
1. 8x 3.5" SAS/SATA Backplane for Hot-Swappable Drives
2. Front HDD Door Lock & Side Panel Intrusion Switch
3. Front I/O Ports: 2x USB 2.0
4. 4x 8cm (5000 rpm) PWM Cooling Fans
5. 4U / Full Tower Chassis Supports max. Motherboard, Sizes E-ATX 12" x 13"/ATX/Micro ATX
6. 865W 80-Plus Certified High-Efficiency Power Supply
7. 3x 5.25" External HDD Drive Bays & 8x 3.5" Hot-Swappable HDD Drives
Extra Specifications for (OK TO ACTIVE IF NECESSARY, LAST UPDATE 7/7/2023 - REMOVE THIS PART) Supermicro CSE-743TQ-865B Tower/4U Rack w/ 865W Power Supply
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Unit Identification (UID) LED | |
| Power Status LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| Fan Fail/System Over Heat LED | ||
| Ports | 2x USB 2.0 Port(s) | |
| Power Supply | ||
| Certification | Certified | |
| Power Supply | PS2/ATX 865W Multi-Output Power Supply with redundant cooling fan and SMBus | |
| Power Efficiency | 88% | |
| Total Output Power and Input | 865W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 185 x 150 x 86 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 1A / Min: 0A | |
| +12V | Max: 70A / Min: 1A (100Vac - 240Vac) | |
| +5V | Max: 30A / Min: 0.3A | |
| +3.3V | Max: 30A / Min: 0.3A | |
| +5Vsb | Max: 6.5A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 4U chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX | |
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Dimensions | ||
| Height | 17.8" (452 mm) | |
| Width | 7" (178 mm) | |
| Depth | 25.5" (647 mm) | |
| Net Weight | 53 lbs (24.04 kg) | |
| Gross Weight | 56 lbs (25.4 kg) | |
| Packaging (W x H x L) | 24.6" (625 mm) x 14" (356 mm) x 31.3" (795 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8 x 3.5" hot-swap SAS/SATA drive bay with SGPIO | |
| Backplane | ||
| Backplane | 743 SAS BACKPLANE W/AMI MG9072 | |
| Peripheral Drives | ||
| Peripheral Drives | 90 degree rotatable drive cage | |
| 3 x standard 5.25" drive bay | ||
| Systems Cooling | ||
| Fans | 4 x 5000 RPM Hot-swap PWM Cooling Fans | |
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
