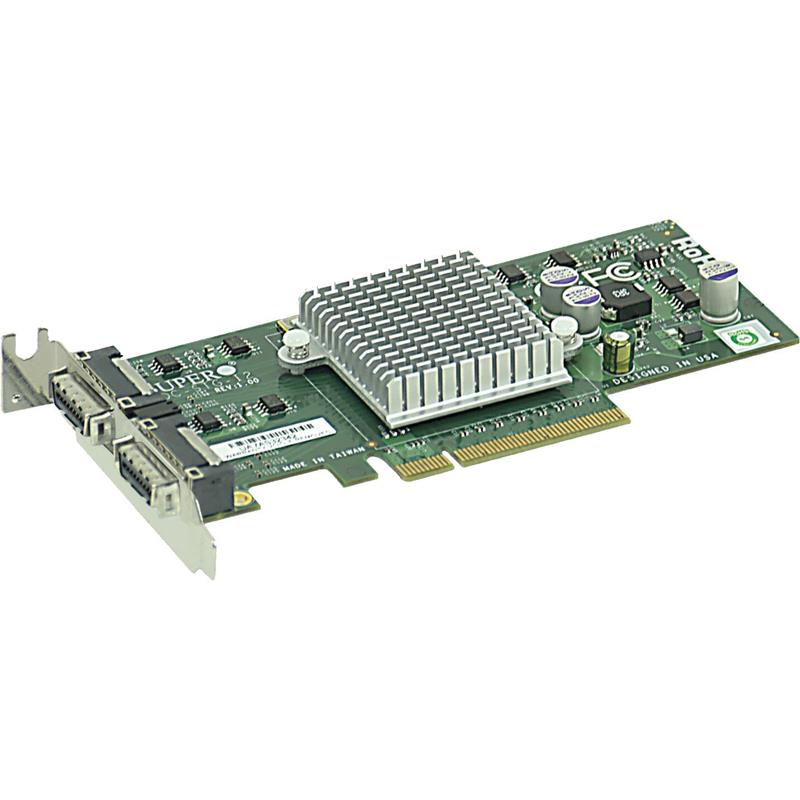

- Supermicro AOC-STG-I2 2-Port 10 Gigabit CX4 PCI-E x8 Ethernet Card
Supermicro AOC-STG-I2 2-Port 10 Gigabit CX4 PCI-E x8 Ethernet Card
• RoHS
• Dual-port
• Low-Profile
• Energy-efficient
2-Port 10 Gigabit CX4 PCI-E x8 Ethernet Card - Low-Profile, RoHS Compliant 6/6, PB-Free (OEM, Bundled with Supermicro System ONLY)
• iSCSI boot
• Low-latency interrupts
• Operating temperature 0-55C
• OS Support: Windows, Linux, VMWare
• Energy-efficient design (maximum 6.5W)
• Preboot eXecution Environment (PXE) support
• Dual-port Intel 82598EB with two CX4 connectors
• PCI-E x8 (PCI-e Gen 2 Compatible) to maximize performance
• 16 Virtual Machine Device queues (VMDq) for virtualized environment
• Intel I/O Acceleration Technology (I/O AT) for improved CPU utilization
• Direct Cache Access (DCA) to eliminate cache misses and reduce CPU load
• Simple Network Management Protocol (SNMP) and Remote Network Monitoring (RMON) statistic counters
• Tx/Rx, IP, TCP, and UDP checksum offloading (IPv4, IPv6) capabilities to increase throughput and lower processor utilization
Extra Specifications for Supermicro AOC-STG-I2 2-Port 10 Gigabit CX4 PCI-E x8 Ethernet Card
| Main Specifications | ||
| Cable Type | Network adapter | |
| Form Factor | Plug-in card - low profile | |
| Interface (Bus) Type | PCI Express x8 | |
| PCI Specification Revision | PCI-X 2.0 | |
| Storage Controller | ||
| Processor | 1 x 82598EB - Intel | |
| Connectivity Technology | Wired | |
| Data Transfer Rate | 10 Gbps | |
| Networking | ||
| Data Link Protocol | 10 Gigabit Ethernet | |
| Network / Transport Protocol | TCP/IP, UDP/IP, iSCSI | |
| Port Quantity | 2 ports | |
| Remote Management Protocol | SNMP, RMON | |
| Status Indicators | Link activity, port transmission speed | |
| Cabling Type | Ethernet 10GBase-CX4 | |
| Environmental Parameters | ||
| Max Operating Temperature | 131 F | |
| Min Operating Temperature | 32 F | |
| Expansion / Connectivity | ||
| Compatible Slots | 1 x PCI Express x8 - low-profile | |
| Interfaces | 2 x network - Ethernet 10GBase-CX4 | |
| Software / System Requirements | ||
| OS Required | Linux, Microsoft Windows 2000, Microsoft Windows XP, Microsoft Windows Server 2003, VMware ESX Server | |
| Miscellaneous | ||
| Cables Required | InfiniBand 4x DDR cable (converts CX4 to optical). Maximum length 100 meters | |
| CX4 copper-based cable. Maximum length 15 meters | ||
| Compatible UIO Supermicro Motherboards | Supports all motherboards with a PCI-e x8 slot | |
| Compatible UIO Supermicro Servers | Supports all servers with a low-profile or full-height expansion slot | |
| RoHS | RoHS Compliant 6/6, Pb Free | |
