• Chassis supports MB sizes Micro-ATX
• 2x 2.5 hot-swap SAS/SATA HDD Bays
• 200W Power Supply with 80plus w/20pin
• Support Xeon 3000 65W / 3400 series 45W

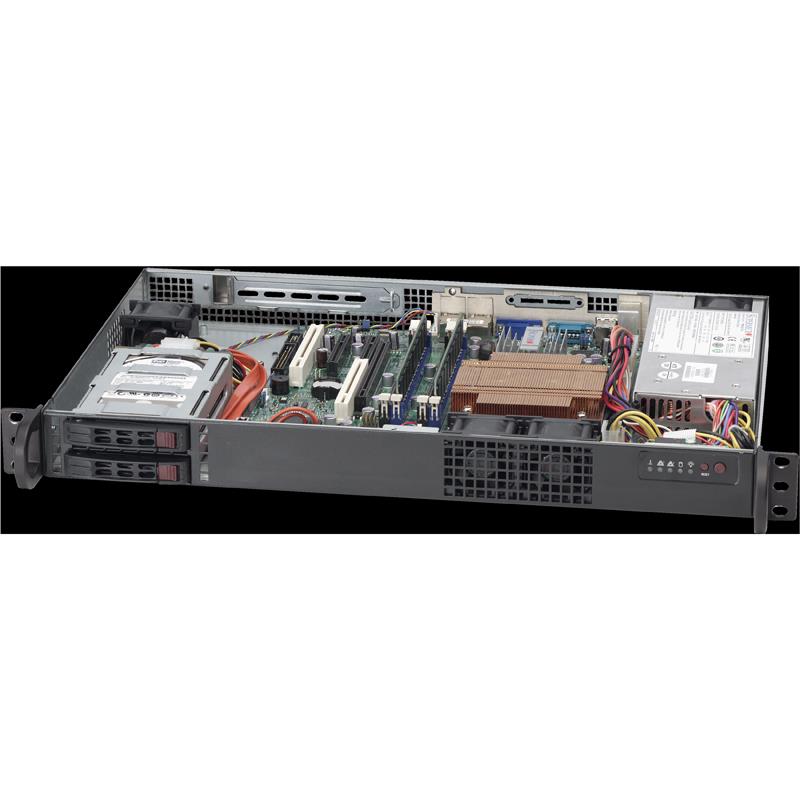

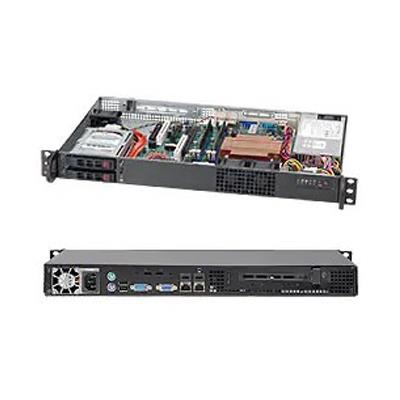

Rackmount 1U w/ 200W Power Supply, for Single Core 2 Duo, Xeon 3000 Series (up to 65W), Intel Celeron 400 Series, Intel Atom 200/300 Series Processors - Includes : 2x 2.5in Hot-Swap SAS/SATA Drive Bays - (Black)
• 200W High-Efficiency Power Supply
• Low noise level
• 2x 2.5 hot-swap SAS/SATA HDD Bays
• 1x Low-profile, Half-length PCI Expansion Slot
• 3x 8500 RPM Cooling Fan
• Power Switch, Reset Button & 5 LED Indicators
| Main Specifications | ||
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 11.3" (287 mm) | |
| Color | Black | |
| Form Factor | 11.3"-Depth Mini 1U chassis support for maximum motherboard size - 9.6" x 9.6" | |
| Weight | 12 lbs (5.0kg) | |
| Processor | ||
| Compatible Processors | Single processor support: Intel Core 2 Duo, Xeon 3000 Series (up to 65W), Intel Celeron 400 series, Intel Atom 200/300 series | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x low-profile PCI expansion slot (Optional) - (Riser Card Required, use the full-height I/O bracket on the low-profile add-on card to install) | |
| Drive Bays | ||
| Hot-swap | 2x 2.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED | |
| System Cooling | ||
| Cooling Components | 1x Air Shroud | |
| Fans | FAN-0106L4 | |
| 3x 8500 RPM Cooling Fan | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | |
| Operating Temperature Range 5C - 35C (41F - 95F) | ||
| Non-Operating Temperature Range -40C - 70C (-40F - 158F) | ||
| Operating Relative Humidity Range 8% - 90% (non-condensing) | ||
| Power Supply | ||
| Certification | 80 PLUS Certified | |
| Power Supply | 200W Low Noise High-Efficiency (85%) AC-DC power supply with PFC | |
| PWS-201-1H | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC | |
| Canada - CUL listed | ||
| Germany - TUV Certified | ||
| Europe/CE Mark | ||
| EN 60950/IEC 60950-Compliant | ||
| CCC Certification | ||
| Parts List - (Items Included) | ||
| Backplane | BPN-SAS-510T | |
| Drive Trays | MCP-220-00047-0B | |
| Parts List | ||
| Cables | CBL-0236L, CBL-0061L | |
| Standard Parts List | ||
| Chassis | CSE-510T-200B | |
| Front Panel | MCP-280-81301-0N | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
