• 4x hot-swap 2.5 SAS/SATA HDD
• 3x 4cm 4-pin PWM Fans (per Node)
• 27.75 Depth 1U Rackmount Chassis
• Supports 2 systems nodes in a 1U form factor

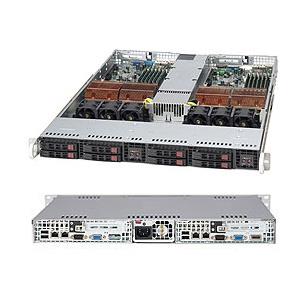

Rackmount 1U with two system Nodes for up to Twin Intel Dual Xeon / AMD Dual Opteron, w/ one 1U 1200W Power Supply - Includes Dual 4x 2.5in SAS/SATA Hot-swap Drive Bays, Twin LP Expansion Slots, Rails Kit (Black)
• Low Profile expansion slot
• 3x 4cm counter-rotating fans PWM
• 4x hot-swap 2.5 SAS/SATA HDD
• Supports twin motherboard size up to: 6.8 (173mm) x 18 (457mm)
• 1200W high-efficiency power supply (80PLUS Gold Level Certified)
• Supports two systems (nodes) in a 1U form factor.
| Main Specifications | ||
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 27.75" (705 mm) | |
| Color | Black | |
| Form Factor | 27.75" Depth 1U Rackmount Chassis | |
| Max Mainboard Size | Supports twin motherboard of size up to: 6.8" (173mm) x 18" (457mm) | |
| Weight | 29 lbs (13.2kg, Loaded system) | |
| Processor | ||
| Compatible Processors | Supports Twin motherboards with dual, single Intel Xeon / AMD Opteron processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x Low Profile expansion slot | |
| Drive Bays | ||
| Hot-swap | 4x Hot-swap 2.5" SAS / SATA HDD - SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, System overheat warning LED | |
| System Cooling | ||
| Fans | 3x 4cm 4-pin PWM fans | |
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Relative Humidity Range 5% - 95% (non-condensing) | |
| Operating Temperature Range 5C - 35C (41F - 95F) | ||
| Non-Operating Temperature Range -40C - 70C (-40F - 158F) | ||
| Operating Relative Humidity Range 8% - 90% (non-condensing) | ||
| Power Supply | ||
| Certification | 80PLUS Gold Certified | |
| Power Supply | PWS-1K21P-1R | |
| 1200W high-efficiency power supply with PMBus | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified | |
| Standard Parts List | ||
| Accessory | MCP-280-80901-0N | |
| Chassis | CSE-809TS-1200BP | |
| Power Distributor | PDB-PT808-S20 | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-18008-0N | |
| Backplane | BPN-SAS-809T | |
| Drive Trays | MCP-220-00047-0B | |
| Mounting Rails | CSE-PT51L | |
| Parts List | ||
| Cables | CBL-0087, CBL-0303L, CBL-0207L, CBL-0226L, CBL-0227L, CBL-0228L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
