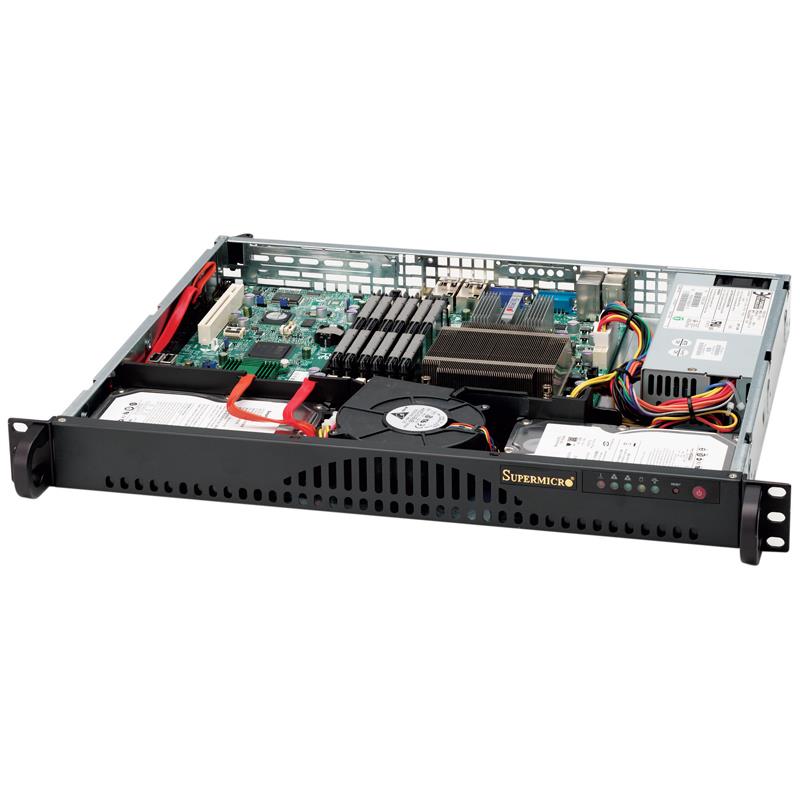

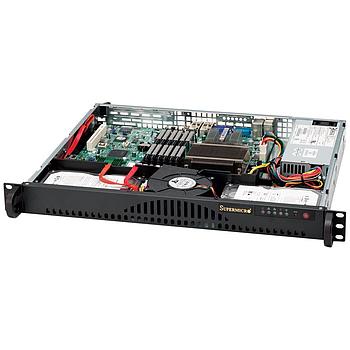

  2. Supermicro CSE-512L-200B Server Chassis 1U Rackmount
Supermicro CSE-512L-200B Server Chassis 1U Rackmount
Rackmount 1U with 2 Internal Drive Bays

Supermicro CSE-512L-200B Server Chassis 1U Rackmount

• Support motherboard size: 12 x 9.6 ATX
• 2x 3.5 fixed drive bay; 1x 10cm blower Fan
• 1U chassis w/ 200W power supply w/ 20pin
• SAS or enterprise SATA HDD recommended

Rackmount 1U w/ 200W Power Supply, for Single Intel or AMD Processor - Includes : 2x 3.5in Internal Drive Bays - Rails Kit and Heatsink are optional (Black)

$ 118.50$ 118.50118.5USD

$ 118.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • 260W Power Supply
    • 2x 3.5 Internal Drive Bays
    • 1x 10cm Blower Fan
    • 1x I/O Expansion Slot
    • 2x Rear USB 2.0 Ports
    • Power Switch, Reset, and 5x LED Indicators

    Extra Specifications for Supermicro CSE-512L-200B Server Chassis 1U Rackmount

    Main Specifications
    Dimensions (WxDxH)Height 1.7" (43 mm) x Width 16.8" (426 mm) x Depth 14" (356 mm)
    ColorBlack
    Form Factor14" Mini 1U chassis support for max. motherboard size - 12" x 9.6" ATX
    Weight11 lbs (5kg)
    Processor
    Compatible ProcessorsSupports single Intel / AMD processor
    Expansion / Connectivity
    Expansion Slots Total (Free)1x full-height half-length expansion slot (Riser Card Required)
    Drive Bays
    Internal2x 3.5" internal drive bays - SAS or enterprise SATA HDD only recommended
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDsPower LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED
    System Cooling
    Fans1x 10cm 3,800 RPM PWM blower fan
    FAN-0038L4
    Operating Environment (System)
    Operating Temperature RangeNon-Operating Relative Humidity Range 5% - 95% (non-condensing)
    Operating Temperature Range 5C - 35C (41F - 95F)
    Non-Operating Temperature Range -40C - 70C (-40F - 158F)
    Operating Relative Humidity Range 8% - 90% (non-condensing)
    Power Device
    Power Provided200W Low Noise AC-DC power supply with PFC
    Regulatory (Power Supply)
    Power Supply Safety / EMCEurope/CE Mark
    EN 60950/IEC 60950-Compliant
    USA - UL listed, FCC
    Canada - CUL listed
    Germany - TUV Certified
    Standard Parts List
    AccessoryMCP-230-00009-00, MCP-290-00009-01, CSE-PT0119
    ChassisCSE-512L-200B
    Front PanelMCP-210-00005-01, MCP-280-51201-0N
    Parts List
    CablesCBL-0049L, CBL-0260L
    I/O ShieldMCP-260-00024-0N
    Power Supply
    Power SupplyPWS-202-1H

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
