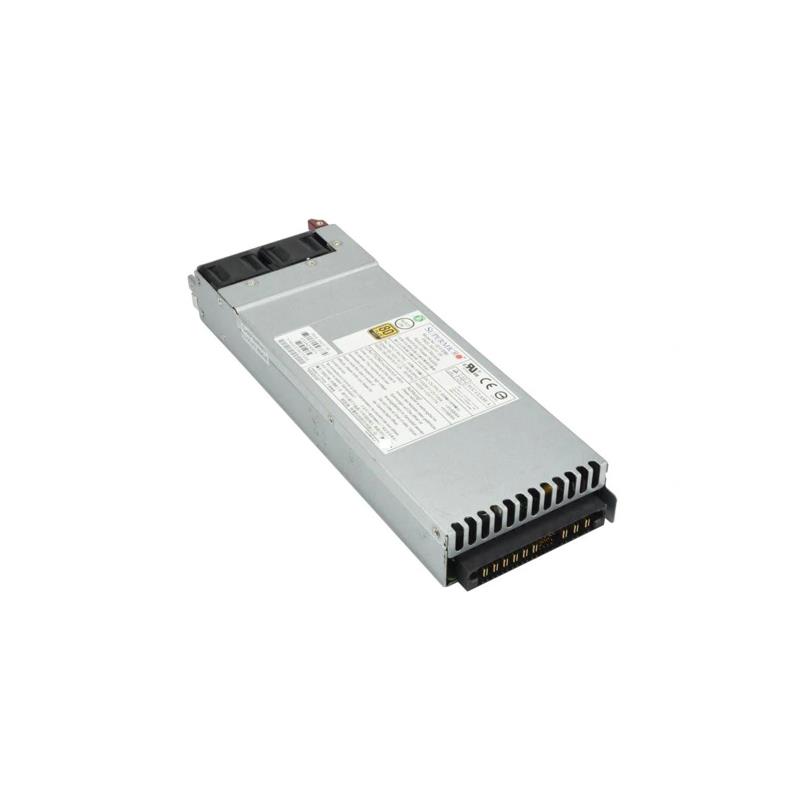

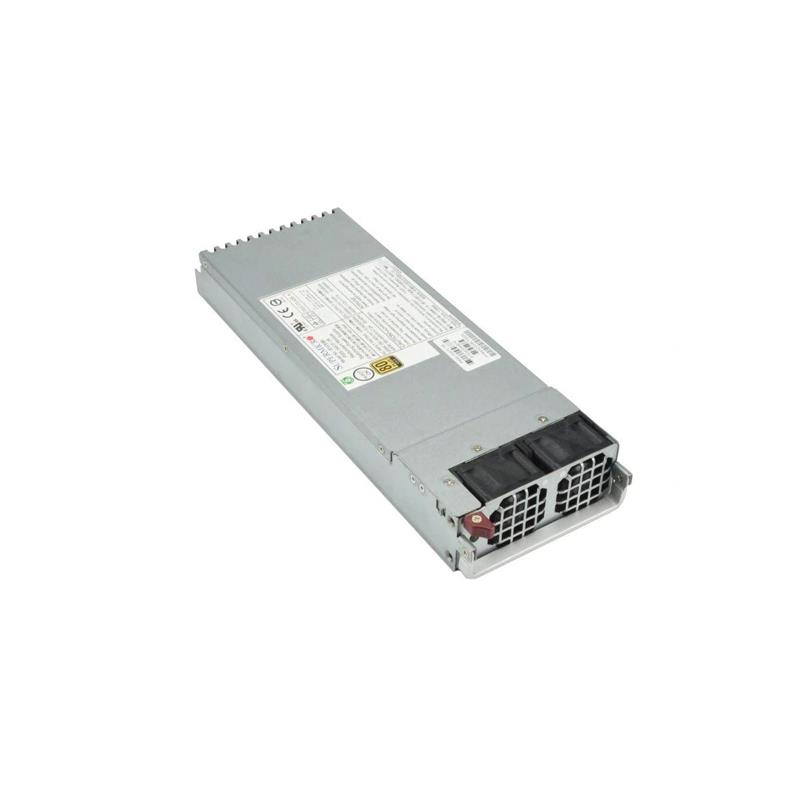

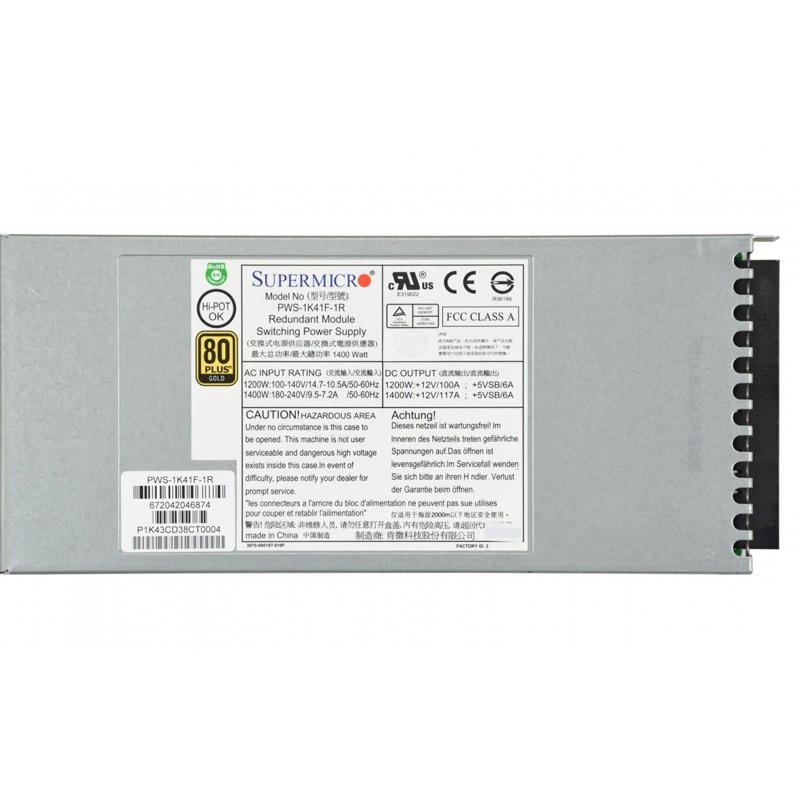

Supermicro PWS-1K41F-1R Power Supply 1400W Gold Level w/ PM Bus
• Designed for Supermicro 1U Systems
• Front Loaded with AC inlet connected externally
• Supplying 1400W output; power at 92% efficiency
• LED keep you informed on normal/abnormal condition
Power Supply 1400W Gold Level w/ PM Bus and WX106MM
The Supermicro PWS-1K41F-1R is an 80 Plus Gold power supply capable of supplying 1400W output power at 92% efficiency.
Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages.
Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems.
This power supply is designed to not only provide you reliable power to your Supermicro server but also protect it from over-voltage, over-current, and short-circuiting via protective circuitry embedded into the unit.
Rest easy knowing your hardware will be up and running with a mean-time between failure (MTBF) of greater than 250,000 hours and an LED indicator to keep you informed on normal/abnormal conditions for your PSU.
This power supply is redundant to safeguard your system from power failure and allows for hot-swap replacement to eliminate system downtime.
All materials contained comply with RoHS requirements and are certified by Supermicro.
Extra Specifications for Supermicro PWS-1K41F-1R Power Supply 1400W Gold Level w/ PM Bus
| Main Specifications | ||
| Device Type | Power supply | |
| Dimension(s) (WxDxH) | 326 x 104 x 40 mm | |
| Type | Module | |
| Power Device | ||
| Power Provided | 1400W | |
| Efficiency | High-efficiency with PMBus | |
| Power Supply | ||
| Certification | 80PLUS Gold Certified | |
| Miscellaneous | ||
| Compatible Servers | SYS-6016GT-TF-TC1, SYS-6016GT-TF-TC2, SYS-6016GT-TF-TM1, SYS-6016GT-TF-TM2, SYS-8026B-6RF, SYS-8026B-TRF | |
| Compatible Chassis | CSE-748TQ-R1400B, CSE-818TQ-1400LPB, CSE-828TQ+-R1400LPB, CSE-828TQ-R1400LPB | |
| Compliant Standards | RoHS / REACH | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
