- Supermicro PWS-202-1H 1U 200W Power Supply with Standard Harness Output

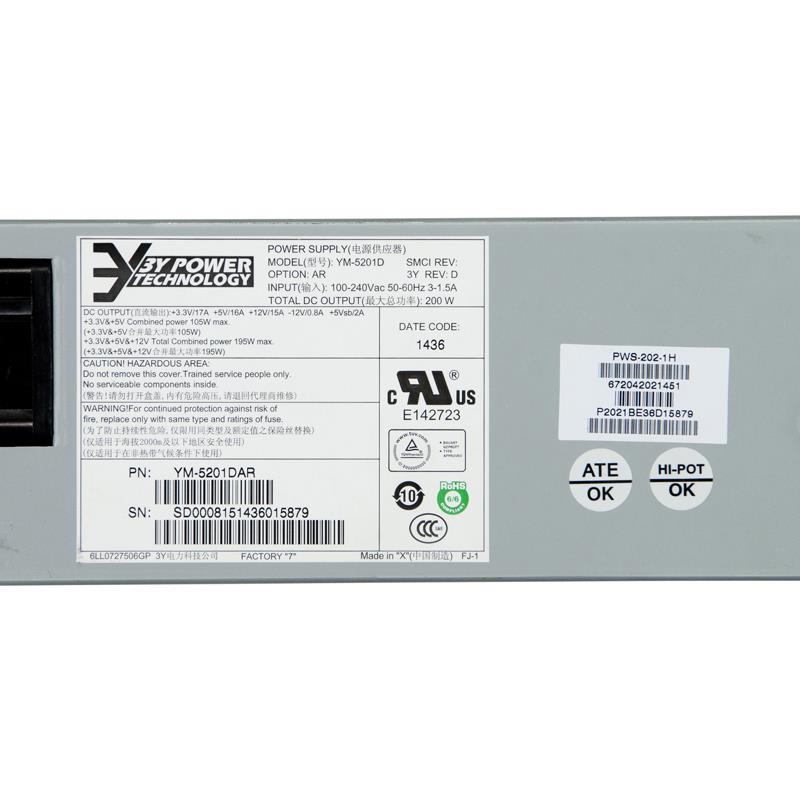

Supermicro PWS-202-1H 1U 200W Power Supply with Standard Harness Output
• Designed for Supermicro 1U Servers
• 200W output power at 82% efficiency
• Quiet fan to keep it cool under heavy loads
• RoHS requirements and are certified by Supermicro
Power Supply 1U, 200W, with Standard Harness Output LC
The Supermicro PWS-202-1H is capable of 200W output power at 82% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your Supermicro 1U server but also protects it from over voltage, over current and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and are certified by Supermicro.
Cables Included:
1x 20 Pin ATX (Motherboard)
1x 8 Pin 12V (CPU)
2x 4 Pin Legacy HDD
2x SATA Power Connectors
Extra Specifications for Supermicro PWS-202-1H 1U 200W Power Supply with Standard Harness Output
| Main Specifications | ||
| Device Type | Power supply | |
| Form Factor | 1U - Internal | |
| Dimensions (WxDxH) | 76 x 40.3 x 192 mm | |
| Power Supply | ||
| +12V | 15.0 Amp | |
| +3.3V | 17.0 Amp | |
| +5V | 16.0 Amp | |
| +5V Standby | 2.0 Amp | |
| -12V | 0.8 Amp | |
| AC Voltage | 100 - 240V, 50-60Hz, 3-1.5 Amp Max | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | Germany - TUV Certified | |
| USA - UL listed, FCC | ||
| Canada - CUL listed | ||
| EN 60950/IEC 60950-Compliant | ||
| Europe/CE Mark | ||
| Power Device | ||
| Power Provided | 200W | |
| PCF | Yes | |
| Power Efficiency | ||
| Energy Efficient | 82% Peak | |
| Compatible Chassis | ||
| Compatible Chassis | CSE-502L-200B, CSE-503L-200B, CSE-510L-200B, CSE-512L-200B | |
| Miscellaneous | ||
| Compatible Systems | SYS-5017C-LF, SYS-5018A-MHN4, SYS-5018A-MLHN4, SYS-5018A-MLTN4 | |
| Environmental Compliance | RoHS and REACH compliant, details available upon request | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
