| Main Specifications |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 19.85" (503 mm) |
| Color | Black |
| Form Factor | 1U chassis support for max. motherboard size - 12" x 10" ATX |
| Weight | 27 lbs (12.2kg) |
| Processor |
| Compatible Processors | Dual Intel Xeon Processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1x full-height, half-length PCI expansion slot (Riser Card Required) |
| Peripheral Drives |
| DVD-ROM | Slim DVD-ROM drive (optional) |
| Drive Bays |
| Hot-swap | 4x 3.5" Hot-swap SAS / SATA drive bays - SAS or enterprise SATA HDD only recommended |
| Front Panel |
| Buttons | Power On/Off button / System Reset button |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED |
| Networking |
| Ports | 2x Front USB Ports / 1x Serial COM Port |
| System Cooling |
| Fans | 4x 4cm 4-pin PWM fans |
| FAN-0065L4, Fan tray: MCP-320-00007-01 |
| Operating Environment (System) |
| Operating Temperature Range | Non-Operating Relative Humidity Range 5% - 95% (non-condensing) |
| Operating Temperature Range 5C - 35C (41F - 95F) |
| Non-Operating Temperature Range -40C - 70C (-40F - 158F) |
| Operating Relative Humidity Range 8% - 90% (non-condensing) |
| Power Supply |
| Certification | 80 PLUS Gold Certified |
| Power Supply | 600W AC multi output power supply w/ PFC |
| PWS-601-1H |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 1x SAS / SATA Backplane |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, Europe/CE Mark, EN 60950/IEC 60950-Compliant |
| Parts List |
| Cables | CBL-0049L / CBL-0068 / CBL-0160L / CBL-0186L |
| I/O Shield | MCP-260-00024-0N |
| Standard Parts List |

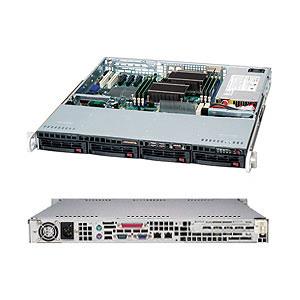

| Chassis | CSE-813MTQ-600CB |
| Front Tray | CSE-PT40(B) |
| Hard Drive Trays | CSE-PT39(B) / BPN-SAS-815TQ |
| Peripheral Drive Bay | CSE-PT93-B0 / CSE-PT94-B0 |
| Parts List - (Items Included) |
| Mounting Rails | CSE-PT52 |
