• 560W PS; Gold Level Certified
• Optimized for DP motherboards
• 8x Hot-swap 2.5 SAS/SATA HDD tray
• Supports dual; single Intel / AMD processors

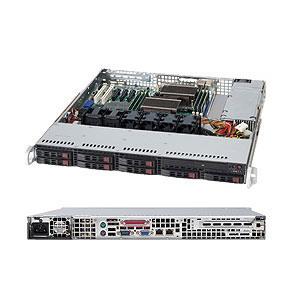

Rackmount 1U with 560W Power Supply, for Intel / AMD Dual CPUs Motherboard - 8x 2.5in SAS / SATA Hot-Swap Drive Trays, 1U SAS/SATA Backplane w/ SES2, Rails Kit - SC113TQ-563CB (Black)
• 4x 40x56mm counter-rotating
• Optimized for DP motherboards
• 8x Hot-swap 2.5 SAS/SATA HDD tray
• Expansion slots: 1x Full-height & Full-length
• Supports motherboard sizes 12 x 13 E-ATX & 13.68 x 13
• 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified
| Main Specifications | ||
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 23.5" (597 mm) | |
| Color | Black | |
| Form Factor | 23.5" Depth 1U Rackmount Chassis - support for motherboard sizes of 12" x 13" and 13.68" x 13" | |
| Weight | 35 lbs (16kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x Full-height & Full-length PCI expansion slot | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | Slim DVD-ROM drive | |
| Drive Bays | ||
| Hot-swap | 8x Hot-swap 2.5" SAS / SATA HDD tray - SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button, UID button | |
| LEDs | Power status LED, HDD activity LED, 2x Network activity LEDs, Universal Information (UID) LED | |
| System Cooling | ||
| Fans | 4x 40x56mm Counter-rotating PWM fans | |
| FAN-0086L4 | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 10 - 35C (50 - 95F) | |
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) | ||
| Humidity Range 8 - 90% non-condensing | ||
| Non-Operating Humidity Range 5 - 95% non-condensing | ||
| Power Supply | ||
| Certification | 80PLUS Gold Certified | |
| Power Supply | 560W AC power supply w/ PFC (24-pin) | |
| PWS-563-1H, MCP-250-00008-0N | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane with SES2 | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | Germany - TUV Certified | |
| USA - UL listed, FCC | ||
| Canada - CUL listed | ||
| CCC Certification | ||
| EN 60950/IEC 60950-Compliant | ||
| Europe/CE Mark | ||
| Standard Parts List | ||
| Accessory | Tray MCP-290-00036-0B | |
| Chassis | CSE-113TQ-563CB | |
| Front Panel | MCP-280-00017-0N | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-18001-0N | |
| Backplane | BPN-SAS-113TQ, MCP-220-00047-0B | |
| Mounting Rails | MCP-290-00043-0V | |
| Parts List | ||
| Cables | CBL-0157L, CBL-0191L, CBL-0227L, CBL-0206L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advanced replacement (doa) |
| Provider: | Supermicro |
| Phone No.: | 305-640-0300 |
| E-mail: | returnservices@wiredzone.com |
| URL: | Click here for Manufacturer Website |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
