• 920W Redundant power supplies
• 16x 2.5 Hot-swap SAS/SATA HD Bays
• Supports dual; single Intel/AMD processors
• Chassis support motherboard 13.68 x 16.5

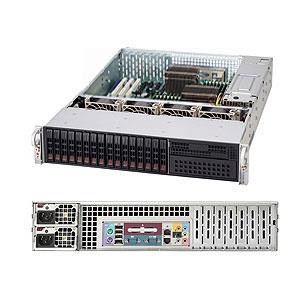

Rackmount 2U w/ Redundant 920W 80 Plus Platinum Level Certified Power Supply w/ PMBus and I2C, for Motherboard up to 13.68in x 16.5in maximum size - 16x 2.5in SAS/Sata Hot-Swap Drive Trays, 1x 5.25in Peripheral Drive Bay, 7x Low-Profile Slots, Rails Kit - (SC219A-R920LPB) Black
• 1x Slim DVD-ROM Drive
• 1x Front USB + COM tray (option)
• 1x 5.25 drive bay
• 7x Low-profile AOC expansion slots
• Power Switch and 6x LED Indicators
• 16x 2.5 Hot-swap SAS/SATA HD Bays
• 920W Redundant High-efficiency 80PLUS Platinum Level (94%+) Power Supply
• 4x 8cm high-performance fans (optional 3x 8cm fans support cooling redundancy for E-ATX boards)
| Main Specifications | ||
| Device Type | SuperChassis 219A-R920LPB | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 26.93" (684 mm) | |
| Color | Black | |
| Form Factor | 2U chassis support for max. motherboard size - 13.68" x 16.5" | |
| Weight | 52 lbs (23.6 kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7x low-profile expansion slots | |
| Drive Bays | ||
| Hot-swap | 16x 2.5" SAS / SATA Hot-swap drive trays - SAS or enterprise SATA HDD only recommended | |
| Peripheral Bays | 1x 5.25" peripheral Drive Bay | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED | |
| System Cooling | ||
| Fans | 4x 80mm high-performance fans - Optional extra 3x 80mm fans support cooling redundancy for E-ATX motherboards | |
| FAN-0099L4 | ||
| Miscellaneous | ||
| Applications | Chassis Intrusion switch | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | 1x Slim DVD-ROM Drive | |
| 1x Front USB + COM tray (option) | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 2U Direct Attached Backplane, features: 3Gb/6Gb support, SES-2 Enclosure Management Support, SAS/SATA support, Four SFF 8087 connectors | |
| Operating Environment (System) | ||
| Operating Temperature Range | Non-Operating Temperature Range -40 - 70C (-40 - 158F) | |
| Humidity Range 8 - 90% non-condensing | ||
| Non-Operating Humidity Range 5 - 95% non-condensing | ||
| Operating Temperature Range 10 - 35C (50 - 95F) | ||
| Power Supply | ||
| Certification | 80PLUS Platinum Certified | |
| Power Supply | 920W high-efficiency (94%+) AC-DC Redundant power supplies with PMBus and I2C | |
| PWS-920P-1R, PDB-PT213-S8824 | ||
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification | |
| Standard Parts List | ||
| Accessory | MCP-290-00007-01, MCP-420-21901-0N | |
| Chassis | CSE-219A-R920LPB | |
| Rear Window | MCP-240-82903-0N | |
| Parts List - (Items Included) | ||
| Backplane | BPN-SAS-213A | |
| Drive Trays | MCP-220-00023-01, MCP-220-00047-0B, MCP-290-00079-0B | |
| Mounting Rails | MCP-290-00053-0N | |
| Parts List | ||
| Cables | CBL-0071 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
