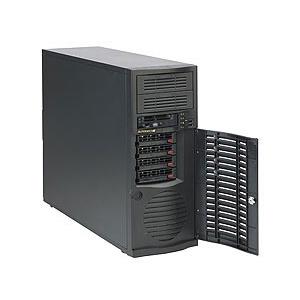

- Supermicro CSE-733T-500B Mid-Tower Chassis w/ 500W Power Supply
Supermicro CSE-733T-500B Mid-Tower Chassis w/ 500W Power Supply
Reliable Power with 500W Bronze level Power Supply
Compatible with Dual & Single Intel and AMD processors
Expandable Design with 7 full-height & full-length expansion slot
SuperChassis 733TQ-500B supporting motherboard sizes: E-ATX and ATX
Mid-Tower Chassis w/ 500W High-Efficiency Power Supply w/ PFC, for motherboard up to 12in x 13in E-ATX - 4x 3.5in SAS / Sata Hot-Swap Drive Bays, 2x 5.25in Peripheral Drive Bays, 1x 3.5in Drive Bay, 7x Full-Height / Full-Length I/O Expansion Slots (Black)
1. 4x 3.5" SAS/SATA Backplane for Hot-Swappable Drives
2. Front HDD Door Lock
3. Front I/O Ports: 2x USB 2.0
4. 1x 9cm Front (4200 rpm) PWM Fan
5. Mid-Tower Chassis Supports max. Motherboard, Sizes: E-ATX 12 x 13/ATX/Micro ATX
6. 500W Bronze Level Certified High-Efficiency Power Supply
7. 2x 5.25" External HDD Drive Bays & 4x 3.5" HDD Drive Bays
Extra Specifications for Supermicro CSE-733T-500B Mid-Tower Chassis w/ 500W Power Supply
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | 1 Network Activity LEDs | |
| Power LED | ||
| HDD activity LED | ||
| System Overheat LED | ||
| Ports | 2x USB 2.0 Port(s) | |
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Bronze Certified | |
| Power Supply | PS2/ATX 500W Multi-output power supply with 12CM fan, Bronze level | |
| Power Efficiency | 88% | |
| Total Output Power and Input | 500W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 140 x 150 x 86 mm | |
| Output Type | 24pin ATX | |
| -12V | Max: 0.5A / Min: 0A | |
| +12V | Max: 17A / Min: 1A (100Vac - 240Vac) | |
| Max: 17A (100Vac - 240Vac) | ||
| Max: 18A (100Vac - 240Vac) | ||
| +5V | Max: 20A / Min: 0.5A | |
| +3.3V | Max: 15A / Min: 0.5A | |
| +5Vsb | Max: 3A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CE/EMC | |
| TUV/CB | ||
| UL/CUL | ||
| FCC class B | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | Mid-tower chassis - supports for maximum motherboard sizes: 12" x 13" E-ATX and ATX | |
| Dimensions | ||
| Height | 16.8" (426 mm) | |
| Width | 7" (178 mm) | |
| Depth | 20.9" (531 mm) | |
| Net Weight | 37 lbs (16.78 kg) | |
| Gross Weight | 39 lbs (17.69 kg) | |
| Packaging (W x H x L) | 24.2" (615 mm) x 11.8" (300 mm) x 26.4" (671 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 4 x 3.5" hot-swap SAS/SATA | |
| Backplane | ||
| Backplane | SATA back panel for SC733T W/O GEM424 | |
| Peripheral Drives | ||
| Peripheral Drives | 1 x 3.5" internal fixed drive bay | |
| 2 x standard 5.25" drive bay | ||
| Systems Cooling | ||
| Fans | 1 x 92mm Front Thermal fan(s) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Fan Kit | FAN-0077L4 | $ 40.00 | 0 | 120X38MM 4-PIN PWM FAN W/HUS FOR SC733 (REV. B) | ||
| Heatsink / Retention | - | 0 | Please refer to our Thermal Components Matrix | |||
| Peripheral Drive(s) | FPD-TEAC-FB | 0 | Black 3.5" floppy drive, TEAC, PBF | |||
| Peripheral Drive(s) | DVM-SONY-DVDRW-HB | 0 | BLACK SONY HALF HEIGHT DVD-RW IDE DRIVE, PBF | |||
| Peripheral Drive(s) | DVM-LITEONFH-DVDRWB | 0 | Black 5.25" IDE DVD-RW, LITEON | |||
| Peripheral Drive(s) | DVM-LITE-DVDRW-HBT | 0 | Black 5.25" SATA DVD-RW, LITEON, PBF | |||
| Peripheral Drive(s) | DVM-LITE-DVD-HBT | 0 | Black 5.25 | |||
| Peripheral Drive(s) | MCP-450-73101-0B | $ 39.00 | 0 | SC731D All-In-One Card Reader 3.5inch | ||
| Drive Trays | MCP-220-73301-0N | $ 26.00 | 0 | 3.5" to 2.5" Converter HDD Tray |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
