• 560W AC power supply w/ PFC (24-pin)
• 2U chassis support for MBs E-ATX; ATX
• 8x 3.5 SAS / SATA Hot-swap drive trays
• Supports dual; single Intel/AMD processors

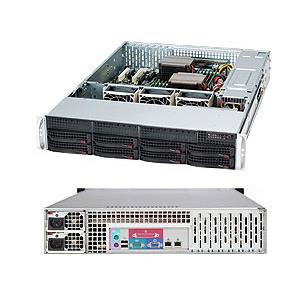

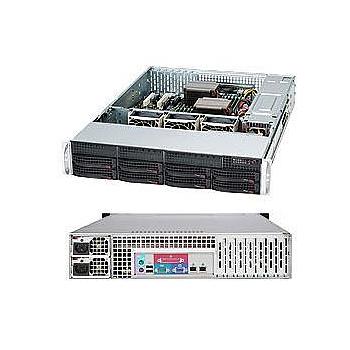

Rackmount 2U Chassis w/ 560W Power Supply w/ PFC, for Motherboard up to 13.68in x 13in E-ATX - 8x 3.5in Hot-Swap SAS / Sata Drive Trays, Optional Slim DVD (or) Slim Floppy Drive, 7 LP I/O Full-Length Expansion Slots, Rails Kit (Black)
• Adjustable Air Shroud
• 2x Fixed 3.5 Drive Bays
• 1x Slim DVD-ROM Drive (Optional)
• 8x 3.5 Hot-swap SAS / SATA Drive Bays
• 1x Serial, 2x USB Front Access I/O (optional)
• 7x Low-profile, Full-length I/O Expansion Slots
• 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified
• Full SES2 support is available with SAS motherboards and other compatible components
| Main Specifications | ||
| Device Type | SuperChassis 825TQ-563LPB | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) | |
| Color | Black | |
| Form Factor | 2U chassis support for motherboard size - 12" x 13", 13.68" x 13" E-ATX and 12" x 10" ATX | |
| Weight | 50 lbs (22.7kg) | |
| Processor Support | ||
| Processor Support | Supports dual, single Intel / AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7x low-profile full-length expansion slots | |
| Drive Bays | ||
| Hot-swap | 8x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED | |
| Networking | ||
| Ports | 2x USB Ports + DB9 COM Port | |
| System Cooling | ||
| Fans | FAN-0094L4 | |
| 3x 80mm 6300 RPM hot-swap PWM fans | ||
| Miscellaneous | ||
| Applications | Chassis Intrusion switch | |
| Peripheral Drives | ||
| DVD-ROM | Slim DVD-ROM drive (optional) | |
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 2U SAS / SATA backplane w/ Enclosure Management | |
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 10 - 35C (50 - 95F) | |
| Humidity Range 8 - 90% non-condensing | ||
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) | ||
| Non-Operating Humidity Range 5 - 95% non-condensing | ||
| Power Supply | ||
| Certification | 80PLUS Gold Certified | |
| Power Supply | 560W AC power supply w/ PFC (24-pin) | |
| PWS-563-1H / CSE-PT0130L | ||
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification | |
| Standard Parts List | ||
| Accessory | MCP-290-00060-0N, MCP-220-00024-0B, MCP-220-82502-0B, MCP-220-00023-01, MCP-290-00007-01, MCP-420-82503-0N | |
| Chassis | CSE-825TQ-563LPB | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-28001-0N | |
| Backplane | BPN-SAS-825TQ | |
| Mounting Rails | MCP-290-00053-0N | |
| Parts List | ||
| Cables | CBL-0157L / CBL-0180L-01 | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
