- Supermicro CSE-825TQ-563LPB Server Chassis 2U Rackmount

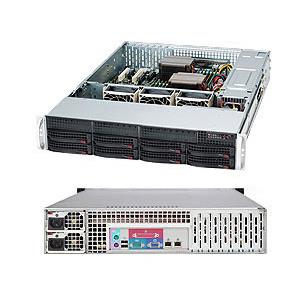

Supermicro CSE-825TQ-563LPB Server Chassis 2U Rackmount
• 560W AC power supply w/ PFC (24-pin)
• 2U chassis support for MBs E-ATX; ATX
• 8x 3.5 SAS / SATA Hot-swap drive trays
• Supports dual; single Intel/AMD processors
Rackmount 2U Chassis w/ 560W Power Supply w/ PFC, for Motherboard up to 13.68in x 13in E-ATX - 8x 3.5in Hot-Swap SAS / Sata Drive Trays, Optional Slim DVD (or) Slim Floppy Drive, 7 LP I/O Full-Length Expansion Slots, Rails Kit (Black)
• Adjustable Air Shroud
• 2x Fixed 3.5 Drive Bays
• 1x Slim DVD-ROM Drive (Optional)
• 8x 3.5 Hot-swap SAS / SATA Drive Bays
• 1x Serial, 2x USB Front Access I/O (optional)
• 7x Low-profile, Full-length I/O Expansion Slots
• 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified
• Full SES2 support is available with SAS motherboards and other compatible components
Extra Specifications for Supermicro CSE-825TQ-563LPB Server Chassis 2U Rackmount
Main Specifications | ||
Device Type | SuperChassis 825TQ-563LPB | |
Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) | |
Color | Black | |
Form Factor | 2U chassis support for motherboard size - 12" x 13", 13.68" x 13" E-ATX and 12" x 10" ATX | |
Weight | 50 lbs (22.7kg) | |
Processor Support | ||
Processor Support | Supports dual, single Intel / AMD processors | |
Expansion / Connectivity | ||
Expansion Slots Total (Free) | 7x low-profile full-length expansion slots | |
Drive Bays | ||
Hot-swap | 8x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended | |
Front Panel | ||
Buttons | Power On/Off button, System Reset button | |
LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED | |
Networking | ||
Ports | 2x USB Ports + DB9 COM Port | |
System Cooling | ||
Fans | FAN-0094L4 | |
3x 80mm 6300 RPM hot-swap PWM fans | ||
Miscellaneous | ||
Applications | Chassis Intrusion switch | |
Peripheral Drives | ||
DVD-ROM | Slim DVD-ROM drive (optional) | |
SAS / SATA Backplane | ||
SAS / SATA Backplane | 1x 2U SAS / SATA backplane w/ Enclosure Management | |
Operating Environment (System) | ||
Operating Temperature Range | Operating Temperature Range 10 - 35C (50 - 95F) | |
Humidity Range 8 - 90% non-condensing | ||
Non-Operating Temperature Range -40 - 70C (-40 - 158F) | ||
Non-Operating Humidity Range 5 - 95% non-condensing | ||
Power Supply | ||
Certification | 80PLUS Gold Certified | |
Power Supply | 560W AC power supply w/ PFC (24-pin) | |
PWS-563-1H / CSE-PT0130L | ||
Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification | |
Standard Parts List | ||
Accessory | MCP-290-00060-0N, MCP-220-00024-0B, MCP-220-82502-0B, MCP-220-00023-01, MCP-290-00007-01, MCP-420-82503-0N | |
Chassis | CSE-825TQ-563LPB | |
Parts List - (Items Included) | ||
Air Shroud | MCP-310-28001-0N | |
Backplane | BPN-SAS-825TQ | |
Mounting Rails | MCP-290-00053-0N | |
Parts List | ||
Cables | CBL-0157L / CBL-0180L-01 |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
