- Supermicro CSE-835TQ-R920B Server Chassis 3U Rackmount

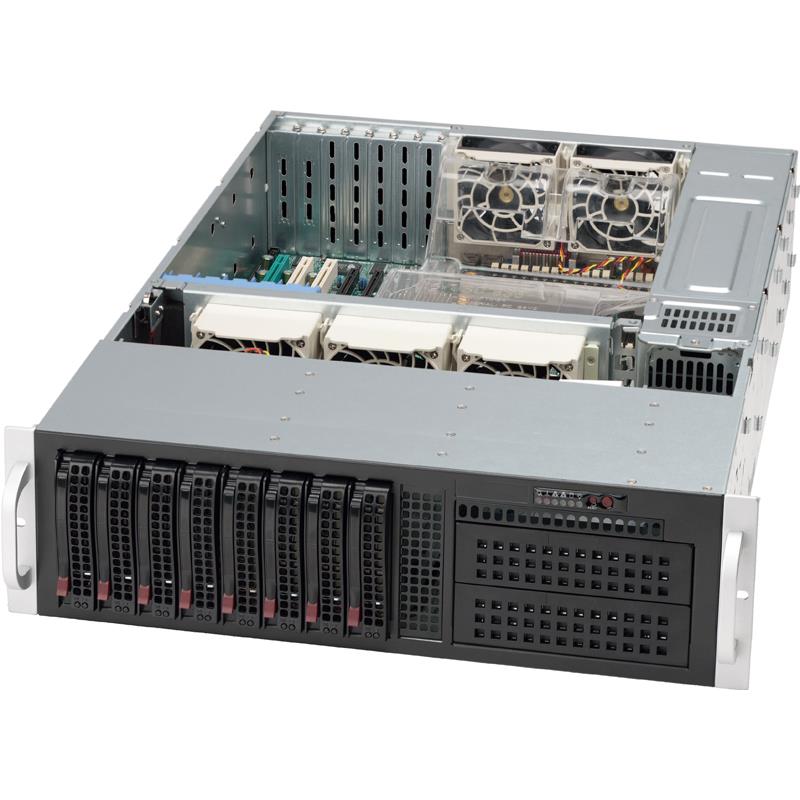

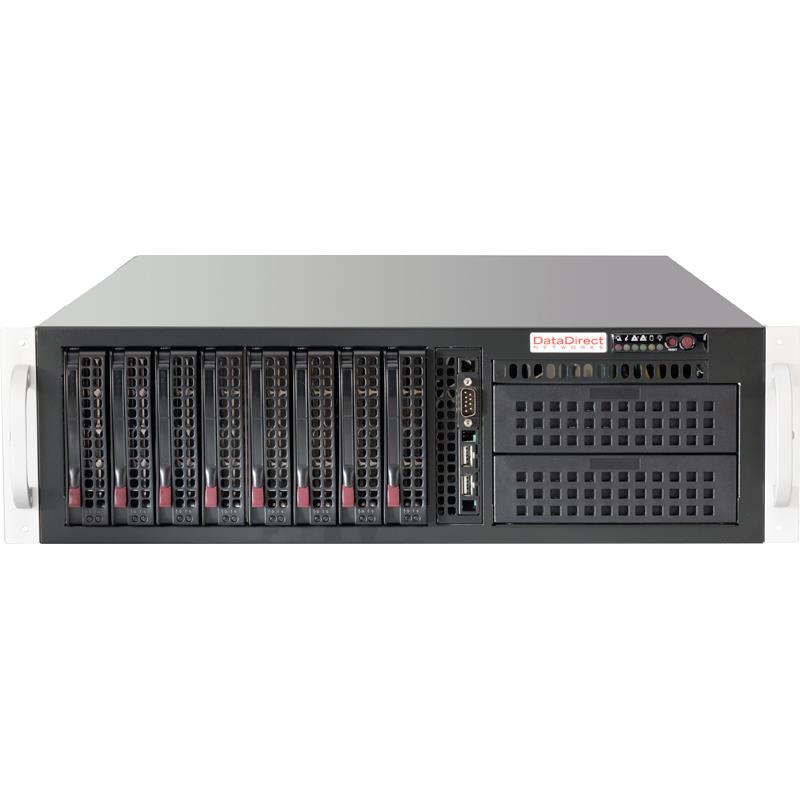

Supermicro CSE-835TQ-R920B Server Chassis 3U Rackmount
3U Chassis supporting E-ATX and ATX motherboards
Compatible with Dual & Single Intel and AMD processors
Expandable Design with 7 full-height, full-length expansion slots
Reliable Power with a 920W Redundant Platinum Level Power Supply
Rackmount 3U for up to Dual Intel / AMD Processors (Motherboard Maximum size : 13.68in x 13in - EATX) with Redundant 920Watts Hot-Swap Power Supply (2x 920w) - Includes 8x 3.5in SAS / Sata Hot-Swap Drive Trays, 7x Full-Height / Full-Length Expansion Slots, Rails Kit, Cooling Air Shroud (Black)
1. 920W Redundant High-efficiency Platinum Level (94%+) Power Supplies
2. 8x 3.5" Hot-swap SAS2/SATA3, 2x 5.25" Drive Bays & 1x Slim DVD-ROM
3. Optional hot-swap Slim HDD/SSD drive Kit and Mobile Racks for additional storage
4. 7x Full-height, Full-length Expansion Slots
5. Five Fans (3 middle, 2 rear) & Adjustable Air Shroud for 100% Cooling Redundancy
6. Note: Full SES2 Support is only available on SAS motherboards
Extra Specifications for Supermicro CSE-835TQ-R920B Server Chassis 3U Rackmount
| Processor Support | ||
| Processor Support | Dual and Single Intel® and AMD processors | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset Button | ||
| LEDs | Power LED | |
| Power Fail LED | ||
| 2 Network Activity LEDs | ||
| HDD activity LED | ||
| System Overheat LED | ||
| Operating Environment (System) | ||
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non-Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Power Supply | ||
| Certification | Platinum Certified | |
| Power Supply | 1U 920W Redundant Platinum Level Power Supply | |
| Power Efficiency | 94% | |
| Total Output Power and Input | 920W with Input 100 - 240Vac | |
| AC Input Frequency | 50-60Hz | |
| Dimensions (L x W x H) | 336 x 76 x 40 mm | |
| Output Type | Backplanes (gold finger) | |
| -12V | Max: NAA | |
| +12V | Max: 75A / Min: 0.5A (100Vac - 240Vac) | |
| +5Vsb | Max: 4A / Min: 0A | |
| +12Vsb | Max: NAA | |
| Power Distributor | -12V Max: 0.6 | |
| +5V Max: 30 | ||
| +3.3V Max: 24 | ||
| PDB-PT825-8824 | ||
| O/P: 12V/75 | ||
| Product SKUs | ||
| Product SKUs | - Discontinued SKU. Please contact sales-rep for possible OEM production quantities. MOQ may apply | |
| Form Factor | ||
| Form Factor | 3U chassis support for motherboard size - E-ATX and ATX. | |
| Dimensions | ||
| Height | 5.2" (132 mm) | |
| Width | 17.2" (437 mm) | |
| Depth | 25.5" (647 mm) | |
| Gross Weight | 75 lbs (34.02 kg) | |
| Packaging (W x H x L) | 26.6" (676 mm) x 13" (330 mm) x 33.9" (861 mm) | |
| Available Color | Black | |
| Expansion Slots | ||
| Expansion Slots | 7 full-height & full-length expansion slot(s) | |
| Drive Bays | ||
| Drive Bays | 8 x 3.5" hot-swap SAS/SATA | |
| Backplane | ||
| Backplane | SAS833/835 BACK PANEL WITH AMI MG9072 | |
| Peripheral Drives | ||
| Peripheral Drives | 1 x slim DVD-ROM drive bay | |
| Systems Cooling | ||
| Fans | 2 x 80mm rear hot-swap exhaust PWM fan(s) | |
| 3 x 80mm Hot-swap PWM Fans | ||
| System Monitoring | ||
| System Monitoring | Chassis intrusion switch | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | CCC | |
| BSMI | ||
| CE/EMC | ||
| FCC class A | ||
| TUV/CB | ||
| UL/CUL | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail | MCP-290-00058-0N | $ 103.00 | 0 | Ball bearing quick release rail for shor-depth rack (19"~26.6") | ||
| HDD Tray Converter | MCP-220-00118-0B | $ 31.50 | 0 | Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH | ||
| HDD Kit | MCP-220-81506-0N | $ 81.50 | 0 | 12G 2.5-in Hot-swap Slim DVD Size Drive Kit with Status LED | ||
| DVD-ROM / DVD-RW | DVM-TEAC-DVD-SBT4 | 0 | BLACK TEAC SLIM DVD ROM SATA DRIVE,HF,RoHS/REACH | |||
| Mobile Rack | CSE-M14TQC | $ 151.50 | 0 | Black SAS3/SATA3 Mobile Rack for 4x 2.5 | ||
| Mobile Rack | CSE-M28SAB-OEM | $ 208.50 | 0 | Black SAS/SATA Mobile Rack for 8x 2.5" HDD w/o fan module | ||
| Mobile Rack | CSE-M28SACB-OEM | $ 210.00 | 0 | Black SAS3/SATA3 Mobile Rack for 8x 2.5" HDD w/o fan module,HF,RoHS/REACH,PBF | ||
| LCD Module | MCP-220-00095-0B | $ 90.00 | 0 | Black 5.25 LCD tray wo rail, support 1x 3.5 HDD | ||
| Front Bezel | MCP-210-83501-0B | $ 34.00 | 0 | Black Front Bezel for SC835 |
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
