- Supermicro CSE-815TQ-R700CB Server Chassis 1U Rackmount

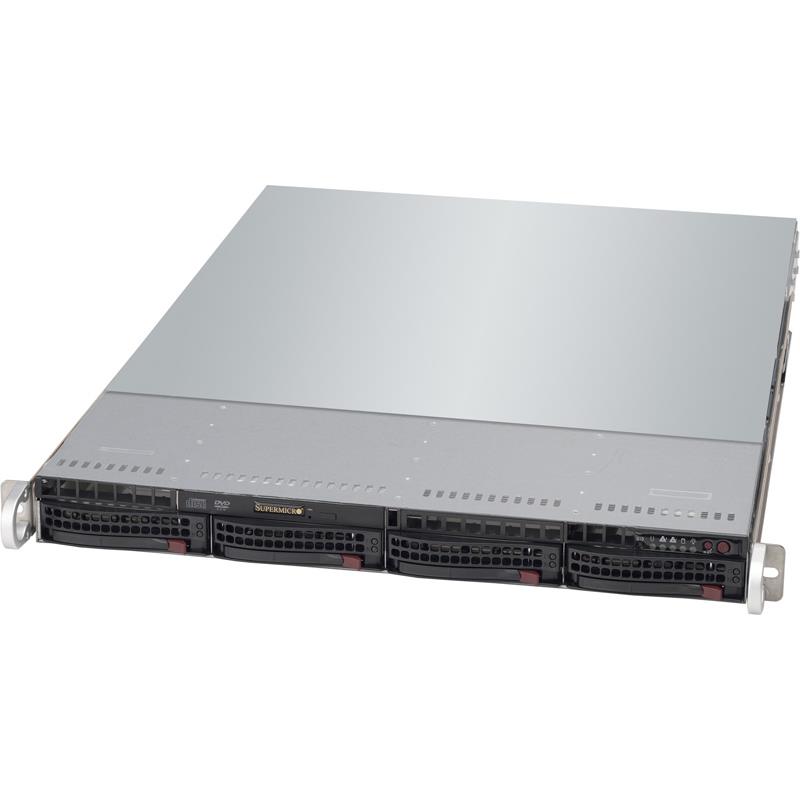

Supermicro CSE-815TQ-R700CB Server Chassis 1U Rackmount
• 1x 1U SAS / SATA backplane
• 700W Redundant Power Supplies
• 4x Hot-swap SAS/SATA Drive Bays
• Supports dual Intel / AMD processors
Rackmount 1U w/ 700W Redundant Power Supply, for Up to Dual Intel / AMD Processors (Motherboard maximum size : 12in x 13in) - Includes 4x 3.5in Hot-Swap SAS/Sata Drive Trays, 1U SAS / Sata Backplane, Rails Kit, Air Shroud - (Black)
• 4x Counter-rotating Fans
• 1x Slim DVD ROM Drive (optional)
• 4x 3.5 Hot-swap SAS/SATA Drive Bays
• 1x Full-size, Full-length I/O Expansion Slot
• Power Switch, Reset Button & 5 LED Indicators
• 700W High efficiency Redundant Power Supplies
• Full SES2 support is available with SAS motherboards and other compatible components
Extra Specifications for Supermicro CSE-815TQ-R700CB Server Chassis 1U Rackmount
| Main Specifications | ||
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437mm) x Depth 25.6" (650mm) | |
| Color | Black | |
| Form Factor | 1U chassis support for max. motherboard size - 12" x 13" | |
| Weight | 36 lbs (16.4kg) | |
| Processor | ||
| Compatible Processors | Supports dual Intel / AMD processors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1x full-height, full-length PCI expansion slot (Riser Card Required) | |
| Peripheral Drives | ||
| CD-ROM / DVD-ROM | Slim DVD-ROM drive (optional) | |
| Drive Bays | ||
| Hot-swap | 4x 3.5" SAS / SATA Hot-swap drive trays | |
| Internal | SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | System Reset button | |
| Power On/Off Button | ||
| LEDs | Power LED | |
| Hard drive activity LED | ||
| 2x Network activity LEDs | ||
| PC Health Monitoring | ||
| LED | System Overheat LED | |
| Networking | ||
| Ports | 2x USB & DB9 COM port tray | |
| (Optional - in place of floppy drive) | ||
| System Cooling | ||
| Fans | 4x 4cm Counter-rotating PWM fans | |
| FAN-0086L4 / CSE-PT0135 | ||
| Environmental Parameters | ||
| Operating Temperature | Operating Temperature Range 10 - 35C (50 to 95 F) | |
| Operating Environment (System) | ||
| Operating Temperature Range | Humidity Range 8 - 90% non-condensing | |
| Non-Operating Humidity Range 5 - 95% non-condensing | ||
| Non-Operating Temperature Range -40 - +70C (-40 to 158 F) | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane | |
| Power Supply | ||
| Power Supply | 700W (1 + 1) Redundant AC-DC power supply w/ PFC | |
| PWS-704P-1R / PDB-PT112-2424 | ||
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | Germany - TUV Certified | |
| USA - UL listed, FCC | ||
| Canada - CUL listed | ||
| EN 60950/IEC 60950-Compliant | ||
| Europe/CE Mark | ||
| China - CCC Mark | ||
| Standard Parts List | ||
| Accessory | CSE-PT93L(-B) / CSE-PT94L(-B) | |
| Chassis | CSE-815TQ-R700CB | |
| Front Panel | MCP-280-81301-0N | |
| Rear Window | MCP-240-00086-0N | |
| Parts List - (Items Included) | ||
| Air Shroud | MCP-310-18002-ON | |
| Backplane | BPN-SAS-815TQ | |
| Drive Trays | MCP-220-00024-0B | |
| Mounting Rails | CSE-PT51L | |
| Parts List | ||
| Cables | CBL-0157L / CBL-0157L / CBL-0087 / CBL-0191L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
