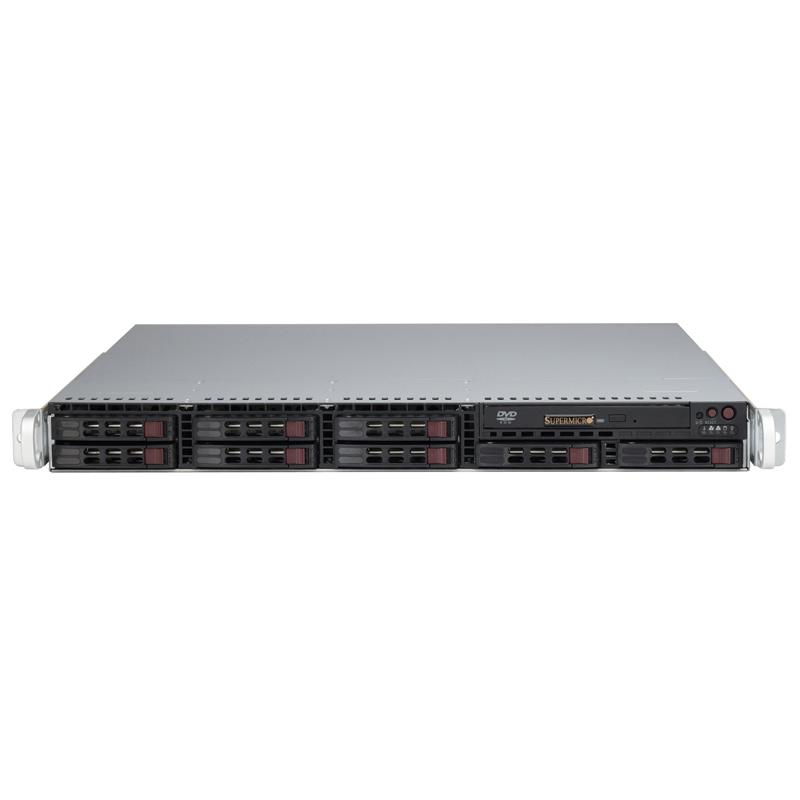

Supermicro CSE-113MTQ-563CB Server Chassis 1U Rackmount
• 560W Power Supply Gold Level
• Supports dual; single processors
• 1x Full-height AOC expansion slot
• Hot-swap 2.5 SAS/SATA HDD trays
Rackmount 1U w/ 560W Power Supply, for Intel/AMD Single or Dual CPUs - 8x 2.5in SAS/SATA Hot-Swap Drive Trays, 1U SAS/SATA Backplane, Rails Kit - SC113MTQ-563CB (Black)
• 1x Full-height AOC expansion slot
• 8x Hot-swap 2.5 SAS/SATA HDD bays
• 4x 40x28mm high-efficiency fans (6x fans maximum)
• Optimized for DP (low power) and UP motherboards
• Supports motherboard size up to: 13.68 (347mm) x 10.5 (267mm)
• 560W High-efficiency Power Supply 80 PLUS, Gold Level Certified
Extra Specifications for Supermicro CSE-113MTQ-563CB Server Chassis 1U Rackmount
| Main Specifications | ||
| Device Type | SuperChassis | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 19.98" (507 mm) | |
| Color | Black | |
| Form Factor | 1U Rackmount Chassis, supports maximum motherboard size: 13.68" x 10.5" | |
| Weight | 29.5 lbs (13.38 kg) | |
| Processor | ||
| Compatible Processors | Dual and Single Intel and AMD processors | |
| Drive Bays | ||
| Hot-swap | SAS or enterprise SATA HDD only recommended | |
| 8 x 2.5" hot-swap SAS/SATA drive bay | ||
| Peripheral Drives | MCP-290-00036-0B | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 1 full height expansion slot(s) | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button, UID button | |
| LEDs | 2 Network Activity LEDs, HDD activity LED, Power Status LED, Unit Identification (UID) LED | |
| System Cooling | ||
| Fans | FAN-0065L4 | |
| 4x 40x28mm high-efficiency PWM fans (Optional 2x fans for AOC cooling) | ||
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 10 - 35C (50 - 95F) | |
| Humidity Range 8 - 90% non-condensing | ||
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) | ||
| Non-Operating Humidity Range 5 - 95% non-condensing | ||
| Power Supply | ||
| Certification | 80PLUS Gold Certified | |
| Power Supply | PWS-563-1H | |
| 1U 560W/600W Multi-output power supply Gold level, 24Pin output | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 1U SAS / SATA backplane with SES2 | |
| Regulatory (Power Supply) | ||
| Power Supply Safety / EMC | USA - UL listed, FCC, Canada - CUL listed, CCC Certification, EN 60950/IEC 60950-Compliant, Europe/CE Mark, Germany - TUV Certified | |
| Standard Parts List | ||
| Accessory | MCP-420-11301-0N, MCP-320-00024-0N, MCP-290-00037-0N, MCP-340-00001-01 | |
| Chassis | CSE-113MTQ-563CB | |
| Front Panel | MCP-280-00017-0N | |
| Parts List - (Items Included) | ||
| Backplane | BPN-SAS-113TQ | |
| Drive Trays | MCP-220-00047-0B | |
| Mounting Rails | CSE-PT52L | |
| Parts List | ||
| Cables | CBL-0335L | |
