- Supermicro SYS-5039MP-H8TNR MicroCloud Barebone Single CPU, 8-Node
Supermicro SYS-5039MP-H8TNR MicroCloud Barebone Single CPU, 8-Node
• Big Data-Analytik
• Cloud- und Virtualisierungsanforderungen
• Webhosting, VM
• Soziale Netzwerke
• CDN, Business-Hosting

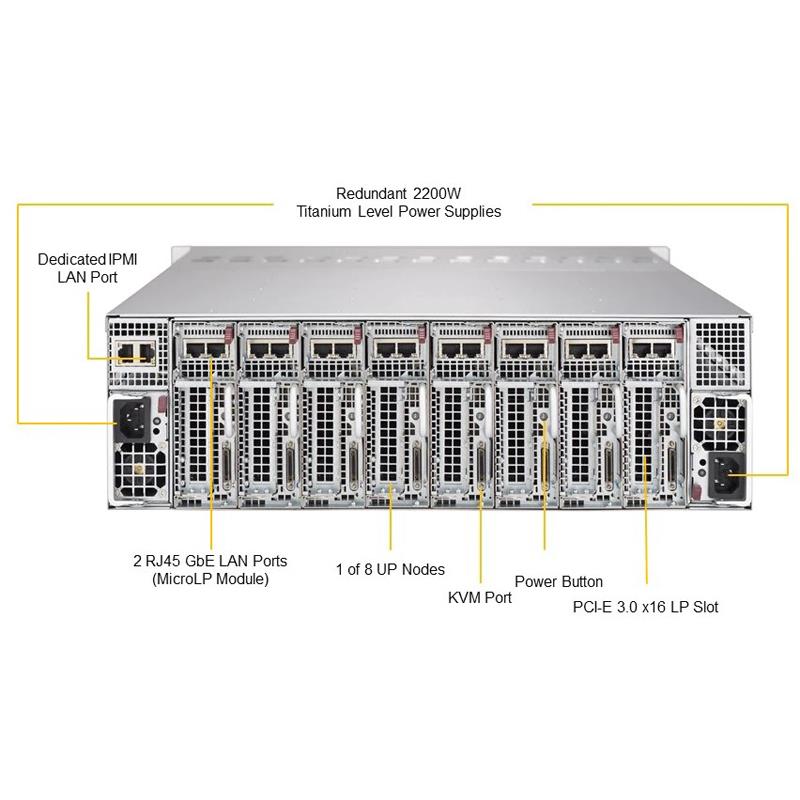

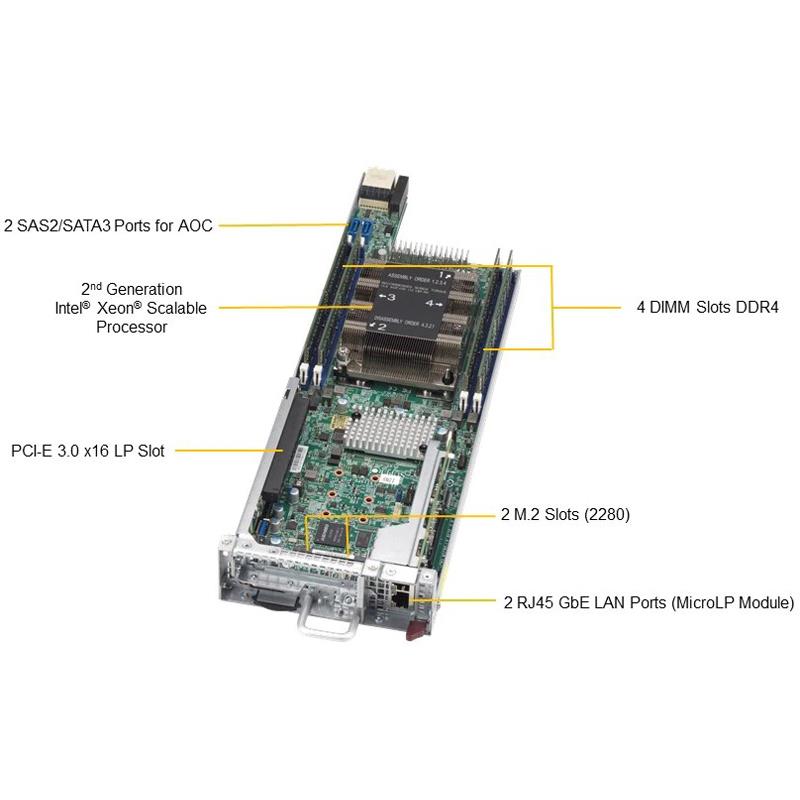

Barebone 3U MicroCloud with 8x Modular UP Nodes - Per Node : Support single Socket FCBGA P (LGA 3647), Up to 1TB DDR4 ECC RDIMM up to 2933MHz (4 DIMM sockets) - On-Board (per node) : 2 x SATA3 (6Gbps) via C621 controller, IPMI 2.0, 2x 1Gb/s Base-T ports, VGA - Includes (per node) : 2x 3.5in or 2x 2.5in Hybrid, 1x Heatsink, - Included in system : 2200W Redundant Titanium Level Power Supply, X11SPD-F Motherboard, CSE-938NH-R2K20BP 3U Chassis
This product is no longer available.
1. Einzelner Sockel P (LGA 3647) unterstützt 2. Generation Intel® Xeon® Skalierbar Verarbeiter (Cascade Lake/Skylake) ‡
2. 2x 3,5" SATA3 standardmäßig; 2x 2,5" Hybrid SATA3/NVMe mit optionalen Kits
3. 4 DIMMs; bis zu 1TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Unterstützt Intel® Optane™ DCPMM ††
4. 2 GbE-LAN-Anschlüsse über Intel i350
5. 1 PCI-E 3.0 x16 (Low-Profile), 1 Micro-LP, und 2 M.2
6. 2 USB 2.0, 1 VGA, 1 COM-Anschluss, (mit KVM-Dongle)
7. 4x 8cm Hot-Swap-Lüfter mit Lüfterdrehzahlregelung (pro System)
8. Redundante 2200-W-Netzteile Titanium Level zertifiziert (pro System)
Extra Specifications for Supermicro SYS-5039MP-H8TNR MicroCloud Barebone Single CPU, 8-Node
| Processor/Cache (per Node) | ||
| CPU | Single Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Support CPU TDP 165W * | ||
| Cores | Up to 28 Cores | |
| Note | * Low TCase CPUs may require additional configuration. Please contact Supermicro Sales contact for additional information. | |
| ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | ||
| System Memory (per node) | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 1TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Supports Intel® Optane™ DCPMM †† | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| Network Devices (per node) | ||
| Micro-LP NIC | Dual RJ-45 connectors | |
| MicroLP Adapter Matrix (Networking options) | ||
| Intel® i350 GbE LAN controller | ||
| On-Board Devices (per node) | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps) via C621 controller | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM over LAN support | ||
| ASPEED AST2500 BMC | ||
| Graphics | ASPEED AST2500 Graphics (BMC with Graphic controller) | |
| Input / Output (per node) | ||
| SATA | 2 SATA3 (6Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| KVM | 1 VGA, 1 COM and 2 USB 2.0 (with KVM dongle) | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash EEPROM with AMI BIOS | |
| BIOS Features | USB Keyboard support | |
| DMI 2.3 | ||
| SMBIOS 2.3 | ||
| ACPI 1.0 / 2.0 | ||
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Rear Window (each node) | ||
| Switch | Power / UID | |
| Chassis | ||
| Form Factor | 3U | |
| Model | CSE-938NH-R2K20BP | |
| Dimensions and Weight | ||
| Height | 5.21" (132 mm) | |
| Width | 17.26" (438 mm) | |
| Depth | 23.2" (589 mm) | |
| Package | 11.65" (H) x 26.26" (W) x 34" (D) | |
| Weight | Net Weight: 62.2 lbs (28.21 kg) | |
| Gross Weight: 88 lbs (39.92 kg) | ||
| Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED | |
| Node status LED | ||
| Expansion Slots (per node) | ||
| PCI-Express | 1 PCI-E 3.0 x16 (Low-profile) slot | |
| 1 Micro-LP PCI-E 3.0 x8 slot | ||
| M.2 | M.2 Key: M-Key | |
| M.2 Interface: 2 SATA/PCI-E 3.0 x4 | ||
| M.2 Form Factor: 2280 | ||
| Drive Bays (per node) | ||
| Internal | Enterprise SATA HDD only recommended | |

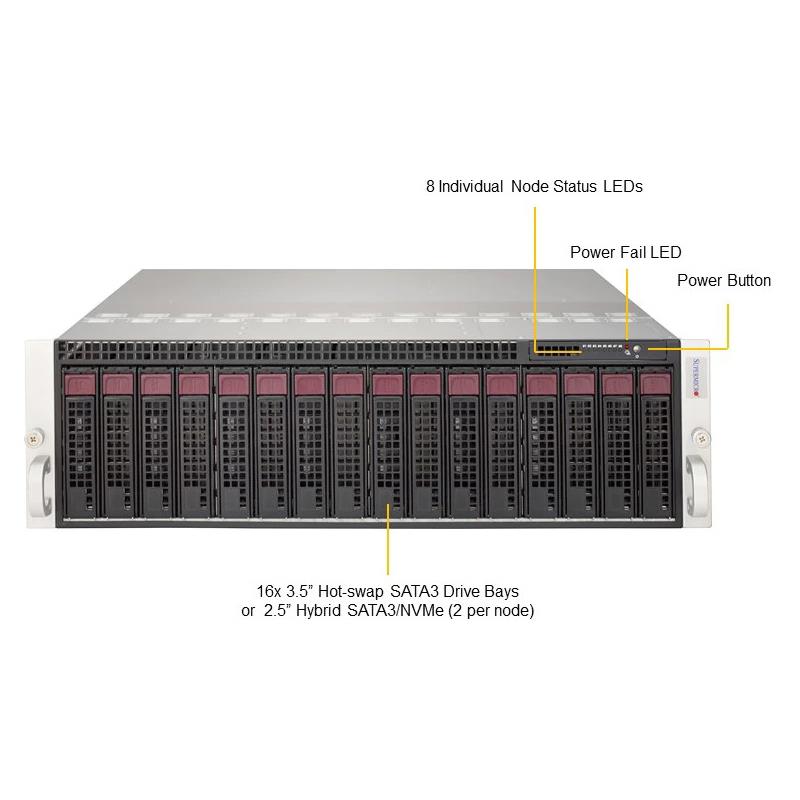

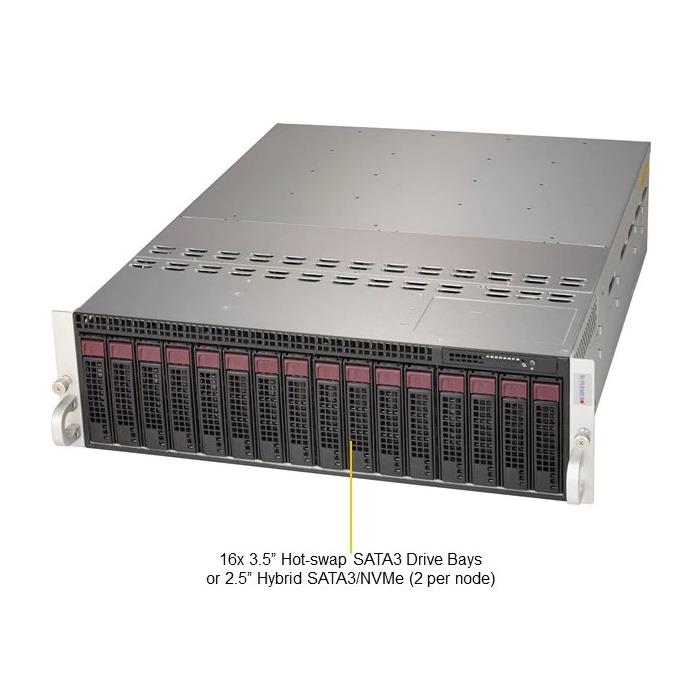

| 2x 3.5" SATA3 (6Gbps) HDDs per node (or 2x 2.5" Hybrid SATA3/NVMe with optional kits); up to 16 HDDs total | ||
| System Cooling | ||
| Fans | 4 Hot-swap 8cm cooling fans fan speed control | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power and Input | 1200W with Input 100-127Vac | |
| 1800W with Input 200-220Vac | ||
| 1980W with Input 220-230Vac | ||
| 2090W with Input 230-240Vac | ||
| 2200W with Input 220-240Vac (for UL/cUL use only) | ||
| 2090W with Input 230-240Vdc (for CCC only) | ||
| AC Input Frequency | 50-60Hz | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 183.3A / Min: 0A (220-240Vac) | ||
| 5VSB | Max: 1A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| 5 Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V | ||
| FAN | Cooling zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-5039MP-H8TNR (Black) | |
| Motherboard | ||

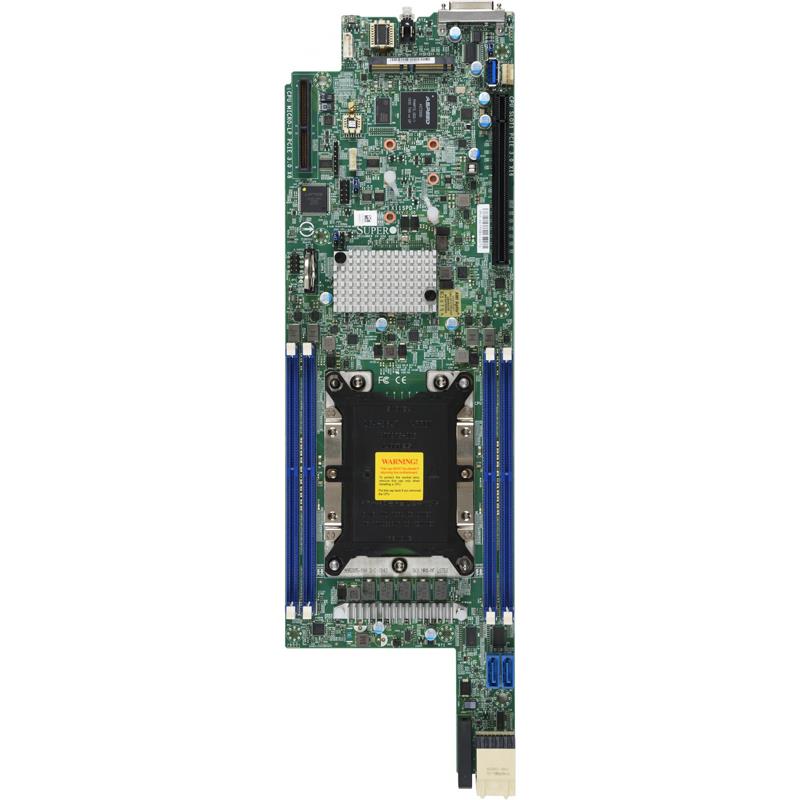

| Motherboard | Super X11SPD-F | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SPD-F | 8 | Super X11SPD-F Motherboard | |
| Motherboard / Chassis | CSE-938NH-R2K20BP | 1 | 3U Chassis | |
| Add-on Card / Module | AOC-CGP-I2-P | 8 | AOC-CGP-I2-O-P | |
| Add-on Card / Module | AOM-BPN-938NH-P | 1 | AOM-BPN-938NH, Backplane module for 8-node Microcloud system, 16xU.2, 2 per node, Dual PSU, Management LAN switch, chassis node ID.,HF,RoHS | |
| Add-on Card / Module | AOM-LAN-MC8-P | 1 | AOM-LAN-MC8, LAN front panel module for 8-node Microcloud system,HF,RoHS | |
| Add-on Card / Module | AOM-PDB-PT938-LSG-P | 1 | AOM-PDB-PT938-LSG, PDB module for 8-node Microcloud system,HF,RoHS | |
| Add-on Card / Module | AOM-PDB-PT938-RSG-P | 1 | AOM-PDB-PT938-RSG, PDB module for 8-node Microcloud system,HF,RoHS | |
| Cable 1 | CBL-0218L | 1 | USB/KVM/SUVI,36 PIN TO 9 PIN/15 PIN/2 USB CH,11.5CM,30/28AWG | |
| Cable 2 | CBL-0355L | 2 | ETHERNET,CAT5E,RJ45 W/BOOT,GREEN,UTP,2FT (60CM),24AWG | |
| Cable 3 | CBL-0458L | 1 | 20 cm 30 pin to 30 pin Front control cable with tube. 28AWG | |
| Cable 4 | CBL-CDAT-0662 | 1 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,61.5CM,28AWG | |
| Cable 5 | CBL-PWCD-0578 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG | |
| FAN 1 | FAN-0194L4 | 4 | 80x80x38 mm, 13.5K RPM Cooling Fan for 3U8N Microcloud Serie | |
| Drive Tray(s) | MCP-220-00094-0B | 16 | Black gen 6.5 hot-swap 3.5 inch HDD Tray | |
| Air Shroud | MCP-310-93805-0B | 16 | Mylar air shroud for 2-DIMMs (quick install on DIMM latch) | |
| Heatsink | SNK-P0067PS | 8 | Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| Riser Card | RSC-RR1U-E16 | 8 | RSC-RR1U-E16 with PIC-E x16 output | |
| Rail set | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2" W | |
| Power Supply | PWS-2K20A-1R | 2 | 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| TPM security module | AOM-TPM-9670V | $ 56.50 | 1 | SPI capable TPM 2.0 with Infineon 9670 controller,Vertical form factor | ||
| TPM security module | AOM-TPM-9671V | $ 56.50 | 1 | SPI capable TPM 1.2 with Infineon 9670 controller,Vertical form factor | ||
| Intel VROC RAID Key | AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) | |||
| Intel VROC RAID Key | AOC-VROCSTNMOD | $ 176.00 | 1 | Intel VROC Standard, RAID 0, 1, 10 | ||
| Intel VROC RAID Key | AOC-VROCPREMOD | $ 344.50 | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Cable | CBL-SAST-0610 | $ 26.00 | 0 | For AOC-S3008L-L8i/AOC-S3108L-H8IR | ||
| Storage Controller Card(s) | AOC-S3008L-L8iAOC-S3108L-H8IRAOC-S3108L-H8IR-16DD | 0 | Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/10Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60Std LP, 8 ports, 12Gb/s Gen3, RAID 0/1/5/6/10/50/60 | |||
| Network Card(s) | AOC-CTGS-i2TAOC-CTG-i1SAOC-CTG-i2SAOC-S40G-i2QAOC-SGP-i2AOC-SGP-i4AOC-STG-i2AOC-STG-i2TAOC-STGN-i1SAOC-STGN-i2SAOC-S100G-m2CAOC-SHFI-I1C | 0 | MicroLP, 2x 10GbE Base-T, PCI-E 3.0 x4, Intel® X550MicroLP, 1 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599ENMicroLP, 2 x 10GbE SFP+, PCI-E 2.0 x8, Intel® 82599ENStandard LP 2-port 40GbE controller, Intel Fortville XL710Standard LP, 2x GbE RJ45, PCI-E x4, Intel i350AM2Standard LP, 4x GbE RJ45, PCI-E x4, Intel i350Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EBStandard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel 82599ENStandard LP, 2x 10GbE SFP+, PCI-E x8, Intel 82599ESStandard LP 2-port 100GbE with 2 QSFP28, Mellanox CX-4 ENStandard LP 1-port Omni Path controller, Intel 100HFA016LS | |||
| Drive Tray(s) | MCP-220-93801-0B | $ 31.00 | 0 | Black gen 6 hot-swap 3.5-to-2.5 HDD tray | ||
| Drive Tray(s) | MCP-220-00158-0B | $ 33.50 | 0 | Black gen 6.5 hot-swap 3.5-to-2.5 Tool-less drive tray | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
