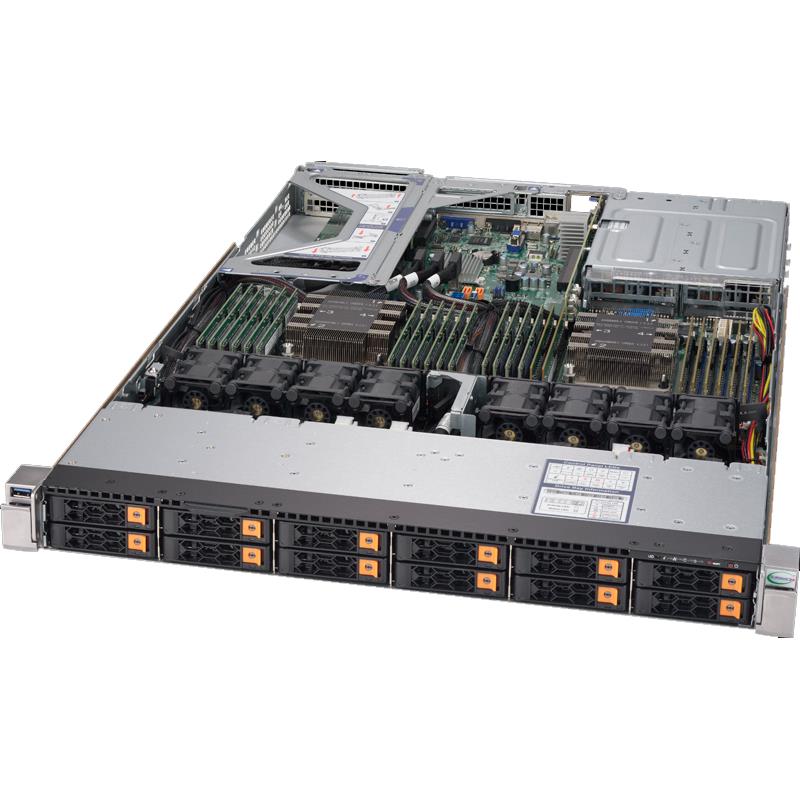

Supermicro SYS-1029U-TN12RV 1U Barebone Dual Intel Processor

Supermicro SYS-1029U-TN12RV 1U Barebone Dual Intel Processor

• Virtualization
• Cloud Computing
• High End Enterprise Server

Server 1U Rack for 2x Xeon Scalable Processor Gen. 2, Supports up to 6TB DDR4 2933MHz ECC LRDIMM on 24 DIMM slots

This product is no longer available.

To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*, and 1x 2.5" drive). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 Ultra Riser card AOC-URN4 with 1 standard PCI-E NIC adapter.

1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 1 PCI-E 3.0 x16 (FH, 10.5"L), 1 PCI-E 3.0 x8 (LP), 1 internal PCI-E 3.0 x16 (for SMCI storage controller)
4. Flexible networking options, up to 25GbE via Ultra Riser card
5. 12 Hot-swap 2.5" NVMe/SATA3 drive bays
6. 8 Heavy duty fans w/ optimal fan speed control
7. 1200W Redundant Power Supplies Titanium Level (96%)

Extra Specifications for Supermicro SYS-1029U-TN12RV 1U Barebone Dual Intel Processor

Motherboard
Motherboard	Super X11DPU-V
System Memory
Memory Capacity	24 DIMM slots
	Up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
	Supports Intel® Optane™ DCPMM ††
Memory Type	2666 ECC DDR4 NVDIMM
	2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
Note	† 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info.
On-Board Devices
Chipset	Intel® C621 chipset
SATA	SATA3 (6Gbps)
Network Connectivity	Networking options provided via Ultra Riser card
IPMI	Support for Intelligent Platform Management Interface v.2.0
	IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2500 BMC
Input / Output
NVMe	6 NVMe/SATA ports (NVMe from CPU 1)
	6 NVMe/SATA ports (NVMe from CPU 2)
LAN	1 RJ45 Dedicated IPMI LAN port
	Networking options provided via Ultra Riser card
USB	2 USB 3.0 ports (rear)
	1 USB 3.0 (front)
Video	1 VGA port
Serial Port	1 Serial header
DOM	2 Super DOM (Disk on Module) ports
System BIOS
BIOS Type	AMI 32Mb SPI Flash ROM
Management
Software	NMI
	KVM with dedicated LAN
	Redfish API
	SuperDoctor® 5
	Intel® Node Manager
	IPMI 2.0
	SSM , SPM , SUM
Power Configurations	ACPI Power Management
PC Health Monitoring
CPU	4+1 Phase-switching voltage regulator
	Monitors for CPU Cores, Chipset Voltages, Memory.
FAN	Status monitor for speed control
	Pulse Width Modulated (PWM) fan connectors
	Fans with tachometer monitoring
Temperature	Monitoring for CPU and chassis environment
	Thermal Control for fan connectors
Chassis
Form Factor	1U Rackmount
Model	CSE-119UHTS-R1K22HP-T
Dimensions and Weight
Height	1.7" (43mm)
Width	17.2" (437mm)
Depth	29.1" (739mm)
Gross Weight	48 lbs (21.8 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off button
	System UID button
LEDs	Power LED
	Network activity LEDs
	Hard drive activity LED
	UID LED
Expansion Slots
PCI-Express	1 PCI-E 3.0 x16 (FH, 10.5"L)
	1 PCI-E 3.0 x8 (LP)
	1 Internal PCI-E 3.0
Drive Bays / Storage
Hot-swap	12 Hot-swap 2.5" NVMe/SATA drive bays
	Optional SAS support via SAS storage controller
M.2	2 M.2 PCI-E 3.0 x4 M-Key NVMe via optional add-on card AOC-SLG3-2M2 (2260/2280/22110)
System Cooling
Fans	8 Heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Power Supply
Power Supply	1200W Redundant Hot-swap Power Supplies with PMBus
Total Output Power	800W: 100 – 127Vac
	1200W: 200 – 240Vac
	1200W: 200 -240Vdc (for CCC only)
Dimension (W x H x L)	73.5 x 40 x 203 mm
Input	100-127Vac / 9.8 - 7A / 50-60Hz
	200-240Vac / 7.5 - 6A / 50-60Hz
	200-240Vdc / 7.5 - 6A (for CCC only)
+12V	Max: 66.7A / Min: 0A (100-127Vac)
	Max: 100A / Min: 0A (200-240Vac)
	Max: 100A / Min: 0A (200-240Vdc)
+12Vsb	Max: 2.1A / Min: 0A
Output Type	25 Pairs Gold Finger Connector
Certification	Titanium Level
Operating Environment
RoHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
	Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
Processor
CPU	Dual Socket P (LGA 3647)
	Support CPU TDP 70-205W
	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s
Cores	Up to 28 Cores
Note	‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). Extended thermal solutions may be required to support CPUs higher than 165W TDP, please contact Supermicro Technical Support for additional information.
Product SKUs
Product SKUs	SuperServer 1029U-TN12RV (Black)

Name	Part Number	Qty.	Description
Motherboard / Chassis	MBD-X11DPU-V	1	Super X11DPU-V Motherboard
Motherboard / Chassis	CSE-119UHTS-R1K22HP-T	1	CSE-119UHTS-R1K22HP-T
Add-on Card / Module	AOC-SLG3-4E4R-P	1	NVMe AOC by 16,HF,RoHS/REACH
Backplane	BPN-SAS3-119A-N12	1	1U Hybrid BPN for 12x2.5"; SAS3/SATA3/NVMe Storage Devices
	Cable 1	CBL-CDAT-0190	1	CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,30CM,28AWG
	Cable 2	CBL-PWEX-0781	1	PWYCB,2X4F/GPU-White to TWO 2X2F,P4.2, (5,12V),65/65CM,18AWG,RoHS
	Cable 3	CBL-PWEX-1067	1	PWEX,2X2F/P4.2 TO 2x4F/P4.2,BLK2,YEL1,RED*1,61CM,16AWG
	Cable 4	CBL-SAST-0655	1	(SATA 8-11) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,47CM,SB,30AWG
	Cable 5	CBL-SAST-0656	1	(SATA 4-7) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,39CM,SB,30AWG
	Cable 6	CBL-SAST-0657	1	(SATA 0-3) MINI SAS HD(ST)-MINI SAS(RA-RS EXIT),6G,INT,55CM,SB,30AWG
	Cable 7	CBL-SAST-0856-1	1	(NVMe 8-9) SLIMLINE SAS x8 (LS) to 2x MINI SAS HD x4,INT, 74CM,32AWG
	Cable 8	CBL-SAST-0857-1	1	(NVMe 10-11) SLIMLINE SAS x8 (LS) to 2x MINI SAS HD x4,INT, 80CM,32AWG
	Cable 9	CBL-SAST-0821-1	1	(NVMe 6-7) SLIMLINE x8 (LE) to 2x Oculink x4, 46/50CM,85 OHM
	Cable 10	CBL-SAST-0822-1	1	(NVMe 0-1) SLIMLINE x8 (RE) to 2x Oculink x4, 63/63CM,85 OHM
	Cable 11	CBL-SAST-1149-85	1	SLIMLINE SAS x8 (RE) to 2x Oculink x4,INT, 49CM, 85 OHM
	Cable 12	CBL-SAST-1154-85	1	(NVMe 2-3) SLIMLINE x8 (RE) to 2x Oculink x4,INT, 54CM, 85 OHM
	Drive Tray(s)	MCP-220-00178-0B	12	2.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
	Air Shroud	MCP-310-11601-0B	1	(CPU2) Mylar air shroud for SC116U (X11 24DIMM, left side)
	Air Shroud	MCP-310-11906-0B	1	(CPU1) Right side air shroud with foam air block
	Riser Card	RSC-R1UW-2E16	1	1U LHS WIO Riser card with two PCI-E x16 slots
	Riser Card	RSC-R1UW-E8R	1	1U RHS WIO Riser card with one PCI-E x8 slot
	Heatsink / Retention	SNK-P0067PS	2	1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
	* Power Supply	PWS-1K22A-1R	2	1U 1200W/800W Titanium Redundant Power Supply CRPS 73.5x203x40mm,RoHS/REACH
* Cable 13	CBL-0160L	2	NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
* Cable 14	CBL-CDAT-0218	1	CBL,CNTL PANEL CONVERTER,FOR 809H and CSE119UH,FFC,20PIN,15C
* Cable 15	CBL-CUSB-0996	1	USB 3.0(F) Type A, RA to USB3.0 20pin,60CM,26/30AWG,RoHS
	* FAN 1	FAN-0141L4	8	40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
* Front Panel	FPB-FP119UH	1	Front control board for 119UHTS 1U Ultra
	* Rear Window	MCP-240-81916-0N	1	Rear window for SC819U, 119U tool-less chassis (No opening)
	* Rail Set	MCP-290-00102-0N	1set	Outer rail, quick-release type, 25.6\" to 33.05\"
* Rail Set	MCP-290-00112-0N	1set	Inner rail, extension, long (quick) for 1U 17.2
* Rail Set	MCP-290-00120-0N	1set	Inner rail, front, quick-release type (thumb screw appiled)
	* Air Shroud	MCP-310-81905-0B	1	Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH

Note:

• Parts with * are inside the chassis

• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.

Name	Part Number	Price	Add to Cart	Qty.	Description
Ultra Riser Card	AOC-URN4-m2TS & MCP-240-81915-0N			1	2-port 25GbE SFP28, Mellanox CX-4 Lx EN
Ultra Riser Card	AOC-URN4-b2XT & MCP-240-81909-0N			0	2-port 10GbE RJ45, Broadcom BCM57416
	Ultra Riser Card	AOC-URN4	$ 78.00		0	No Onboard NIC
	Add-on Card for M.2	AOC-SLG3-2M2	$ 54.00		1	Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M.2 NVMe Modules
Add-on Card for M.2	RSC-UMR-8 & 1 CBL-SAST-0538			0	1U RHS WIO Riser card with 1 PCI-E x8 slot and 1 M.2 NVMe slot and 1 M.2 SATA slot
	Drive Trays	MCP-220-00178-0B	$ 24.50		1~12	Tool-less black hot-swap 2.5" drive tray (orange tab)
	Drive Trays	MCP-220-00187-0B	$ 23.50		0	Tool-less black hot-swap 2.5" drive tray (red tab)
Storage Control Card and Cable(s)	AOC-S3008L-L8e &2x CBL-SAST-0593			1	Std LP, 8 internal ports, 12Gb/s per port- Gen3, 122HDD, HBA; MINI SAS HD SATA,12G,INT,60CM,60CM SB,30AWG
Storage Control Card and Cable(s)	AOC-S3008L-L8i &2x CBL-SAST-0593			0	Std LP, 8 internal ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1E; MINI SAS HD,12G,INT,60CM,30AWG
Storage Control Card and Cable(s)	AOC-S3108L-H8iR &2x CBL-SAST-0593			0	Std LP, 8 internal ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Storage Control Card and Cable(s)	AOC-S3108L-H8iR-16DD & 2x CBL-SAST-0593			0	Std LP, 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; MINI SAS HD,12G,INT,60CM,30AWG
Network Card(s)	AOC-SGP-i2/4			0	Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
Network Card(s)	AOC-STGN-i1S/i2S			0	Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
Network Card(s)	AOC-STGF-i2S			0	Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
Network Card(s)	AOC-STG-i4S			0	Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
Network Card(s)	AOC-STG-b4S			0	Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
Network Card(s)	AOC-STG-i2T			0	Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
Network Card(s)	AOC-STGS-i1/2T			0	Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
Network Card(s)	AOC-STG-i4T			0	Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
Network Card(s)	AOC-STG-i2			0	Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
Network Card(s)	AOC-S25G-m2S			0	Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
Network Card(s)	AOC-S40G-i2Q			0	Standard LP 2-port 40GbE controller, Intel Fortville XL710
Network Card(s)	More			0	AOC Compatibility Matrix
	CacheVault(s)	BTR-CV3108-1U1	$ 324.50		0	CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
CacheVault(s)	BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05			0	CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
CacheVault(s)	BTR-TFM8G-LSICVM02 & MCP-240-00127-0N			0	CacheVault for Broadcom 3108; Supercap mounting bracket for 2.5" HDD location
TPM security module	AOM-TPM-9670H-SAOM-TPM-9671H-S			11	TCG 2.0 compliant trusted platform module (TPM), Horizontal FFTCG 1.2 compliant trusted platform module (TPM), Horizontal FF
Intel VROC RAID Key	AOC-VROCINTMOD			1	Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
	Intel VROC RAID Key	AOC-VROCSTNMOD	$ 176.00		1	Intel VROC Standard, RAID 0, 1, 10
	Intel VROC RAID Key	AOC-VROCPREMOD	$ 344.50		1	Intel VROC Premium, RAID 0, 1, 5, 10
Global Services & Support	OS4HR3/2/1			0	3/2/1-year onsite 24x7x4 service
Global Services & Support	OSNBD3/2/1			0	3/2/1-year onsite NBD service
Software	SFT-OOB-LIC •			1	OOB Management Package (per node license)
Software	SFT-DCMS-Single			1	DataCenter Management Package (per node license)

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
