| Main Specifications |

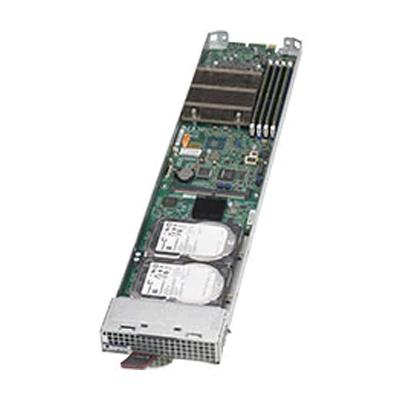

| Type | MicroBlade |
| Built-in Devices | B2SC1-CPU |
| Enclosure Color | Silver Grey |
| Processor |
| Compatible Processors | Support Intel Xeon processor E-2100 / E-2200 series |
| Compatible Socket | Single Socket H4 (LGA 1151), CPU TDP support up to 95W |
| System Memory |
| DIMM Sizes | 32GB |
| Error Detection | Corrects single-bit errors Detects double-bit errors (using ECC memory) |
| Memory Capacity | 4x DDR4 DIMM sockets |
| Supports up to 128GB DDR4 ECC VLP UDIMM |
| Memory Type | 2666MHz ECC DDR4 UDIMM |
| Memory Voltage | 1.2 V |
| On-Board Devices |
| Chipset | Intel C246 chipset |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Network Controllers | Dual 1GbE LAN ports |
| System BIOS |
| BIOS Features | Plug and Play (PnP), APM 1.2, SMBIOS 2.7.1 |
| BIOS Type | AMI 128Mb Flash EEPROM |
| Front Panel |
| LEDs | Power LED, Fault LED, Network Activity LED, UID / KVM LED |
| Drive Bays / Storage |
| Internal drives | 2x 2.5" NVMe/SATA3 drives |
| M.2 | M.2 Interface: 1 PCI-E 3.0 x4 |
| M.2 Key: M-Key |
| M.2 Form Factor: 2280/22110 |
| Others Storage | 1x SuperDOM |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 38°C (50°F to 100.4°F) |
| Electromagnetic Compatibility (EMC) |
| Europe | EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| United States / Canada | FCC- Emissions (US) Verification |
| Parts List - (Items Included) |
| Add-On Card | 1x AOM-BPNIO-MSH-P |
| Air Shroud | 1x MCP-310-31407-0N |
| Micro Blade Module Chassis | 1x MCP-620-31409-0N, 1x MCP-620-31411-0N, 1x MCP-620-31412-0N, 1x MCP-640-31409-0N |
| Motherboard / MicroBlade Sled | 1x MBD-B2SC1-CPU-P / 1x MCP-680-31408-0N |
