- Supermicro AOC-M25G-M4SM SIOM 4-Port 25Gb Ethernet Controller Card ConnectX-4 Lx EN with 1U bracket

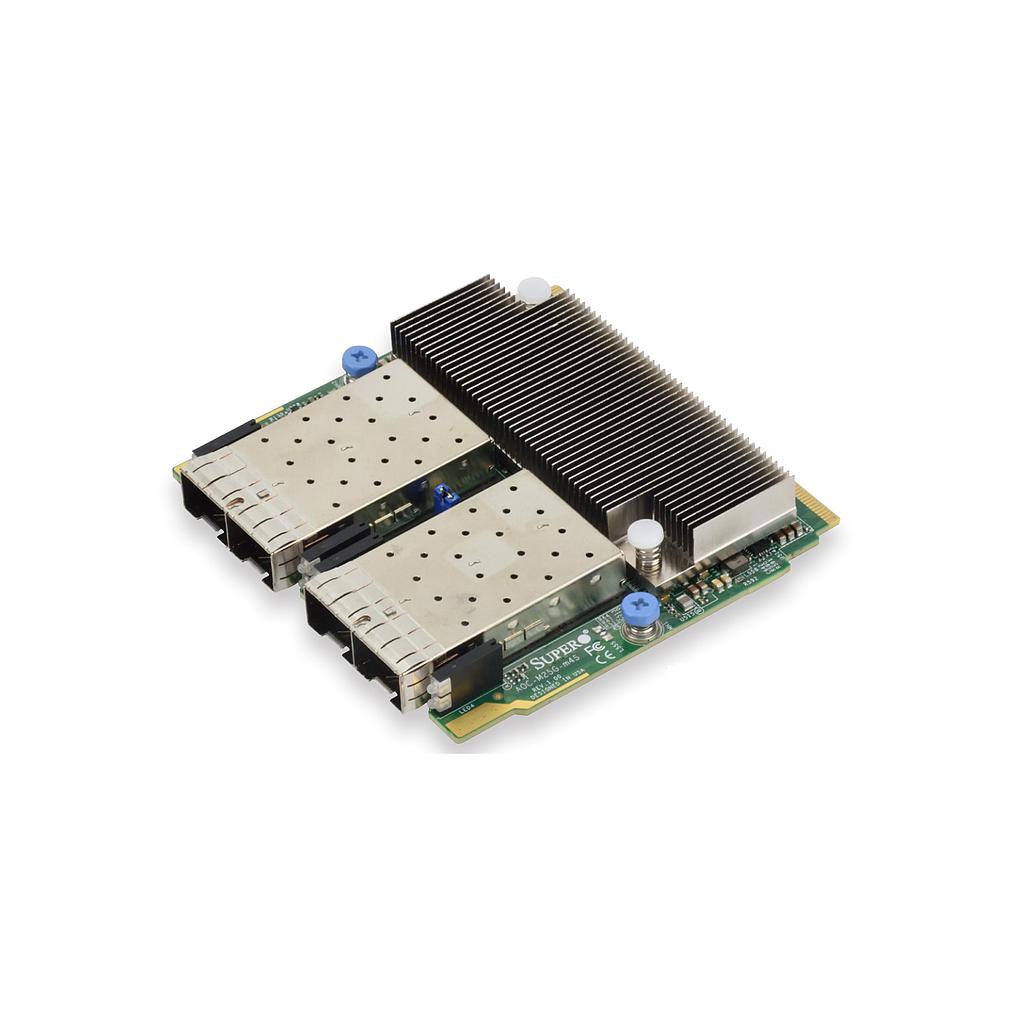

Supermicro AOC-M25G-M4SM SIOM 4-Port 25Gb Ethernet Controller Card ConnectX-4 Lx EN with 1U bracket
Asset Management Features with thermal sensor
Supermicro Super I/O Module (SIOM) Form Factor
Low latency RDMA over Converged Ethernet (RoCE)
SIOM 4-Port SFP28 25Gb Ethernet Controller Card CX-4 Lx EN with 1U bracket
4-ports of 25GbE SFP28 connectivity in small form factor SIOM
It provides unparalleled density, performance, and functionality
Based on the Mellanox® ConnectX-4 Lx EN with features such as VXLAN, NVGRE and RoCE
Compatible with 10GbE networks and is the most cost effective upgrade from 10GbE to 25GbE in Data Center and Cloud deployments
Extra Specifications for Supermicro AOC-M25G-M4SM SIOM 4-Port 25Gb Ethernet Controller Card ConnectX-4 Lx EN with 1U bracket
| Main Specifications | ||
| Device Type | Ethernet Controller Card | |
| Dimensions (WxDxH) | Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D) | |
| Form Factor | Super I/O Module (SIOM) | |
| CPU Offloads | RDMA over Converged Ethernet (RoCE), TCP/UDP/IP stateless offload, LSO, LRO, checksum offload, RSS (can be done on encapsulated packet), TSS, HDS, VLAN insertion/stripping, Receive flow steering, Intelligent interrupt coalescence | |
| Networking | ||
| Ethernet | 25GbE / 10GbE, IEEE 802.3ad, 802.1AX Link Aggregation, IEEE 802.1Q, 802.1P VLAN tags and priority, IEEE 1588v2, Jumbo frame support | |
| Networking | Wired | |
| Data Transfer Rate | 25Gbps | |
| Enhanced Features | Hardware-based reliable transport, Collective operations offloads, Vector collective operations offloads, 64/66 encoding, Dynamically Connected transport (DCT), Enhanced Atomic operations, Support for MSI/MSI-X mechanisms | |
| Storage Offloads | Stateless offloads for overlay networks and tunneling protocols, Hardware offload of encapsulation of NVGRE and VXLAN overlay networks | |
| Port Quantity | Quad SFP28 connectors with speed up to 25Gbps per port | |
| Hardware-based I/O Virtualization | Single Root IOV, Multi-function per port, Multiple queues per virtual machine, VMware NetQueue support | |
| Virtualization Features | SR-IOV: Up to 256 Virtual Functions, SR-IOV: Up to 16 Physical Functions per port | |
| Management Features | Remote boot over iSCSI, PXE and UEFI, NC-SI for remote management | |
| Power | ||
| Consumption Operational | 20W | |
| Environmental Parameters | ||
| Operating Temperature | Operating temperature: 0°C to 55°C (32°F to 131°F) | |
| Storage temperature: -40°C to 70°C (-40°F to 158°F) | ||
| Storage humidity: 90% non-condensing relative humidity at 35°C | ||
| Software / System Requirements | ||
| OS Supports | RHEL/CentOS (7.2, 7.1, 7.0, 6.8, 6.7, 6.6, 6.5, 6.2) | |
| Windows (2012 R2, 2012) | ||
| FreeBSD (11) | ||
| VMware (6.5, 5.5) | ||
| Miscellaneous | ||
| Features | SR-IOV for virtualization, Low latency RDMA over Converged Ethernet (RoCE), Jumbo Frames support, NC-SI for Remote Management, Asset Management Features with thermal sensor | |
| Supermicro Super I/O Module (SIOM) Form Factor, Mellanox® ConnectX-4 Lx EN 25GbE controller, Quad SFP28 connectors, Hardware offloads for NVGRE, VXLAN and GENEVE encapsulated traffic | ||
| Cables Required | SFP28 Direct attach copper cables, SFP28 Fiber-optic cables (with required optional transceivers) | |
| RoHS | RoHS Compliant 6/6 | |
| Bracket | 1x BKT-0120L | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
