- Supermicro PWS-601-1H 1U 600W 80 Plus Gold Level Multi-Output 24-pin Power Supply

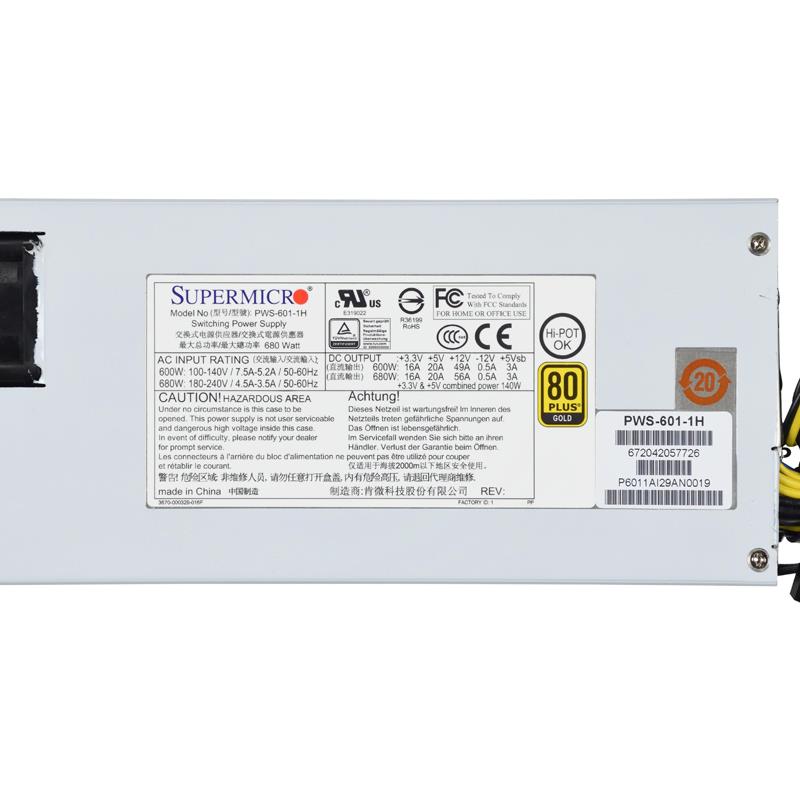

Supermicro PWS-601-1H 1U 600W 80 Plus Gold Level Multi-Output 24-pin Power Supply
• Designed for Supermicro 1U Server
• 600/680W Multi-output; 24pin output
• 80+ Gold; active PFC for high efficiency
Power Supply 1U, 600W 80 Plus Gold Level Certified w/ PFC, Multi-output
The Supermicro PWS-601-1H is an 80 Plus Gold power supply capable of supplying 600W low-line and 680W high-line output power. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. Features a card edge connector for connection with the backplane of compatible Supermicro 1U systems. This power supply is designed to not only provide you reliable power to your high-performance workstation but also protect it from over voltage, over current, and short circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.
Cables Included:
1x 24 Pin ATX (Motherboard)
1x 8 Pin 12V (CPU)
1x (4+4) 8 Pin 12V (CPU)
2x 4 Pin Legacy HDD
Extra Specifications for Supermicro PWS-601-1H 1U 600W 80 Plus Gold Level Multi-Output 24-pin Power Supply
| Main Specifications | ||
| Dimension(s) (WxDxH) | 3.9 in x 8.7 in x 1.6 in | |
| Height (Rack Units) | 1U | |
| Weight | 2.2 lbs | |
| Power | ||
| Power Device | Internal | |
| Power Device | ||
| Power Provided | 600 Watt | |
| Frequency Required | 50/60 Hz | |
| Input Voltage | AC 100-240 V | |
| Output Connector(s) | 1 x power 24 pin ATX, 1 x power 8 pin +12V with detachable 4 pin section | |
| Output Current | +5V - 20 A, +12V - 49 A, +3.3V - 16 A, +5VSB - 3 A, -12V - 0.5 A | |
| Output Voltage | +3.3, +5, 12 V | |
| Efficiency | 90%+ | |
| PCF | Power Factor Correction (PFC) | |
| Power Supply | ||
| Certification | 80 PLUS Gold Certified | |
| Miscellaneous | ||
| Compatible Products | SC512 F-600B, SC811 L-600B, TQ-600B, SuperServer 6016T-MTHF | |
| Warranty: | 3 years, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
