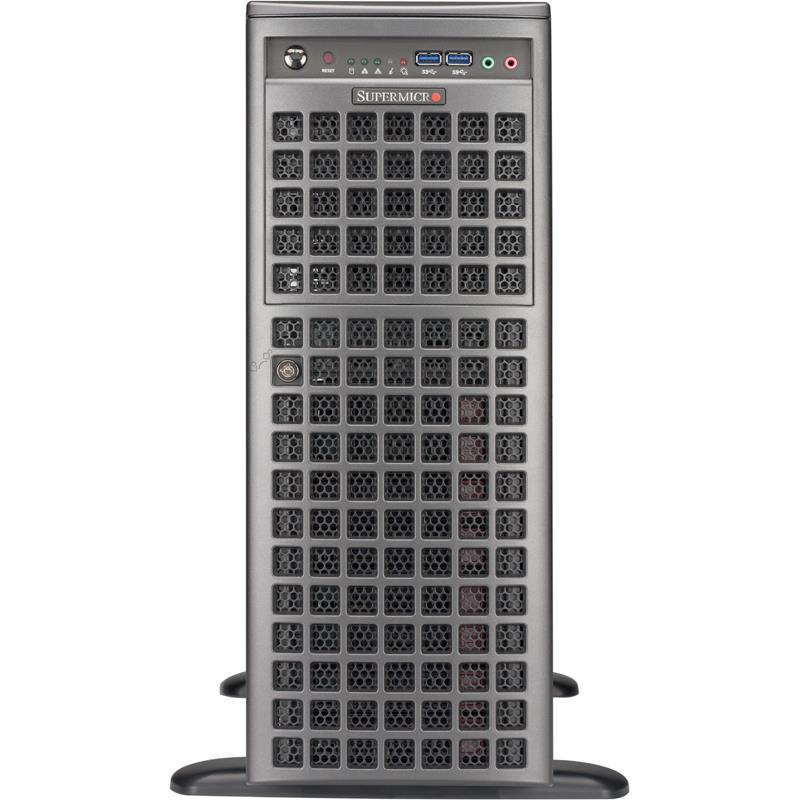

Supermicro SYS-5049A-TR Tower Barebone Single Processor
Barebone Tower for single Xeon Scalable Gen.2 Processor. Up to 3TB DDR4-2933MHz memory in 12 DIMM slots. 8x SATA3 ports with RAID support, 1x 1GbE LAN and 1x 10GbE LAN ports, 4x PCI-E 3.0 x16 and 3 PCIe 3.0 x8, 1x M.2. 2200W Titanium Power Supply (CSE-747BTS-R2K20BP + MBD-X11SPA-T)
This product is no longer available.
1. Single Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡ Intel® Xeon® W-32xx processor
2. Intel® Xeon® Scalable Processors: Up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots. Intel® Xeon® W-3200 Processors: Up to 2TB 3DS ECC L/RDIMM; up to 1TB 3DS L/RDIMM.
3. 4 PCI-E 3.0 x16, 3 PCI-E 3.0 x8 (in x16 slot) M.2 Interface: 4 PCI-E 3.0 x4, RAID 0, 1 M.2 Form Factor: 2242/2260/2280/22110 M.2 Key: M-Key
4. 1x 10GBase-T and 1x 1GbE LAN ports
5. 8 Hot-swap 3.5" SAS/SATA bay with SGPIO
6. 1 VGA port, VGA connector is dedicated for IPMI
7. 7.1 HD Audio
8. 2200W Redundant (1+1) Power Supplies Titanium Level Certified
Extra Specifications for Supermicro SYS-5049A-TR Tower Barebone Single Processor
| Motherboard | ||
| Motherboard | Super X11SPA-T | |
| Processor/Cache | ||
| CPU | Single Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ | ||
| Support CPU TDP up to 205W | ||
| Intel® Xeon® W-32xx Processors | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) | |
| System Memory | ||
| Memory Capacity | 12 DIMM slots | |
| Intel® Xeon® Scalable Processors: Support up to 3TB 3DS ECC RDIMM, DDR4-2933MHz; up to 2TB 3DS ECC LRDIMM, DDR4-2933MHz; or 3TB DCPMM, DDR4-2666MHz, in 12 DIMM slots. | ||
| Intel® Xeon® W-3200 Processors: Support up to 2TB 3DS ECC RDIMM/LRDIMM; up to 1TB 3DS RDIMM/LRDIMM. | ||
| Note | This system doesn't support DCPMM | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Single LAN with Realtek RTL8211E PHY (dedicated IPMI) | |
| Single LAN with Intel® Ethernet Controller I210-AT | ||
| Single LAN with Aquantia® AQC107 10G Ethernet Controller | ||
| Audio | 7.1 channel HD Audio by Realtek ALC888S | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) ports | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 1 RJ45 Gigabit Ethernet LAN port | ||
| 1 RJ45 10GBase-T Ethernet LAN port | ||
| USB | 6 USB 3.1 Gen1 ports (4 rear, 2 headers) | |
| 4 USB 3.1 Gen2 ports (1 rear Type A + 1 Rear Type C) | ||
| 2 USB 2.0 ports (2 headers, Type A) | ||
| Video | 1 VGA port | |
| Audio | 7.1 HD Audio with optical S/PDIF | |
| Serial Port / Header | 1 COM port (header) | |
| DOM | 2 SuperDOM (Disk on Module) ports | |
| TPM | 1 TPM 2.0 Header | |
| System BIOS | ||
| BIOS Type | 256Mb SPI Flash with AMI BIOS | |
| Management | ||
| Software | Watchdog | |
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable / Tower | |
| Optional Rackmount Kit | ||
| Model | CSE-747BTS-R2K20BP | |
| Dimensions and Weight | ||
| Height | 18.1" (460mm) | |
| Width | 7.0" (178mm) | |
| Depth | 26.5" (673mm) | |
| Weight | Gross Weight: 72 lbs (32.66 kg) | |
| Net Weight: 57 lbs (25.85 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| Network activity LEDs | ||
| Hard drive activity LED | ||
| System Overheat / Fan Fail LED | ||
| Ports | 2 front USB 3.0 Ports | |
| Expansion Slots | ||
| PCI-Express | 4 PCI-E 3.0 x16 slots | |
| 3 PCI-E 3.0 x8 (in x16 slot) | ||
| PCI-E x16 Slot#1 shares with M.2, Slot#2 shares with Slot#3 (NA/16,8/8), Slot#4 shares with Slot#5 (NA/16,8/8), Slot#6 shares with Slot#7 (NA/16,8/8) (16/NA/16/NA/16/NA/16 or 16/8/8/8/8/8/8) | ||
| M.2 | Key: M-Key | |
| Form Factor: 2260, 2280, 22110 | ||
| M.2 Interface: PCI-E 3.0 x4 | ||
| M.2 shares PCI-E lanes with PCI-Ex16 slot#1, VROC key is required for RAID | ||
| Drive Bays | ||
| Hot-swap | 8 Hot-swap 3.5" SAS2/SATA3 drive bays (SATA3 default) | |
| Peripheral Bay(s) [90 o Rotatable] | 3x 5.25" drive bays | |
| Backplane | ||
| Backplane | Supports 8 SATA3 or 8 SAS2 HDD | |
| System Cooling | ||
| Fans | 4x 92mm hot-swap fan(s) | |
| 2x 80mm rear hot-swap exhaust PWM fan(s) | ||
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power and Input | 1200W with Input 100-127Vac | |
| 1800W with Input 200-220Vac | ||
| 1980W with Input 220-230Vac | ||
| 2090W with Input 230-240Vac | ||
| 2200W with Input 220-240Vac (for UL/cUL use only) | ||
| 2090W with Input 230-240Vdc (for CCC only) | ||
| AC Input Frequency | 50-60Hz | |
| Dimension (W x H x L) | 76 x 40 x 336 mm | |
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 183.3A / Min: 0A (220-240Vac) | ||
| 5VSB | Max: 1A / Min: 0A | |
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SYS-5049A-TR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SPA-T | 1 | Super X11SPA-T Motherboard | |
| Motherboard / Chassis | CSE-747BTS-R2K20BP | 1 | 4U Chassis | |
| Backplane | BPN-SAS-747TQ | 1 | 4u, SAS Backplane,x8 3.5" HDD; SC747's; AMI 9072 support I2C & GPIO. | |
| Cable 1 | CBL-0484L | 8 | SATA,INT,ROUND,ST-ST,55CM,30AWG | |
| Cable 2 | CBL-CDAT-0661 | 2 | CBL,SGPIO,2X4F TO 2X4F,P2.54,ROUND CABLE,40CM,28AWG | |
| Parts | MCP-260-00142-0N | 1 | STD I/O Shield for X11SPA-T with EMI Gasket | |
| Manual | MNL-2219-QRG | 1 | SYS-5049A-TR Quick Reference Guide | |
| * Power Supply | PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm | |
| * Cable 3 | CBL-0071L | 1 | CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AW | |
| * Cable 4 | CBL-0286L | 2 | 4 to 4 pin rear fan pwr ext w/ square header, 30cm (PWM). 24AWG | |
| * Cable 5 | CBL-0160L | 2 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) | |
| * Cable 6 | CBL-0216L | 4 | 4 PIN TO 4 PIN MIDDLE FAN POWER EXTENSION, 20cm. 24AWG(PWM) | |
| * FAN 1 | FAN-0138L4 | 2 | 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU | |
| * FAN 2 | FAN-0082L4 | 2 | 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745 | |
| * FAN 3 | Fan-0114L4 | 2 | 92x38mm 4-PIN PWM FAN W/ HUS for SC747 | |
| * Drive Tray(s) | MCP-220-00094-0B | 8 | Black gen 6.5 hot-swap 3.5 inch HDD Tray | |
| * Drive Tray(s) | MCP-220-00073-0B | 3 | Black 5.25 drive tray w/o rail (SC747) |
