• Supports Intel/AMD Quad processors
• 6 x 3.5 hot-swap SAS/SATA drive bay
• Redundant 1400W power supply w/ PMBus
• Chassis optimized for MBs size 16.48 x 14.3

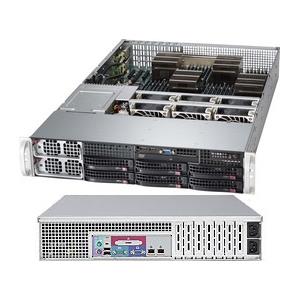

Rackmount 2U EATX w/ 1400W Redundant Power Supply, for Quad Intel / AMD Processors - 6x 3.5in SAS / SATA Hot-swap drive trays, SAS/Sata Backplane w/ SES-II, 7x Low-Profile Full-Length Expansion Slots, DVD-Rom, Mounting Rails Kit (Black)
• 6x 80mm 6500 RPM Fan
• Slim DVD-ROM Drive (optional)
• Front USB + COM Port (optional)
• 6x 3.5 Hot-swap SAS/SATA Drive Bays
• 7x Low-profile, Full-length I/O Expansion Slot
• 1400W Redundant High-efficiency (80Plus Gold) Power Supplies
• Full SES2 support is available with SAS motherboards and other compatible components
| Main Specifications | ||
| Device Type | SuperChassis 828TQ+-R1400LPB | |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 27.9" (709 mm) | |
| Color | Black | |
| Form Factor | 2U chassis support for max. motherboard size - 16.48" x 14.3" E-ATX (Quad-processor motherboards) | |
| Weight | 55.4 lbs (25.1kg) | |
| Processor | ||
| Compatible Processors | Supports Intel / AMD Quad processors motherboards(except X8 motherboard) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 7x low-profile full-length expansion slots | |
| Drive Bays | ||
| Hot-swap | 6 x 3.5" SAS / SATA Hot-swap drive trays SAS or enterprise SATA HDD only recommended | |
| Front Panel | ||
| Buttons | Power On/Off button, System Reset button | |
| LEDs | Power LED, Hard drive activity LED, 2x Network activity LEDs, System Overheat LED, Power Fail LED | |
| Networking | ||
| Ports | 2x USB Ports + DB9 COM Port (optional) | |
| System Cooling | ||
| Fans | FAN-0099L4 | |
| 6x 80mm 6500 RPM fans | ||
| SAS / SATA Backplane | ||
| SAS / SATA Backplane | 1x 2U SAS / SATA backplane w/ SES-II | |
| Operating Environment (System) | ||
| Operating Temperature Range | Operating Temperature Range 10 - 35C (50 - 95F) | |
| Humidity Range 8 - 90% non-condensing | ||
| Non-Operating Temperature Range -40 - 70C (-40 - 158F) | ||
| Non-Operating Humidity Range 5 - 95% non-condensing | ||
| Power Supply | ||
| Certification | 80 PLUS Gold Certified | |
| Power Supply | Redundant 1400W high-efficiency power supply with PMBus | |
| PWS-1K41F-1R | ||
| Regulatory Safety / EMC | USA - UL listed, Canada - CUL listed, Germany - TUV Certified, EN 60950/IEC 60950-Compliant, CB Report, CCC Certification | |
| Standard Parts List | ||
| Accessory | MCP-290-00007-01 | |
| MCP-280-82801-0N, MCP-320-82801-0N, MCP-220-00001-01, MCP-220-00023-01, MCP-220-82502-0B, MCP-120-82801-0N, MCP-270-00008-00, MCP-250-00001-00, MCP-240-00037-00 | ||
| Chassis | CSE-828TQ+-R1400LPB | |
| Parts List - (Items Included) | ||
| Backplane | BPN-SAS-828TQ | |
| Mounting Rails | MCP-290-00053-0N | |
| Parts List | ||
| Cables | CBL-0154L, CBL-0160L, CBL-0222L | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
