Supermicro AS-1114S-WN10RT Barebone 1U A+ AMD EPYC 7002 Series

• • Virtualization
• • Cloud Computing
• • All Flash Storage

Barebone 1U Rackmount for Single AMD EPYC 7002, up to 4TB DDR4 ECC 3200MHz memory in 16 DIMM slots, 10 Hot-Swap U.2 Gen4/Gen3 NVMe Drive bays (optional support for 10 SATA3 via additional cables), Dual 10BaseT LAN ports, IPMI 2.0 + KVM, Redundant 750W Power Supplies (CSE-116TS-R706WBP5-N10 + MBD-H12SSW-NTR)



    Option not available


    This combination does not exist.

    Add to Cart

    1. Single AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
    3. 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
    4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
    5. 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support
    6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
    7. 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)
    8. 2 SuperDOM (Disk on Module) ports
    9. 750W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)

    Extra Specifications for Supermicro AS-1114S-WN10RT Barebone 1U A+ AMD EPYC 7002 Series

    Product SKUs
    AS -1114S-WN10RTA+ Server 1114S-WN10RT ( Black )
    MotherboardSuper H12SSW-NTR
    CPUSingle AMD EPYC™ 7003/7002 Series Processor (7003 Series Processor drop-in support requires BIOS version 2.0 or newer)
    Socket SP3
    Support CPU TDP up to 280W
    CoresUp to 64 Cores

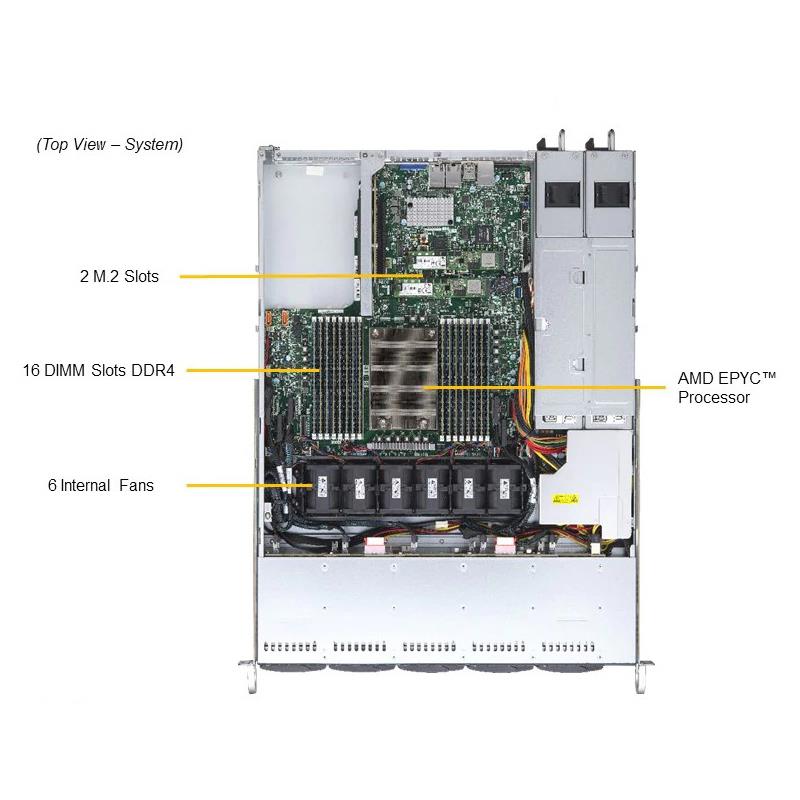

    System Memory
    Memory Capacity16 DIMM slots
    Memory TypeDDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
    On-Board Devices
    ChipsetSystem on Chip
    SATASATA3 (6Gbps)
    Network ControllersDual 10GBase-T LAN with via Broadcom BCM57416
    IPMISupport for Intelligent Platform Management Interface v.2.0
    IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    VideoASPEED AST2500 BMC

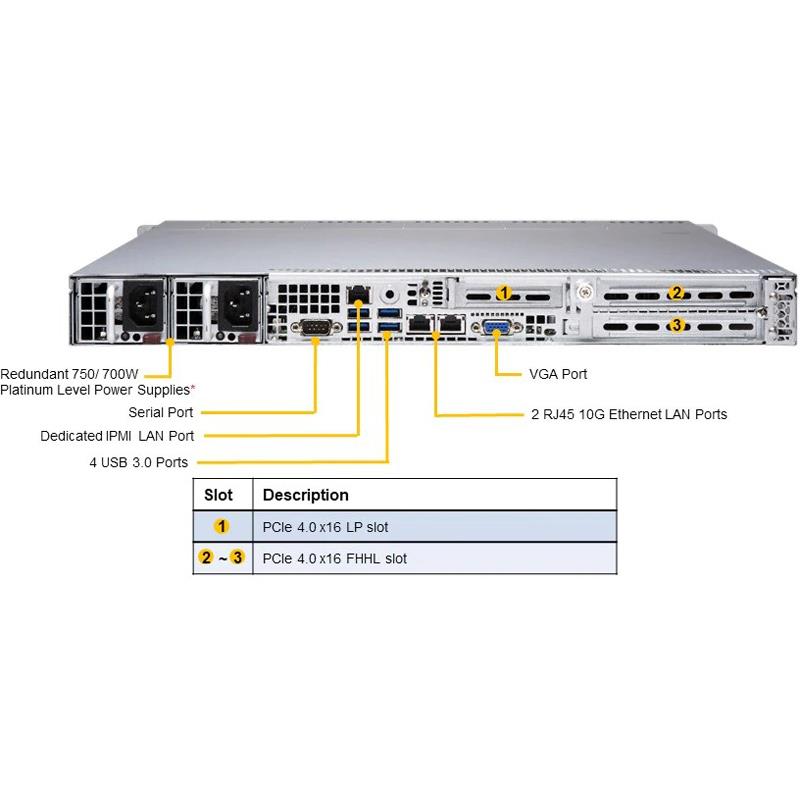

    Input / Output
    SATA2 SATA3 (6 Gbps) ports
    LAN2 RJ45 10GBase-T ports
    1 RJ45 Dedicated IPMI LAN port
    USB7 USB 3.0 ports (4 rear, 2 front, 1 Type A)
    Video1 VGA port
    DOM2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS TypeAMI 256Mb SPI Flash ROM
    SoftwareWatch Dog
    Super Doctor 5
    IPMI 2.0 , KVM with dedicated LAN
    Power ConfigurationsACPI / APM Power Management
    PC Health Monitoring
    CPU4+1 Phase-switching voltage regulator
    Monitors for CPU Cores, Chipset Voltages, Memory.
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    Form Factor1U Rackmount
    Dimensions and Weight
    Width17.2" (437mm)
    Height1.7" (43mm)
    Depth23.5" (597mm)
    Package7.63" (H) 23.42" (W) 31.45" (D)
    WeightNet Weight: 25 lbs (11.34 kg)
    Gross Weight: 39 lbs (17.69 kg)
    Available ColorsBlack

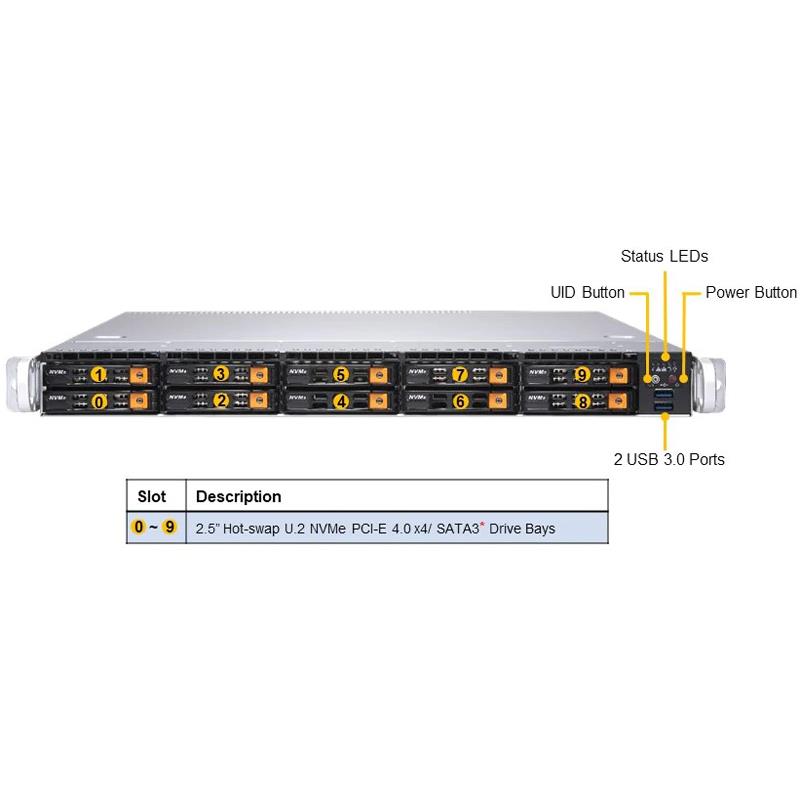

    Front Panel
    ButtonsPower On/Off button
    UID button
    LEDsNetwork activity LEDs
    Power status LED
    HDD activity LED
    Universal Information (UID) LED
    Expansion Slots
    PCI-Express1 PCI-E 4.0 * x16 (LP) slot
    * Limited Support : On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed.
    2 PCI-E 4.0 x16 (FHHL) slots
    2 PCI-E  4.0 x2 NVMe M.2 slots
    Drive Bays
    Hot-swap10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support
    BackplaneSupports 10 NVMe or 10 SATA3
    System Cooling
    Fans6 heavy duty fans with Optimal Fan Speed Control
    AC/DC240V Input Redundant Power Supply
    AC/DC240V Input Redundant Power Supply700W/750W Redundant Power Supplies with PMBus
    Total Output Power700W: 100 - 140Vac
    750W: 200 - 240Vac
    750W: 200 - 240Vdc (for CCC only)
    Dimension (W x H x L)54.5 x 40.25 x 320 mm
    Input100 - 140Vac / 8 - 6A / 50-60Hz
    200 - 240Vac / 4.5 - 3.8A / 50-60Hz
    200 - 240Vdc / 4.5 - 3.8A (CCC Only)
    +12VMax: 58A / Min: 0.5A (100 - 140Vac)
    Max: 62A / Min: 0.5A (200 - 240Vac)
    Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only)
    +5V sbMax: 3A / Min: 0A
    Output TypeGold Finger Connector Mating with Molex 45984-4343
    CertificationPlatinum Certified
    Operating Environment
    RoHSRoHS Compliant
    Environmental Spec.Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    NamePart NumberQuantityDescription
    Motherboard / ChassisMBD-H12SSW-NTR1Super H12SSW-NTR Motherboard
    Motherboard / ChassisCSE-116TS-R706WBP5-N1011U Chassis
    BackplaneBPN-SAS3-LB16A-N1011U 10-Slot SFF Backplane Supports 10x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 2x(1x4) + 1x(2x2) Power Connectors, HF, RoHS
    CableCBL-SAST-1221D-852Slimline x8 (LE) to Slimline x8 (STR),20CM,85 OHM
    CableCBL-SAST-1222-852Slimline X8 (LE) to Slimline X8 (STR), 22CM,85 OHM
    CableCBL-SAST-1222-1001Slimline x8 (LE) to 2x Slimline x4 (STR),22/22CM,100 OHM
    CableCBL-SAST-1236-1001Slimline x8 (LE) to 2x Slimline x4 (STR),36/36CM,100 OH
    Riser CardRSC-W-66G411U LHS WIO Riser card with two PCI-E 4.0 x16 slots,HF,RoHS
    Riser CardRSC-WR-611U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS
    Heatsink / RetentionSNK-P0062P11U Passive CPU Heat Sink for AMD Socket SP3 Processors
    Power SupplyPWS-706P-1R21U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
    Power DistributorPDB-PT112-24241SC112 24PIN REDUNDANT PWS DISTRIBUTOR
    FANFAN-0141L4640x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan
    Drive Tray(s)MCP-220-00167-0B10Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
    Rail SetMCP-290-00063-0N1setRail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH
