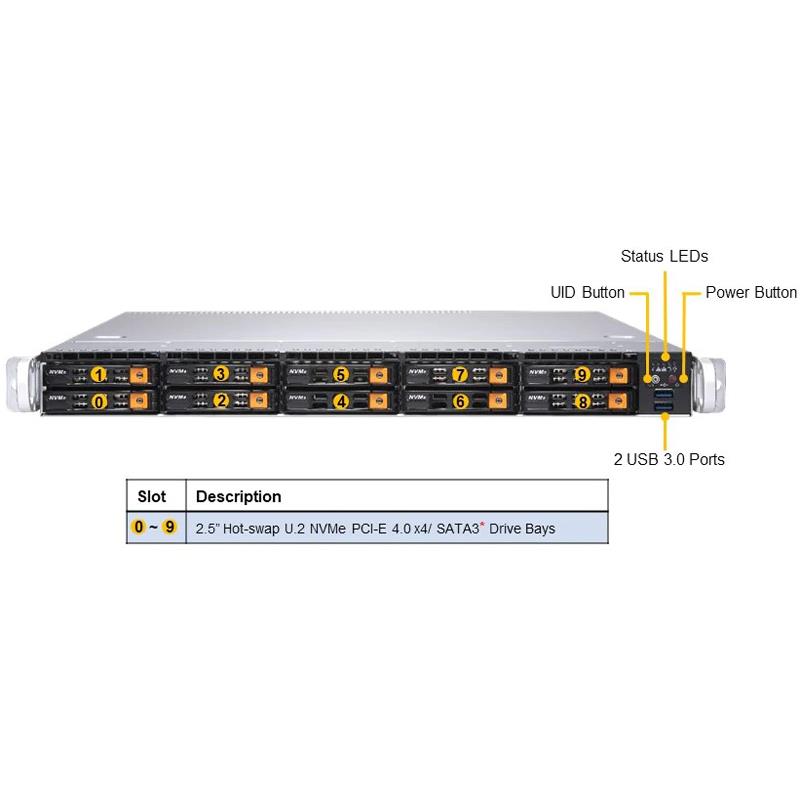

Supermicro AS-1114S-WN10RT Barebone 1U A+ AMD EPYC 7002 Series
• Virtualization
• Cloud Computing
• All Flash Storage
Barebone 1U Rackmount for Single AMD EPYC 7002, up to 4TB DDR4 ECC 3200MHz memory in 16 DIMM slots, 10 Hot-Swap U.2 Gen4/Gen3 NVMe Drive bays (optional support for 10 SATA3 via additional cables), Dual 10BaseT LAN ports, IPMI 2.0 + KVM, Redundant 750W Power Supplies (CSE-116TS-R706WBP5-N10 + MBD-H12SSW-NTR)
- AS -1114S-WN10RT
1. Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
2. 16 DIMMs; up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM
3. 2 PCI-E 4.0 x16 (FHHL) slots, 1 PCI-E 4.0 x16 (LP) slot
4. Integrated IPMI 2.0 + KVM with dedicated LAN • Software Out of Band License key ( SFT-OOB-LIC ) included for OOB BIOS management
5. 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support
6. 2x 10GBase-T LAN ports via Broadcom BCM57416 Controller
7. 1 VGA, 7 USB 3.0 (4 rear, 2 front, 1 Type A)
8. 2 SuperDOM (Disk on Module) ports
9. 750W Redundant Power Supplies Platinum Level High-efficiency (Full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-1114S-WN10RT Barebone 1U A+ AMD EPYC 7002 Series
Motherboard | ||
Motherboard | Super H12SSW-NTR | |
Processor/Cache | ||
CPU | Socket SP3 | |
Support CPU TDP up to 280W | ||
Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) | ||
Cores | Up to 64 Cores | |
System Memory | ||
Memory Capacity | 16 DIMM slots | |
Up to 4TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
On-Board Devices | ||
Chipset | System on Chip | |
SATA | SATA3 (6Gbps) | |
Network Controllers | Dual 10GBase-T LAN with via Broadcom BCM57416 | |
IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
Video | ASPEED AST2500 BMC | |
Input / Output | ||
SATA | 2 SATA3 (6 Gbps) ports | |
LAN | 2 RJ45 10GBase-T ports | |
1 RJ45 Dedicated IPMI LAN port | ||
USB | 7 USB 3.0 ports (4 rear, 2 front, 1 Type A) | |
Video | 1 VGA port | |
DOM | 2 Super DOM (Disk on Module) ports | |
System BIOS | ||
BIOS Type | AMI 256Mb SPI Flash ROM | |
Management | ||
Software | Watch Dog | |
NMI | ||
SUM | ||
Super Doctor 5 | ||
IPMI 2.0 , KVM with dedicated LAN | ||
Power Configurations | ACPI / APM Power Management | |
PC Health Monitoring | ||
CPU | 4+1 Phase-switching voltage regulator | |
Monitors for CPU Cores, Chipset Voltages, Memory. | ||
FAN | Status monitor for speed control | |
Pulse Width Modulated (PWM) fan connectors | ||
Fans with tachometer monitoring | ||
Temperature | Monitoring for CPU and chassis environment | |
Thermal Control for fan connectors | ||
Chassis | ||
Form Factor | 1U Rackmount | |
Model | CSE-116TS-R706WBP5-N10 | |
Dimensions and Weight | ||
Width | 17.2" (437mm) | |
Height | 1.7" (43mm) | |
Depth | 23.5" (597mm) | |
Package | 7.63" (H) 23.42" (W) 31.45" (D) | |
Weight | Net Weight: 25 lbs (11.34 kg) | |
Gross Weight: 39 lbs (17.69 kg) | ||
Available Colors | Black | |
Front Panel | ||
Buttons | Power On/Off button | |
UID button | ||
LEDs | Network activity LEDs | |
Power status LED | ||
HDD activity LED | ||
Universal Information (UID) LED | ||
Expansion Slots | ||
PCI-Express | 1 PCI-E 4.0 * x16 (LP) slot | |
* Limited Support : On some PCI-E 4.0 devices, it will only run at PCI-E 3.0 speed. | ||
2 PCI-E 4.0 x16 (FHHL) slots | ||
2 PCI-E 4.0 x2 NVMe M.2 slots | ||
Drive Bays | ||
Hot-swap | 10 Hot-swap U.2 NVMe4/NVMe3/SATA3 fully hybrid drive support | |
Backplane | ||
Backplane | Supports 10 NVMe or 10 SATA3 | |
System Cooling | ||
Fans | 6 heavy duty fans with Optimal Fan Speed Control | |
AC/DC240V Input Redundant Power Supply | ||
AC/DC240V Input Redundant Power Supply | 700W/750W Redundant Power Supplies with PMBus | |
Total Output Power | 700W: 100 - 140Vac | |
750W: 200 - 240Vac | ||
750W: 200 - 240Vdc (for CCC only) | ||
Dimension (W x H x L) | 54.5 x 40.25 x 320 mm | |
Input | 100 - 140Vac / 8 - 6A / 50-60Hz | |
200 - 240Vac / 4.5 - 3.8A / 50-60Hz | ||
200 - 240Vdc / 4.5 - 3.8A (CCC Only) | ||
+12V | Max: 58A / Min: 0.5A (100 - 140Vac) | |
Max: 62A / Min: 0.5A (200 - 240Vac) | ||
Max: 62A / Min: 0.5A (200 - 240Vdc) (CB/CCC Only) | ||
+5V sb | Max: 3A / Min: 0A | |
Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
Certification | Platinum Certified | |
Operating Environment | ||
RoHS | RoHS Compliant | |
Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
Operating Relative Humidity: 8% to 90% (non-condensing) | ||
Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
Product SKUs | ||
Product SKUs | A+ Server 1114S-WN10RT (Black) |
Name | Part Number | Price | Add to Cart | Qty. | Description | |
---|---|---|---|---|---|---|
Storage Controller card & cable | AOC-S3008L-L8e& 1x CBL-SAST-1295-100 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 122HDD, HBAMINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG | |||
Storage Controller card & cable | AOC-S3008L-L8i& 1x CBL-SAST-1295-100 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 63HDD, RAID 0,1,1EMINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG | |||
Storage Controller card & cable | AOC-S3108L-H8iR& 1x CBL-SAST-1295-100 | 0 | Std LP, 8 WIO L ports, 12Gb/s per port- Gen3, 240HDD, RAID 0, 1, 5, 6, 10, 50, 60MINI SAS HD-SlimSAS x4,12G,INT,95CM,30AWG | |||
Cable Management Arm | MCP-290-00085-0N | $ 78.00 | 0 | Supermicro Cable Management Arm for 1U Chassis | ||
TPM | AOM-TPM-9655V | $ 43.00 | 0 | Vertical TPM with Infineon 9655 TCG 1.2 | ||
TPM | AOM-TPM-9665V | $ 43.00 | 0 | AOM-TPM-9665V using SLB9665 Chipset supporing TPM2.0,RoHS/REACH | ||
SATADOM | SSD-DM128-SMCMVN1 | $ 140.50 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
SATADOM | SSD-DM064-SMCMVN1 | $ 84.00 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
SATADOM | SSD-DM032-SMCMVN1 | $ 60.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
Optional Kit for 10 SATA Drive Support | MCP-220-00147-0B | $ 28.50 | 0 | Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design) | ||
Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
Coverage: | Replacement or repair |
Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
