- Supermicro AS-2124BT-HNTR 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
Supermicro AS-2124BT-HNTR 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
• Compute Intensive Applications
• HPC, Data Center, Enterprise Server
• Hyperscale / Hyperconverged
Barebone 2U Rack Server Socket-SP3 for Dual AMD EPYC 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer), 4x hot-pluggable systems (Nodes). Each node supports up to 4TB DDR4 Registered ECC 3200Mhz LRDIMM in 16 DIMM slots; 6x Hot-Swap 2.5in (4x NVMe + 2 SATA3, or 6 SATA3) Drive Bays; Optional SIOM Network; IPMI 2.0 + KVM with dedicated LAN; (MBD-H12DST-B + CSE-217BHQ+-R2K22BP).- AS -2124BT-HNTR
To maintain quality and integrity, this product is sold only as a completely-assembled system (with minimum 2 CPUs, 8 DIMMs, 1 HDD and 1 SIOM card per node).
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Extra Specifications for Supermicro AS-2124BT-HNTR 2U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard (per Node) | ||
| Motherboard (per Node) | Super H12DST-B | |
| Processor/Chipset (per Node) | ||
| CPU | Socket SP3 | |
| Dual AMD EPYC™ 7003/7002 Series Processors (7003 Series Processor drop-in support requires BIOS version 2.0 or newer) | ||
| Support CPU TDP / cTDP up to 225W * | ||
| Cores | Up to 64 Cores | |
| System Memory (per Node) | ||
| Memory Capacity | 16 DIMM slots | |
| Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs | ||
| 8-channel memory bus | ||
| For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks | ||
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| Memory Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices (per Node) | ||
| Chipset | System on Chip | |
| Storage | SATA3 (6Gbps) via AMD EPYC | |
| NVMe | ||
| Network | 1 PCI-E 4.0 x16 SIOM LAN Networking Slot for flexible networking, see SIOM LAN options support matrix (Must bundle with at least one SIOM network card) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output (per Node) | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| Provided via SIOM (optional) | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA port | |
| DOM | 1 Super DOM (Disk on Module) port | |
| Others | 1 COM port (header) | |
| 1 TPM 2.0 header | ||
| System BIOS (per Node) | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management (per Node) | ||
| Software | IPMI 2.0 | |
| KVM with dedicated LAN | ||
| SSM , SUM | ||
| SuperDoctor® 5 | ||
| Watch Dog | ||
| Power Configurations | ACPI / APM Power Management | |
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-217BHQ+-R2K22BP | |
| Dimensions and Weight | ||
| Width | 17.68" (449mm) | |
| Height | 3.47" (88mm) | |
| Depth | 28.75" (730mm) | |
| Package | 24.33" (618mm) H x 9.57" (243mm) W x 45.08" (1145mm) D | |
| Weight | Net Weight: 54.5 lbs (24.7 kg) | |
| Gross Weight: 85 lbs (38.6 kg) | ||
| Available Colors | Black | |
| Front Panel (per Node) | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Power status LED | |
| HDD activity LED | ||
| Network activity LEDs | ||
| Universal Information (UID) LED | ||
| Expansion Slots (per Node) | ||
| PCI-Express | 1 SIOM card support (must bundle with network card) | |
| 2 PCI-E 4.0 (x16) Low-profile slots | ||
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| Interface: 1 SATA/PCI-E 3.0 x4 and 1 PCI-E 3.0 x4 | ||
| Drive Bays (per Node) | ||

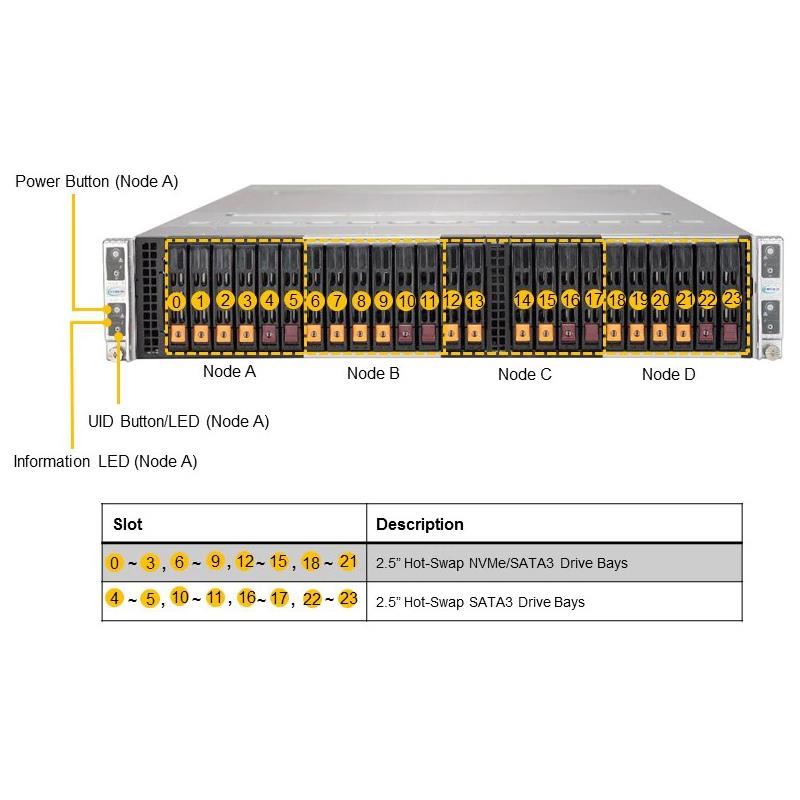

| Hot-swap | 4 Hot-swap 2.5" NVMe (Gen3)/SATA3 + 2 Hot-swap 2.5" SATA3 drive bays Note: NVMe Gen4 drives may only operate at Gen3 speed | |
| System Cooling | ||
| Fans | 4 Heavy duty 8cm PWM fans | |
| Power Supply | ||
| Power Supply | 2200W Redundant Power Supplies with PMBus | |
| Total Output Power | 1200W/1800W/1980W/2090/2200W | |
| Dimension (W x H x L) | 45 x 40 x 480 mm | |
| Input | 1200W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2090W: 230-240Vac / 50-60Hz | ||
| 2090W: 180-220Vac (for UL/cUL only) | ||
| 2200W: 220-240Vac (for UL/cUL only) | ||
| 2090W: 230-240Vdc (for CCC only) | ||
| +12V | Max: 150A / Min: 0A (200-220Vac) | |
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 100A / Min: 0A (100-127Vac) | ||
| Max: 174.17A / Min: 0A (230-240Vac) | ||
| Max: 174.17A / Min: 0A (180-220Vac, UL/cUL only) | ||
| Max: 183.33A / Min: 0A (220-240Vac, UL/cUL only) | ||
| Max: 174.17A / Min: 0A (230-240Vdc, CCC only) | ||
| 12Vsb | Max: 2.1A / Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C ~ 30°C (50°F ~ 86°F) * Support for operating above 30°C is available in certain system configurations. Contact your Supermicro sales rep or Technical Support for more details. | ||
| Product SKUs | ||
| Product SKUs | A+ Server 2124BT-HNTR (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Power Supply | PWS-3K04A-1R | $ 745.00 | 0 | 1U 1400W/2880W/3000W AC/DC PSU with C21 inlet, Titanium, For Bigtwin | ||
| Power Supply | PWS-2K60A-1R | 0 | 1U 2600W Redundant Titanium PWS, 45(W) X 40(H) X 480(L) | |||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) | |||
| TPM security module | AOM-TPM-9655V | $ 43.00 | 0 | TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF; | ||
| TPM security module | AOM-TPM-9665V | $ 43.00 | 0 | TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF; | ||
| SATADOM | SSD-DM128-SMCMVN1 | $ 140.50 | 0 | SMC SATADOM, 128GB, SATA 6Gb/s, MLC, uSSD, 15nm,HF,RoHS/REACH | ||
| SATADOM | SSD-DM480-SMCMVN1 | 0 | SMC SATADOM,480GB,SATA 6Gb/s,3D TLC,uSSD,HF,RoHS | |||
| SATADOM | SSD-DM064-SMCMVN1 | $ 84.00 | 0 | SMC SATADOM,64GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | SSD-DM032-SMCMVN1 | $ 60.50 | 0 | SMC SATADOM,32GB,SATA 6Gb/s,MLC,uSSD,15nm,HF,RoHS | ||
| SATADOM | MEM-IDSAVS4-032G | 0 | SATA3DOM SL 3SE4 32GB SLC LP Pin8 VCC NH (L17725) | |||
| SATADOM | MEM-IDSAVM8A-128G | 0 | SATA3DOM SL 3ME3 V2 128GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVM8A-256G | 0 | SATA3DOM ML 3ME3 V2 256GB MLC LP Pin8 VCC NH (S17411) | |||
| SATADOM | MEM-IDSAVE1-064G | 0 | SATA3DOM SL 3IE3 V2 64GB iSLC LP Pin8 VCC NH (S17411i) | |||
| SATADOM | MEM-IDSAVS3-032G | 0 | SATA3DOM SL 3SE 32GB SLC LP No Pin8 Vcc Support (S130710) | |||
| SATADOM | MEM-IDSAVT1-256G | 0 | IND SATA3DOM SL 3TE7 256GB 3D TLC Pin8VCC Vertical LP | |||
| SIOM | - | 0 | Supermicro SIOM solutions [Details] |
