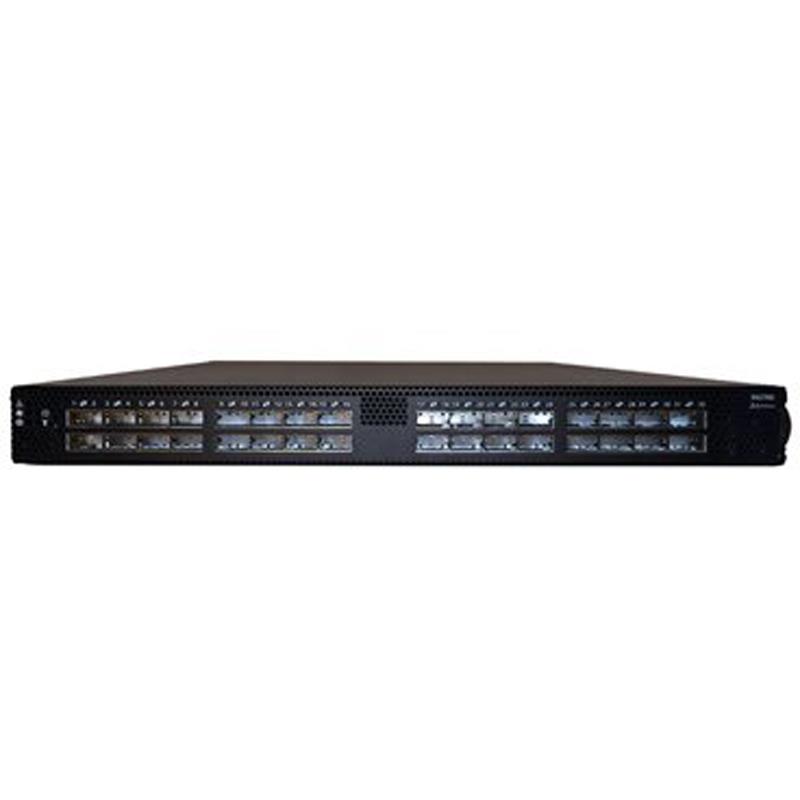

Mellanox MSN2700-CS2F Spectrum 100GbE 1U Open Ethernet Switch

  • Ideal spine and top of rack (ToR) solution

  • Supports speeds of 10/25/40/50/56/100GbE

  • Lowest latency for a 100GbE switching & routing element

  • Easy Scale from one to thousands of nodes and switches

Spectrum 100GbE 1U Open Ethernet Switch with Mellanox Onyx 32 QSFP28 Ports 2 Power Supplies AC x86 CPU Standard Depth P2C Airflow Rail Kit RoHS6



    Option not available

    This combination does not exist.

    Add to Cart

    • High density

    • Low power, Low Latency

    • Storage and server applications run faster

    • Supports speeds of 10/25/40/50/56/100GbE

    • Software-Defined Networking (SDN) support

    • Line-rate performance on all ports at all packet sizes

    • Wire-speed switching 6.4Tb/s, 9.52B packets-per-second

    • Easy Scale from one to thousands of nodes and switches

    • Running MLNX-OS, alternative operating systems over ONIE

    Extra Specifications for Mellanox MSN2700-CS2F Spectrum 100GbE 1U Open Ethernet Switch

    Main Specifications
    Device TypeSwitch - 32 ports - L3 - managed
    Dimensions (WxDxH)16.9 in x 27.1 in x 1.7 in
    Weight24.25 lbs
    Enclosure TypeFront to back airflow rack-mountable 1U
    Subtype100 Gigabit Ethernet
    Ports32 x 100 Gigabit QSFP28
    PerformanceSwitching capacity: 8.4 Tbps, Latency: 300 µs
    Jumbo Frame Support9216 bytes
    Routing ProtocolBGP-4, VRRP, OSPFv2, static IPv4 routing, static IPv6 routing
    Remote Management ProtocolSNMP 1, SNMP 2, Telnet, SNMP 3, SSH-2, CLI
    Authentication MethodRADIUS, TACACS+, Secure Shell v.2 (SSH2), LDAP
    FeaturesFlow control, load balancing, IGMP snooping, Syslog support, port mirroring, IPv6 support, sFlow, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, Data Center Bridging Exchange (DCBX) support, event log, Access Control List (ACL) support, RADIUS support, Rapid Per-VLAN Spanning Tree Plus (PVRST+), LACP support, LLDP support, DHCP relay, non blocking ports, Priority-Based Flow Control (PFC)
    Compliant StandarsIEEE 802.1Q, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.1Qbb, IEEE 802.1Qaz
    Rack Mounting KitIncluded
    RoHS CompliantYes
    Expansion / Connectivity
    Interfaces & Connections32 x 100Gbit LAN QSFP28
    Power DeviceInternal power supply
    Installed Qty2 (installed) / 2 (max)
    Voltage RequiredAC 120/230 V
    Power Consumption Operational235 Watt
    Software / System Requirements
    Software IncludedMellanox MLNX-OS
