- Supermicro PWS-333-1H Power Supply 330W 80 Plus Gold Certified

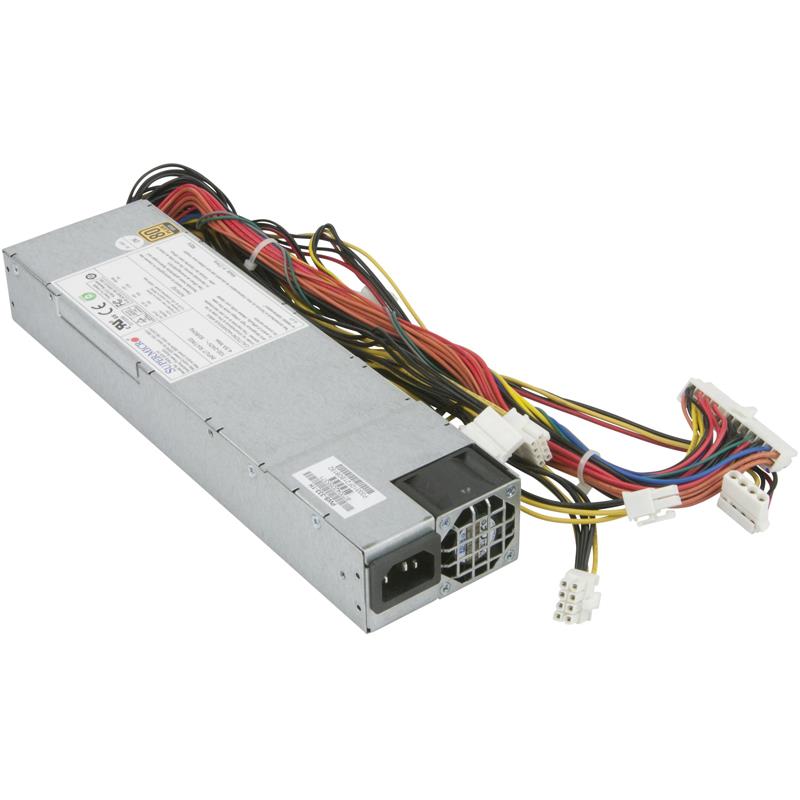

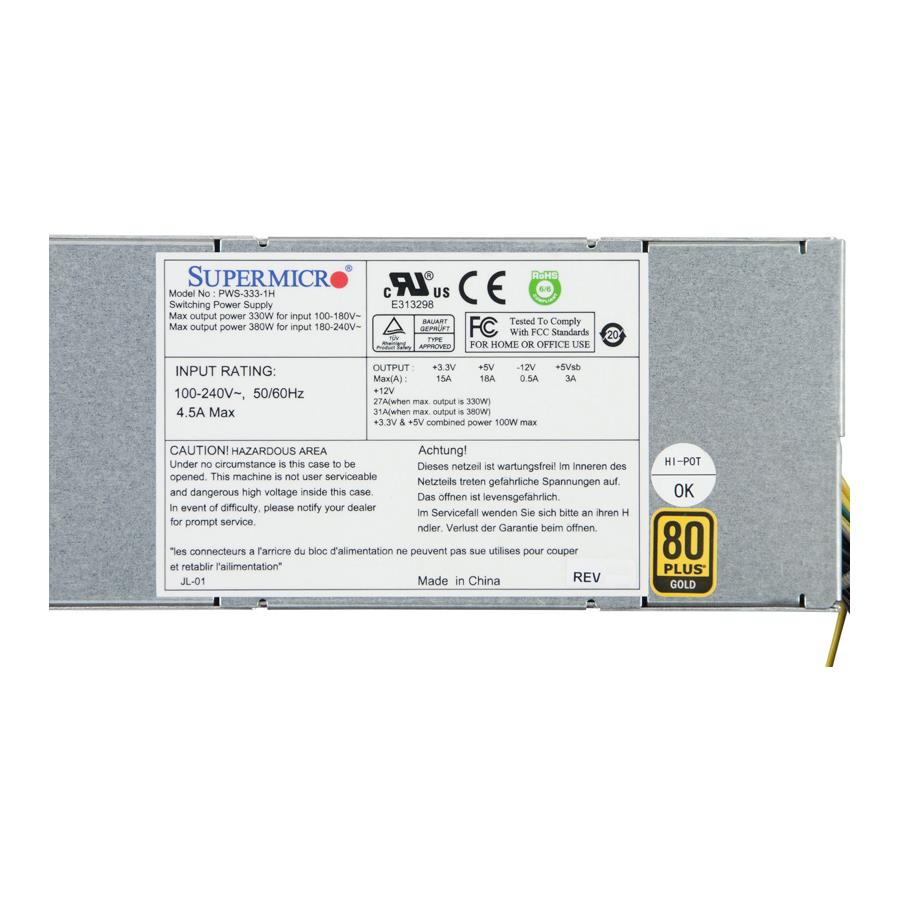

Supermicro PWS-333-1H Power Supply 330W 80 Plus Gold Certified
• Designed for Supermicro 1U Server
• 330W output power at 91% efficiency
• Supermicro Certified - 24Pin ATX Output
• RoHS requirements and are certified by Supermicro
Power Supply 330W 80 Plus Gold Certified, Multi Output, 24pin, 1U
The Supermicro PWS-333-1H is an 80 Plus Gold level power supply capable of supplying 330W low-line 380W high-line output power at 91% efficiency. Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages and a quiet fan to keep it cool under heavy loads. This power supply is designed to not only provide you reliable power to your desktop or workstation but also protects it from over-voltage, over current and short-circuiting via protective circuitry embedded into the unit. All materials contained comply with RoHS requirements and is certified by Supermicro.
Extra Specifications for Supermicro PWS-333-1H Power Supply 330W 80 Plus Gold Certified
| Main Specifications | ||
| Device Type | Power supply | |
| Form Factor | 1U - Internal | |
| Dimensions (WxDxH) | 76 x 40.4 x 279.4 mm | |
| Output Type | 24Pin ATX Cable Output | |
| Power Device | ||
| Power Provided | 330W / 380W | |
| 5V standby | 3A | |
| Input Voltage Range | 100-180V / 180-240V | |
| 80 PLUS Certification | 80 PLUS Gold | |
| Power Supply | ||
| +5V | 18A | |
| +12V | 27A / 31A | |
| +3.3V | 15 Amp | |
| AC Input Frequency | 50-60Hz | |
| Power Efficiency | ||
| Energy Efficient | 91% Peak | |
| Miscellaneous | ||
| Compatible Servers | SYS-1018D-73MTF | |
| Compatible Chassis | CSE-111LT-330UB, CSE-815T-330CB | |
| Features | Enjoy the simplicity of active power factor correction (PFC) and automatically correct AC input for a full range of voltages | |
| Included Accessories | 1x 24 Pin ATX (Motherboard), 2x 8 Pin 12V (CPU), 1x 4 Pin 12V (CPU), 2x 4 Pin Legacy HDD, 2x 4 Pin Floppy/DVD Drive | |
| Compliant Standards | RoHS / REACH | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
