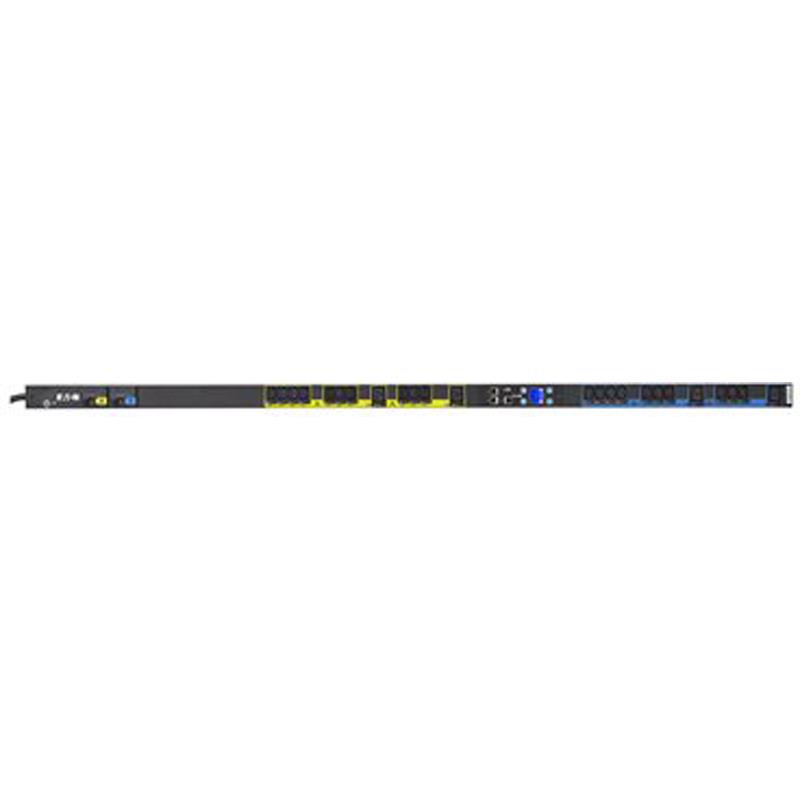

Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed
Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed
Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed

Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed

  • Outlet switching allows for on, off or reboot of individual outlets

  • The high accuracy meter will measure current, voltage, power and energy

  • The robust design is UL rated to operate at 140 degrees F (60 degrees C)

ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed - 20 x IEC 60320 C13, 4 x IEC 60320 C19 - 230 V AC - 5760 W - Network (RJ-45) - 38U - Vertical 20XC13 4XC19

$ 1,428.00$ 1,428.001428.0USD

$ 1,428.00

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • Eaton Managed rack PDUs, also known as Switched PDUs, allow you to monitor and control critical factors such as voltage, current and power factor.

    • This level of information allows you to make the right decision when it comes to energy consumption in your data center.

    • Our most advanced rack PDUs, Eaton Managed units also feature outlet switching and remote site management.

    Extra Specifications for Eaton EMA107-10 ePDU G3 Managed 38U-A IN:L6-30P 24A 1P OUT: 20XC13:4XC19 - Managed

    Main Specifications
    Device TypePower distribution unit - rack-mountable
    Height (Rack Units)38U
    Dimensions (WxDxH)2 in x 2.1 in x 66.5 in
    ColorBlack
    Power Device
    Input VoltageAC 200-240 V
    Frequency Required50 - 60 Hz
    Input Connectors1 x power NEMA L6-30
    Power Output Connectors Details20 x power IEC 60320 C13, 4 x power IEC 60320 C19
    Max Electric Current24 A
    Power Capacity5.76 kW
    Circuit ProtectionCircuit breaker
    Networking
    Remote Management InterfaceEthernet 10/100, RS-232
    Expansion / Connectivity
    Expansion / Connectivity1 x management (Ethernet) - RJ-45, 1 x management (RS-232) - RJ-45
    Miscellaneous
    Cables IncludedPower cable - integrated - 10 ft
    FeaturesLCD display, voltage monitoring, vertical orientation
    Compliant StandardscULus approvals
    Environmental Parameters
    Min Operating Temperature32 °F
    Max Operating Temperature140 F

    Warranty:3 years
    Coverage:Replacement or repair
    Average Service Time:1-2 weeks
