- Supermicro SSG-6019P-ACR12L+ 1U Storage Barebone Dual Processor
Supermicro SSG-6019P-ACR12L+ 1U Storage Barebone Dual Processor
• • High Density Storage
• • Object Storage 1U
• • Scale-out Storage
• • Ceph / Hadoop
• • Big Data Analytics
Barebone 1U SuperStorage Server with Dual Intel Xeon Scalable processor Gen. 2, support 12 Hot-Swap 3.5in SAS3/SATA3 drives, 2x 10GBase-T, Redundant Hot-swap 800W power supplies
This product is no longer available.
1. Dual Socket P (LGA 3647) support 2nd Gen. Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 3 PCI-E 3.0 x16 slots, 1 PCI-E 3.0 x4 NVMe M.2 slot

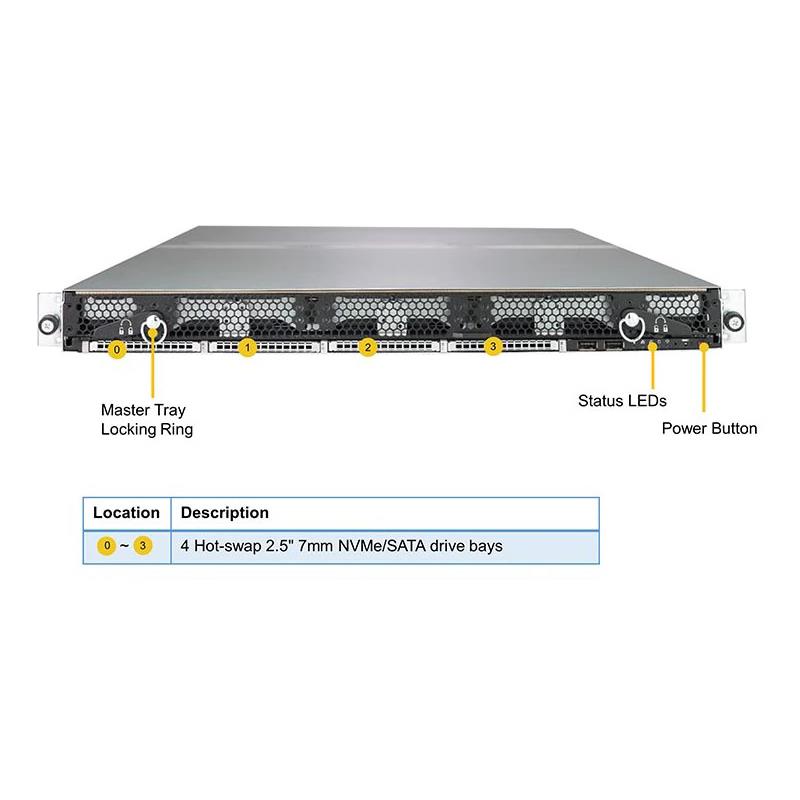

4. 12 Hot-swap 3.5" SAS3/SATA3, 4 Hot- swap 2.5" 7mm NVMe/SATA drive bays
5. 2x 10GBase-T ports via Intel C622
6. IPMI 2.0 + KVM with Dedicated LAN
7. 1 VGA, 4 USB 3.0 (rear)
8. Internal Cable Arm
9. 800W Redundant Power Supplies Platinum Level Certified
Extra Specifications for Supermicro SSG-6019P-ACR12L+ 1U Storage Barebone Dual Processor
| Motherboard | ||
| Motherboard | Super X11DDW-NT | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP up to 205W ††† | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R) ††† 205W CPU support for high performance up to 32°C. 75W-165W CPU support from 10°C ~ 35°C. | |
| System Memory | ||
| Memory Capacity | 12 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C622 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Dual LAN with 10GBase-T from Intel C622 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |
| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| USB | 4 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (front) | ||
| Video | 1 VGA port | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | UEFI 256Mb | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-802TS-R804WBP | |
| Dimensions and Weight | ||
| Width | 17.6" (447mm) | |
| Height | 1.7" (43mm) | |
| Depth | 37.40" (950mm)** | |
| Weight | Net Weight: 65 lbs (29.5 kg) | |
| Gross Weight: 80 lbs (36.3 kg) | ||
| Available Colors | Black | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x4 NVMe M.2 slot | |
| 3 PCI-E 3.0 x16 slots | ||
| AOM slot (AOM Broadcom 3216 SAS3 IT Mode) | ||
| Drive Bays | ||
| Hot-swap | 12 Hot-swap 3.5" SAS3/SATA3 drive bays | |
| 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays | ||
| System Cooling | ||
| Fans | 6x 40x40x56mm 20.5K-17.6K RPM Counter-rotating fans | |
| Power Supply | ||
| Power Supply | 800W Redundant Power Supplies with PMBus | |
| Total Output Power | 800W | |
| Dimension (W x H x L) | 54.5 x 40.25 x 220 mm | |
| Input | 750W: 100-127Vac / 10A | |
| 800W: 200-240Vac / 5.5A | ||
| 800W: 230-240Vdc / 5.5A | ||
| +12V | Max: 62.5A /Min: 0.5A (100-127Vac) | |
| Max: 66.6A /Min: 0.5A (200-240Vac, 230-240Vdc) | ||
| +5Vsb | Max: 4A /Min: 0A | |
| Output Type | Gold Finger | |
| Certification | Platinum Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6019P-ACR12L+ (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DDW-NT | 1 | Super X11DDW-NT Motherboard | |
| Motherboard / Chassis | CSE-802TS-R804WBP | 1 | 1U Chassis | |
| Add-on Card / Module | AOM-S3216-L-2-P | 1 | SAS 16-port mezzanine controller based on Broadcom 3216 IOC. | |
| Backplane | BPN-NVME3-802N-S4 | 1 | 4-Port Hybrid Backplane Supports 4 x 2.5 | |
| Backplane | BPN-SAS3-802A-2 | 3 | 4-Port Backplane Supports 4 x 3.5" SAS/SATA HDD,HF,RoHS | |
| Cable 1 | CBL-0174L | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,15A,125V,RoHS/REACH | |
| Cable 2 | CBL-CDAT-0930 | 1 | CBL,7PIN TO 7PIN,P1.5/1.0mm,17.2CM,26/28AWG,RoHS | |
| Cable 3 | CBL-PWCD-0174-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH | |
| Cable 4 | CBL-PWEX-1056 | 1 | BPN PWR,2P/P3.0 to 3P/P3.0, 12V, 60CM,18AWG, 6A/pin, -20~80C, RoHS | |
| Cable 5 | CBL-SAST-0830 | 4 | OcuLink v 1.0,INT,PCIe NVMe SSD,Passive Latch, 80 | |
| Cable 6 | CBL-SAST-0831 | 1 | OcuLink v 1.0,INT,PCIe NVMe SSD, Passive Latch, to MiniSAS 95CM,32AWG | |
| Cable 7 | CBL-SAST-1028 | 1 | SLIMLINE SAS, INT,Passive Latch,91.9CM, power x4, 17/19.8CM | |
| Front Panel | FPB-802A-LED12 | 1 | SC802 front HDD LED board,RoHS | |
| Parts | MCP-150-00015-0B | 2 | Rubber pad, 3.0mm H, 10x10mm | |
| Riser Card | RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots | |
| Riser Card | RSC-WR-6 | 1 | 1U RHS WIO Riser card with one PCI-E 4.0 x16 slot,HF,RoHS | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-804P-1R | 2 | 1U 800W 100-240VAC/50-60Hz, and DC240V input | |
| * Power Distributor | PDB-PT802-8824 | 1 | 1U Power Distributor Board for SC802 support up to 800W.,RoH |
