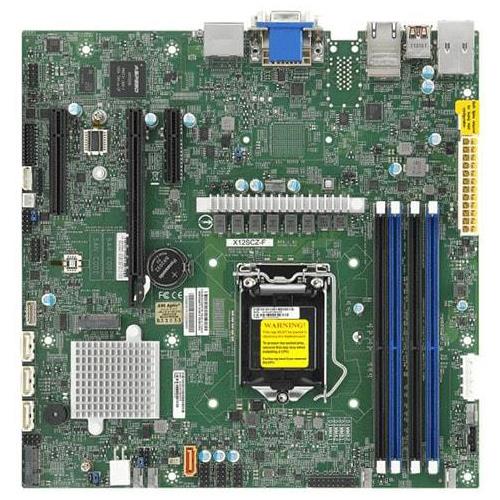

- Supermicro X12SCZ-F Motherboard Micro ATX Single Socket LGA-1200 (Socket H5) Intel Xeon W-1200 Processors and Intel Core i9/Core i7/Core i5/Core i3 Processor 11th/10th Generation
Supermicro X12SCZ-F Motherboard Micro ATX Single Socket LGA-1200 (Socket H5) Intel Xeon W-1200 Processors and Intel Core i9/Core i7/Core i5/Core i3 Processor 11th/10th Generation
Supports 11th/10th Generation Intel Core i9/i7/i5/i3 Processor
Up to 128GB UDIMM, DDR4-2933MHz memory in 4 DIMM slots
Intel W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
On-board: 2 RJ45 Gigabit Ethernet LAN ports, 1 SATA DOM, 1 TPM 2.0
Motherboard Micro ATX, Supports Single Socket LGA-1200 (Socket H5) Supporting Intel Xeon W-1200 Processors, Intel Core i9/Core i7/Core i5/Core i3 Processor 11th/10th Generation (Up to 10-Core). 4 DIMM slots, Up to 128GB DDR4-2933MHz, Intel W480E Controller For 4 SATA3 (6 Gbps) Ports With RAID 0,1,5,10
1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP
2. Single LAN with Intel® PHY I219LM LAN controller Single LAN with Intel® Ethernet Controller I210-AT
3. Intel® W480E
4. Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz, in 4 DIMM slots
5. 1 PCIe 3.0 x16, 1 PCIe 3.0 x4 (in x8 slot), 1 PCIe 3.0 x4 1 M.2 M-Key SATA/PCIe 3.0 x4, 2280/22110 1 M.2 E-Key CNVi/PCIe 3.0 x1, 2230
6. Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
7. 1 VGA D-Sub Connector port, 2 DP++(Dual-Mode DisplayPort) ports, 1 DVI - D port
Extra Specifications for Supermicro X12SCZ-F Motherboard Micro ATX Single Socket LGA-1200 (Socket H5) Intel Xeon W-1200 Processors and Intel Core i9/Core i7/Core i5/Core i3 Processor 11th/10th Generation
| System Memory | ||
| Memory Capacity | 4 DIMM slots | |
| Up to 128GB Unbuffered ECC/non-ECC UDIMM, DDR4-2933MHz | ||
| Memory Type | 2933/2666/2400/2133 MT/s | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® W480E | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Single LAN with Intel® Ethernet Controller I210-AT | |
| Single LAN with Intel® PHY I219LM LAN controller | ||
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| 1 Intel® HD Graphics port(s) | ||
| SATA | Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Audio | ALC 888S HD Audio | |
| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| Video Output | 1 DVI - D port(s), 1 VGA D-Sub Connector port(s), 2 DP++(Dual-Mode DisplayPort) port(s) | |
| USB | 6 USB 3.2 Gen2 port(s) (4 rear type A; 2 via header) | |
| 6 USB 2.0 port(s) (6 via header) | ||
| Serial Port | 1 COM Port(s) (1 header) | |
| DOM | 1 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM TPM 2.0 onboard | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | RTC (Real Time Clock) Wakeup | |
| PCI FW 3.0 | ||
| ACPI 6.1 | ||
| SMBIOS 3.1 | ||
| UEFI 2.6 | ||
| Management | ||
| Software | SuperDoctor® 5, SUM , AMT, vPro, Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support | |
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input | |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support | |
| PC Health Monitoring | ||
| Voltage | VBAT, PCH temperature, Memory, CPU, Chassis intrusion header, 5 -fan status, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V | |
| FAN | 5 fans with tachometer status monitoring | |
| Dual Cooling Zone | ||
| Fan speed control | ||
| 5x 4-pin fan headers (up to 5 fans) | ||
| Temperature | Thermal Control for 5 Fan Connectors | |
| LED | UID/Remote UID | |
| Power LED | ||
| BMC/IPMI Heartbeat LED | ||
| Other Features | UID, RoHS, M.2 NGFF connector, Dual Cooling Zones, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source | |
| Product SKUs | ||
| Product SKUs | MBD-X12SCZ-F | |
| Physical Stats | ||
| Form Factor | Micro-ATX | |
| Dimension | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| CPU | A graphic integrated CPU is required to have onboard video from the DVI and DP ports | |
| Intel® Xeon® W-1200 Processors , 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor | ||
| Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 125W TDP | ||
| Core | Up to 10 cores | |
| Note | ** Motherboard supports this maximum TDP. Please verify your system can thermally support. **The X12SCZ does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version. | |
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4 (in x8 slot) | |
| 1 PCIe 3.0 x16, | ||
| 1 PCIe 3.0 x4, | ||
| M.2 | Key: M-Key, E-Key | |
| M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 CNVi/PCIe 3.0 x1 | ||
| Form Factor: 2280/22110, 2230 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 60°C (32°F - 140°F) | |
| Non-Operating Temperature Range | -40°C - 85°C (-40°F - 185°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
