| System Memory |
| DIMM Sizes | LRDIMM: 64GB, 128GB |
| RDIMM: 8GB, 16GB, 32GB, 64GB |
| LRDIMM 3DS: 128GB, 256GB |
| Memory Voltage | 1.2V |
| Error Detection | Corrects single-bit errors |
| Memory Capacity | 8 DIMM slots |
| Up to 2TB Intel® Optane™ Persistent Memory 200 Series |
| Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC RDIMM, DDR4-3200MHz |
| Memory Type | ECC , DDR4 LRDIMM (3DS), RDIMM (3DS) |
| On-Board Devices |
| Chipset | Intel® C621A |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with 1GbE with Intel® I210 |
| Graphics | 1 ASPEED AST2600 BMC port(s) |
| SATA | Intel® C621A controller for 10 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
| Input / Output |
| SATA | 10 SATA3 (6Gbps) port(s) |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports |
| USB | 4 USB 2.0 port(s) (2 rear; 2 via header) |
| 5 USB 3.2 Gen1 port(s) (2 via header; 2 rear; 1 type A) |
| Video Output | 1 VGA port(s) |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) |
| DOM | 2 SATA DOM (Disk on Module) power connector support |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.0 |
| RTC (Real Time Clock) Wakeup |
| SMBIOS 3.0 or later |
| Management |
| Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, SPM , Intel® Node Manager, IPMI2.0 , Watchdog |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| PC Health Monitoring |
| Voltage | VBAT, Supports system management utility, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status |
| Temperature | CPU thermal trip support |
| PECI |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Suspend static indicator LED |
| Other Features | WOL |
| UID |
| RoHS |
| Control of power-on for recovery from AC power loss |
| ACPI power management |
| FAN | Fan speed control |
| PWM fan speed control |
| System level control |
| 7x 4-pin fan headers (up to 7 fans) |
| Overheat LED indication |
| Product SKUs |

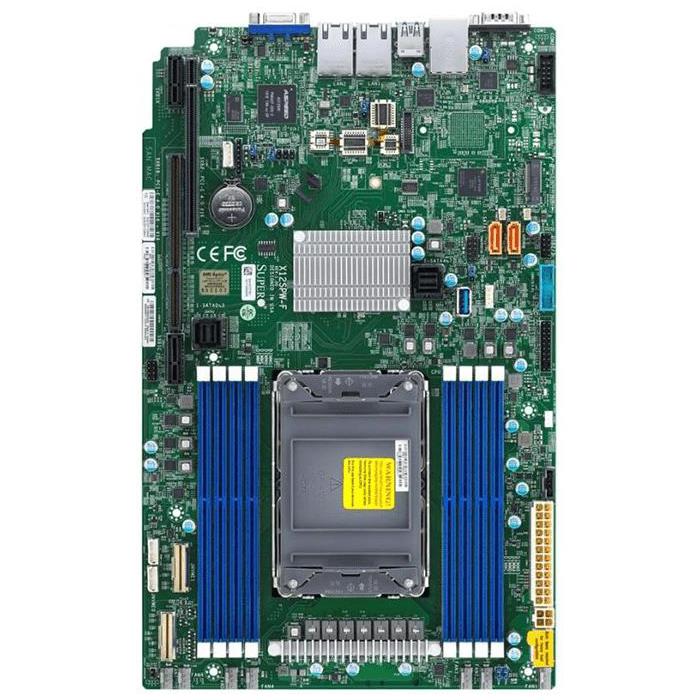

| Product SKUs | MBD-X12SPW-F |
| Physical Stats |
| Form Factor | Proprietary WIO |
| Dimension | 8" x 13" (20.32cm x 33.02cm) |
| Processor |
| CPU | 3rd Gen Intel® Xeon® Scalable processors |
| Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP |
| Core | Up to 40 cores |
| Expansion Slots |
| PCIe | 1 PCIe 4.0 x16 Right Riser Slot, |
| 1 PCIe 4.0 x32 Left Riser Slot |
| M.2 | Key: M-Key |
| Form Factor: 2280, 22110 |
| M.2 Interface: PCIe 3.0 x4; SATA |
| Operating Environment |
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
