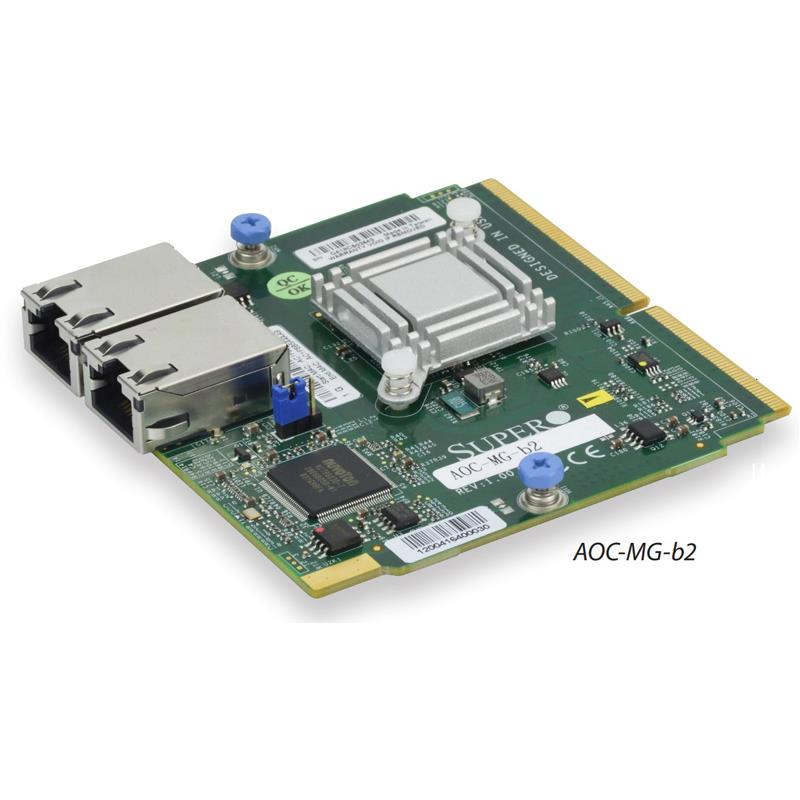

  2. Supermicro AOC-MG-b2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor
Supermicro AOC-MG-b2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

Supermicro AOC-MG-b2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

  • Super I/O Module (SIOM) Form Factor

  • Energy Efficient Ethernet, RoHS compliant 6/6

  • Optimized for Virtualization, Asset Management Features

  • Broadcom BCM5720 1 GbE controller - Dual RJ45 Connectors

2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor, Broadcom BCM5720 - Can be ordered in bundle with Supermicro System ONLY

  • Features Broadcom field-proven dual-port NetXtreme BCM5720 Ethernet controller to deliver lower power consumption and Energy Efficient Ethernet.

  • In small form factor SIOM, this adapter is supported in Supermicro Twin and SuperStorage servers.

  • The Supermicro AOC-MG-b2 provides a reliable, high-performance, energy-efficient 1 GbE connectivity solution.

Extra Specifications for Supermicro AOC-MG-b2M 2-Port Gigabit Ethernet Controller Card - Super I/O Module (SIOM) Form Factor

Main Specifications
Device TypeEthernet Controller
Form FactorSuper I/O Module (SIOM)
Dimensions (WxDxH)Card PCB dimensions: 92mm (3.62in) x 87.1mm (3.43in) (W x D)
Networking
PortsDual RJ45
Management FeaturesNetwork Controller Sideband Interface (NC-SI), Preboot eXecution Environment (PXE) support, iSCSI remote boot support, Asset Management Monitoring model, PCB Rev., Serial number, MAC addresses with Supermicro management software
Miscellaneous
Compliant StandardsRoHS Compliant 6/6
Vendor Compatible ProductsSupermicro motherboards with Super I/O Module slot
Supermicro server systems with Super I/O Module slot
AOC-MG-b2 for Storage Systems
Included Accessories1x BKT-0086L
Software / System Requirements
OS SupportsWindows, Linux RedHat, Linux SUSE, VMware
Power
Power ConsumptionMaximum 4.2W
Environmental Parameters
Operating Temperature0°C to 55°C (32°F to 131°F)
Min Storage Temperature-40°C to 65°C (-40°F to 149°F)
Storage Humidity90% non-condensing relative humidity at 35°C

Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:Replacement or repair
Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
