| Processor Support |
| Processor Support | Dual and Single Intel® and AMD processors |
| Power Supply |
| Certification | Titanium Certified |
| Power Efficiency | 96% |
| Total Output Power and Input | 1000W with Input 100 - 127Vac |
| 1980W with Input 220 - 230Vac |
| 1800W with Input 200 - 220Vac |
| 2000W with Input 200 - 240Vac |
| 2000W with Input 230 - 240Vac |
| AC Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 336 x 76 x 40 mm |
| Output Type | Backplanes (gold finger) |
| +12V | Max: 165A / Min: 0A (220Vac - 230Vac) |
| Max: 150A / Min: 0A (200Vac - 220Vac) |
| Max: 83.3A / Min: 0A (100Vac - 127Vac) |
| Max: 166.7A / Min: 0A (200Vac - 240Vac)(for UL/cUL only) |
| Max: 166.7A / Min: 0A (230Vac - 240Vac) |
| +5Vsb | Max: 1A / Min: 0A |
| Power Distributor | -12V Max: 0.6A |
| +3.3V Max: 24A |
| PDB-PT747-4648 |
| O/P: 12/212 |
| +5V Max: 30A |
| Product SKUs |

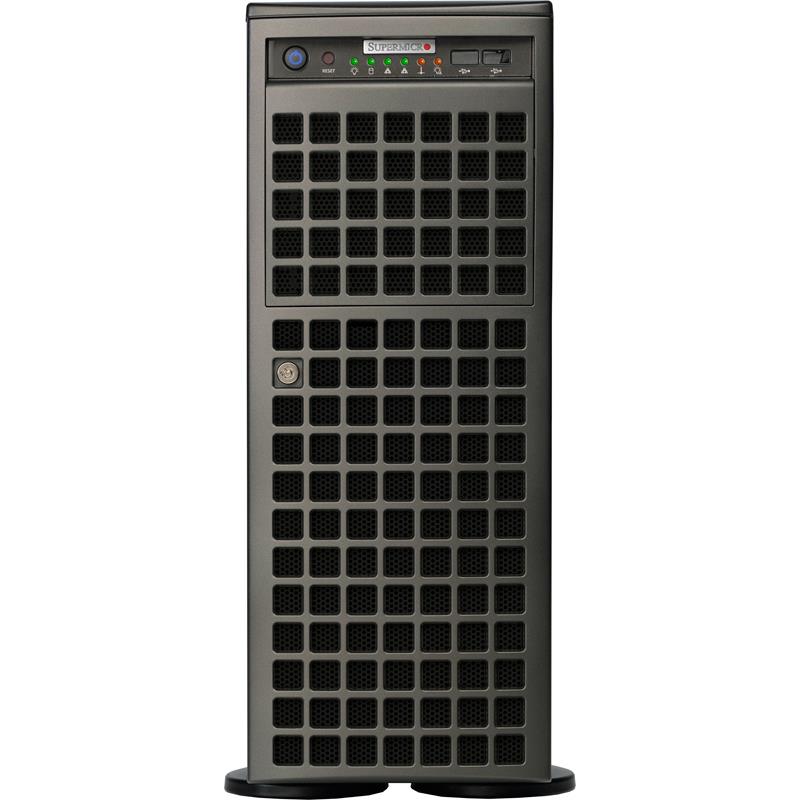

| Product SKUs | CSE-747BTQ-R2K04B |
| Form Factor |
| Form Factor | 4U tower/rachmount chassis - supports for maximum motherboard sizes: 15.2" x 13.2" |
| Dimensions |
| Height | 18.1" (460 mm) |
| Width | 7" (178 mm) |
| Depth | 26.5" (673 mm) |
| Gross Weight | 62 lbs (28.12 kg) |
| Net Weight | 60 lbs (27.22 kg) |
| Packaging (W x H x L) | 27.2" (691 mm) x 13" (330 mm) x 38.2" (970 mm) |
| Available Color | Black |
| Expansion Slots |
| Expansion Slots | 11x Full-height, Full-length expansion slot(s) |
| Drive Bays |
| Drive Bays | 8x 3.5" hot-swap SAS/SATA drive bay with SGPIO |
| Backplane |
| Backplane | 8-Port Tower/4U TQ (W/ AMI 9072) backplance, support up to 8x 3.5-inch SAS/SATA HDD/SSD |
| Peripheral Drives |
| Peripheral Drives | 1x 3.5" internal fixed drive bay |
| 3x standard 5.25" drive bay |
| 1x 90 degree rotatable drive cage |
| Front Panel |
| Button | Power On/Off button |
| LED | 2 Network Activity LEDs |
| Port | 2x USB 3.0 Port(s) |
| 2x Audio Jack(s) |
| Systems Cooling |
| Fans | 2x 80mm Hot-swap PWM Fans |
| 4x 92mm hot-swap fan(s) |
| Operating Environment (System) |
| Operating Temperature Range | 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
| Regulatory (Power Supply) |
| Power Supply Safety / EMC | CCC |
| BSMI |
| CE/EMC |
| FCC class A |
| UL/CUL |
| UL/CB |
