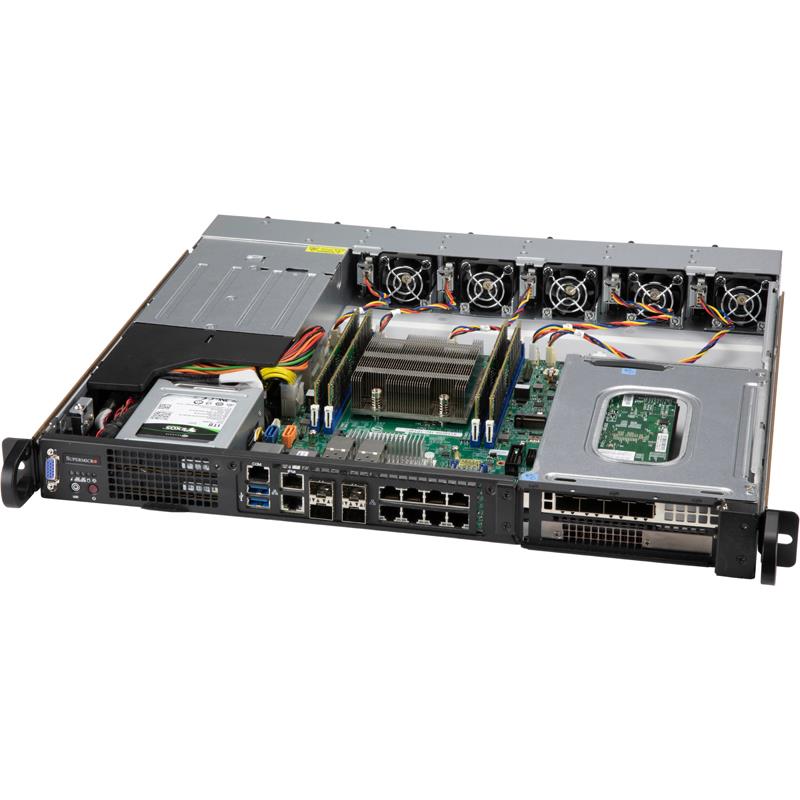

Supermicro CSE-515M-R804 Server Chassis 1U Rackmount

Supermicro CSE-515M-R804 Server Chassis 1U Rackmount

  • Features a short depth of less than 16.9"

  • Highly efficient cooling and quiet operation

  • Optimized for dual or single-processor motherboards

  • Designed to optimize resources while providing high performance

Rackmount 1U for Intel/AMD Single CPU motherboards. 2x Full-height and Half-length expansion slots, 2x 2.5in Drive bays, with 800W Redundant Power Supply, Mounting Rails Kit - SC515-R804W (Black) ** FOR SUPERMICRO WIO MOTHERBOARDS

$ 724.50$ 724.50724.5USD

$ 724.50

Option not available

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • 2x 2.5" Internal Drive Bays

    • Up to 2x Full-height AOC expansion slot

    • Support STD and WIO MB size up to 12"x13

    • Support Service Tag for system information

    • Front I/O short depth resource optimized chassis

    • Up to 5x 40x56mm high-efficiency fans, hot-swappable

    • 800W Redundant AC power supplies Platinum Level Certified

    Extra Specifications for Supermicro CSE-515M-R804 Server Chassis 1U Rackmount

    Main Specifications
    Device TypeSuperChassis 515M-R804
    Supported MotherboardsSupport STD and WIO MB size up to 12"x13"
    Dimensions (WxDxH)Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 15.7" (399 mm)
    Weight18 lbs (8.16 kg)
    Enclosure ColorBlack
    Expansion / Connectivity
    Expansion Slots Total FreeUp to 2 full-height & half-length expansion slot(s)
    Expansion Bays Total (Free)Up to 2 x 2.5" fixed with bracket
    Front Panel
    ButtonsPower On/Off button, System Reset button
    LEDs2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED
    System Cooling
    Fans3 x 40x56mm counter-rotation PWM fan(s), hot-swappable, Optional 2
    Power Supply
    Power Supply800W 1U redundant power supply
    Certification80PLUS Platinum Certified
    Regulatory Safety / EMCBSMI, CCC, CE/EMC, UL/CB
    Environmental
    Operating EnvironmentOperating Temperature Range: 5°C - 35°C (41°F - 95°F)
    Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F)
    Operating Relative Humidity Range: 8% - 90% (non-condensing)
    Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
    Parts List - (Items Included)
    Cable(s)1x CBL-0191L, 3x CBL-OTHR-1214-24, 2x CBL-PWCD-0160-IS
    Fan(s)3x FAN-0207L4
    Front Panel1x MCP-280-80901-0N
    Drive Tray(s)1x MCP-220-00137-0N
    Power Distributor(s)1x PDB-PT515M-2424
    Parts1x MCP-260-00078-0B, 2x MCP-320-51501-0N, 1x MCP-320-51502-0N
    Power Supply Number2x PWS-804P-1R
    Mounting Rails1set MCP-290-00102-0N, 1set MCP-290-00108-0B
    Rear Window1x MCP-240-51505-0N

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
