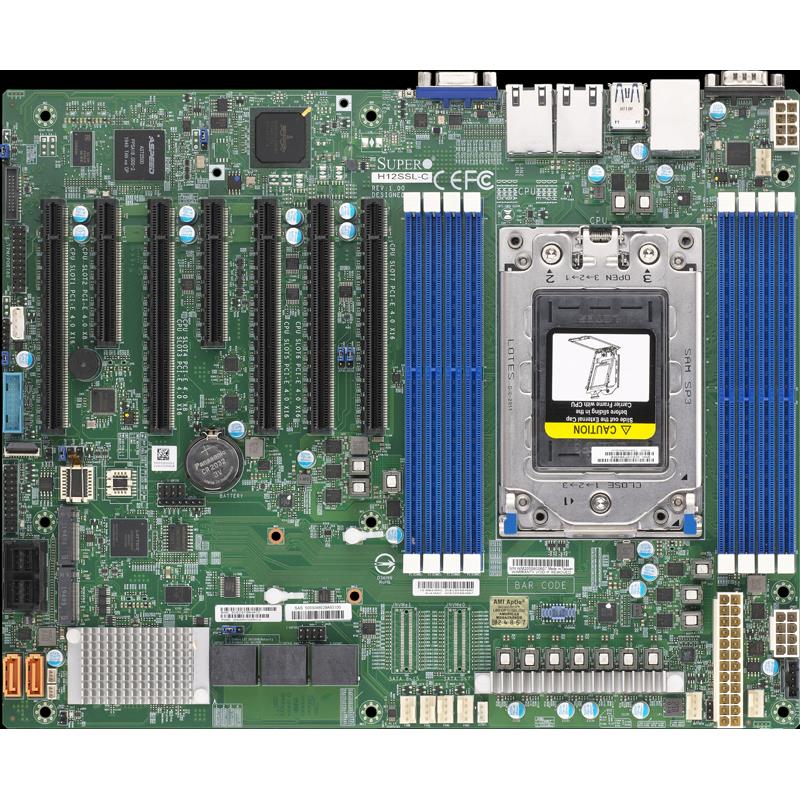

Supermicro H12SSL-C Motherboard ATX Single Socket SP3 AMD EPYC 7003/7002 Series Processor
2 Gigabit Ethernet LAN Ports
Single AMD EPYC 7002 Series Processor
8 SATA3, Broadcom 3008 SAS3 (12 Gbps) controller
2TB Registered DDR4 3200MHz SDRAM in 8 DIMMs
Motherboard ATX, Supports Single Socket SP3, Supporting AMD EPYC 7003/7002 Series Processor (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer) (Up to 64-Core). Up to 2TB DDR4 Reg ECC 3200MHz memory in 8 DIMM slots, 8 SATA3 and Broadcom 3008 SAS3, 2 M.2, Dual Gigabit LAN, IPMI 2.0 + KVM, TPM 2.0 - MBD-H12SSL-C
2 Gigabit Ethernet LAN Ports
ASPEED AST2500 BMC graphics
Single AMD EPYC 7002 Series Processor
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
Expansion slots: 5 PCI-E 4.0 x16, 2 PCI-E 4.0 x8
Up to 6 USB 3.0 ports (4 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCI-E 4.0 x4, M.2 Form Factor: 2280, 22110, M.2 Key: M-key
8 SATA3, Broadcom 3008 SAS3 (12 Gbps) controller for 8 SAS3 ports, 2 M.2
Extra Specifications for Supermicro H12SSL-C Motherboard ATX Single Socket SP3 AMD EPYC 7003/7002 Series Processor
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | ATX | |
| Dimensions (WxDxH) | 12" x 9.6 ", (30.5cm x 24.4cm) | |
| Processor | ||
| Compatible Processors | Single AMD EPYC 7002 Series Processor | |
| Compatible Socket | Socket SP3 | |
| Cache/Cores | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots, Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM, 8-channel memory bus | |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| SATA RAID | SATA3 (6 Gbps) | |
| SAS | Broadcom 3008 SAS3 (12 Gbps) controller, RAID 0, 1, 10 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2500 BMC | |
| Network Controllers | Dual gigabit LAN via Broadcom BCM5720, 1 Realtek RTL8211F PHY (dedicated IPMI) | |
| Graphics | ASPEED AST2500 BMC | |
| SATA DOM | 2 SATA DOM power connectors | |
| TPM | 1 TPM 2.0 header | |
| Input / Output | ||
| SATA | 8 SATA3 (6 Gbps) ports | |
| SAS ports | 8 SAS3 (12 Gbps) ports | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port | |
| Others | 1 COM port (rear) | |
| 6 USB 3.0 ports (4 rear + 2 via header) | ||
| VGA | 1 VGA port | |
| Expansion Slots | ||
| PCI-E | 5 PCI-E 4.0 x16, 2 PCI-E 4.0 x8 | |
| Expansion / Connectivity | ||
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| Interface: 2 PCI-E 4.0 x4 | ||
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 | |
| Management | ||
| Software | Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN | |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby, CPU switching voltage regulator, Supports system management utility, VBAT | |
| FAN | Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby, CPU switching voUp to 7-fan status tachometer monitoring, Up to 7 4-pin fan headers, Dual Cooling Zone, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectorstage regulator, Supports system management utility, VBAT | |
| Temperature | Monitoring for CPU and chassis environment, CPU Thermal Trip Support, Thermal control for 7x Fan connectors, I²C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection, Chassis Intrusion Header, UID | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Parts List | ||
| Motherboard | 1x MBD-H12SSL-C-O | |
| I/O Cables | 2x CBL-0044L, 2x CBL-0658 | |
| I/O Shield | 1x MCP-260-00042-0N | |
