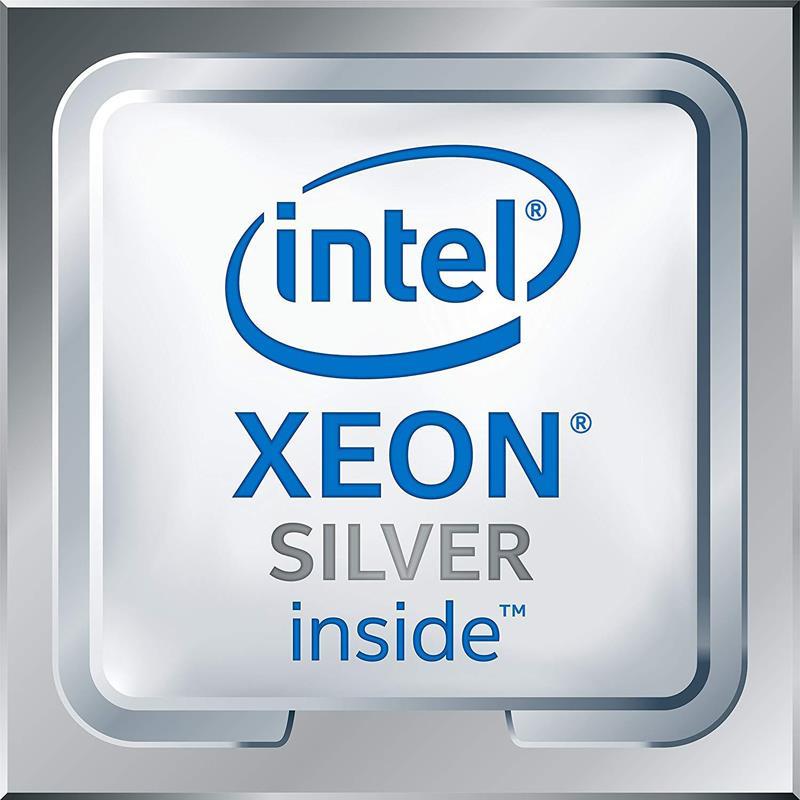

Intel CD8069504444900 Xeon Silver 4210T 2.30GHz 10-Core Processor Gen 2 - Cascade Lake
Improved memory speed and power efficiency
Faster Time to Value with Intel Select Solutions
For entry data center computes; network; storage
2.3GHz Frequency; 10 Core/20 Thread; 13.75MB Cache
2.3GHz Xeon Silver 4210T Processor Gen.2, 10-Cores (20 Threads), FCLGA3647, 13.75MB Cache, 9.6GT, 2UPI, 95W, 14nm - OEM
Next-generation platform for cloud-optimized, 5G-ready networks
Breakthrough HPC and high-performance data analytics innovation
Strong, capable platforms for the hybrid-cloud, data-fueled enterprise
Pervasive, breakthrough performance enables greater efficiencies and lowers TCO
Extra Specifications for Intel CD8069504444900 Xeon Silver 4210T 2.30GHz 10-Core Processor Gen 2 - Cascade Lake
| Main Specifications | ||
| Device Type | Processor | |
| Processor Number | Intel Xeon Silver 4210T | |
| Multi-Core Technology | 10-core | |
| Number of Threads | 20-Threads | |
| Clock Speed | 2.3 GHz | |
| Max Turbo Speed | 3.20GHz | |
| Manufacturing Process | 14 nm | |
| Product Collection | 2nd Generation Intel Xeon Scalable Processor | |
| Vertical Segment | Server | |
| Processor | ||
| Cache | L3 - Smart Cache - 13.75 MB | |
| Thermal | ||
| Design Power | 95 W | |
| Specification | 91 °C | |
| Memory Specifications | ||
| Intel Optane DC Persistent Memory Supported | No | |
| Max Memory Size (dependent on memory type) | 1 TB | |
| Memory Types | DDR4-2400 | |
| Maximum Memory Speed | 2400 MHz | |
| Max # of Memory Channels | 6 | |
| ECC Memory Supported | Yes | |
| Expansion Options | ||
| Scalability | 2S | |
| PCI Express Revision | 3.0 | |
| Max # of PCI Express Lanes | 48 | |
| Security Features | ||
| Security Features | Intel AES New Instructions, Intel Trusted Execution Technology, Execute Disable Bit, Mode-based Execute Control (MBE) | |
| Miscellaneous | ||
| Features | Enhanced SpeedStep technology, SpeedStep technology, Hyper-Threading Technology, Execute Disable Bit capability, Intel Virtualization Technology, Intel 64 Technology, Intel Trusted Execution Technology, streaming SIMD extensions 4.2, Intel Turbo Boost Technology 2.0, Intel AES New Instructions (AES-NI), Intel Virtualization Technology for Directed I/O (VT-d), Intel vPro Technology, Intel VT-x with Extended Page Tables (EPT), Intel Advanced Vector Extensions 2 (AVX2.0), Intel Transactional Synchronization Extensions (TSX), Intel Optane Memory Supported, Intel Advanced Vector Extensions 512 (AVX-512), Mode-based Execute Control (MBE), Intel Volume Management Device (VMD), Intel Run Sure Technology, Intel Deep Learning Boost (DL Boost), Intel Resource Director Technology (RDT), Advanced Vector Extensions (AVX) | |
| Package Type | OEM, Tray | |
| Package Specifications | ||
| Sockets Supported | FCLGA3647 | |
| Package Size | 76.0mm x 56.5mm | |
| Case Temperature | 91°C | |
