- Supermicro AS-4124GS-TNR 4U Barebone Dual AMD EPYC 7003/7002 Series Processors
Supermicro AS-4124GS-TNR 4U Barebone Dual AMD EPYC 7003/7002 Series Processors
• AI / Deep Learning
• High Performance Computing (HPC)
• Cloud Gaming
• Molecular Dynamics Simulation
Barebone 4U Rack Server Socket-SP3 for Dual AMD EPYC 7003/7002 Series Processors, support up to 8TB DDR4 Registered ECC 3200MHz RDIMM/LRDIMM in 32 DIMM slots; Onboard 24 SATA3 ports; 2 Gigabit LAN ports - (MBD-H12DSG-O + CSE-418GTS-R4016BP) - AS -4124GS-TNR
This product is no longer available.
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 2 GPUs, 4 DIMMs per CPU with EPYC 7003 Series, 2 SATA or 1 NVMe.
1. Supports up to 8 double-width GPUs Direct connect for maximum performance
2. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
4. 9 PCI-E 4.0 x16 (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)

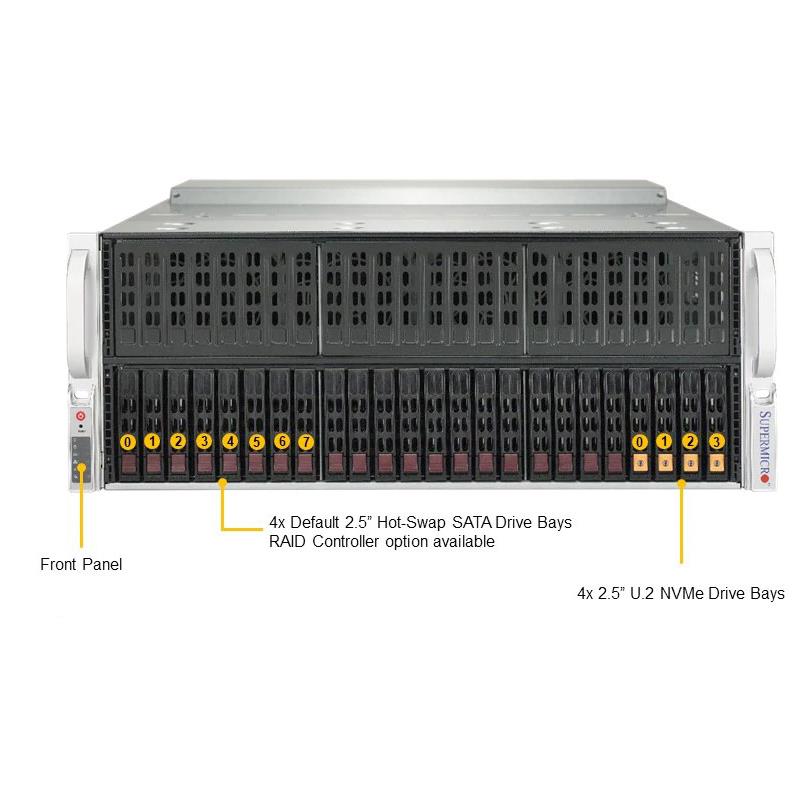

5. Up to 24 Hot-swap 2.5" drive bays. With included hardware: • 2x 2.5" SATA in RAID 1 via onboard Marvell 9230 • 4x 2.5" NVMe (Gen3 only; depends on PCI-E quantity based on #4) RAID controller option available for 24 HDDs
6. 2 GbE LAN ports (rear)
7. 8 Hot-swap 11.5K RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+) (full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-4124GS-TNR 4U Barebone Dual AMD EPYC 7003/7002 Series Processors
| Motherboard | ||
| Motherboard | Super H12DSG-O-CPU | |
| Processor/Cache | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W ** | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) * | ||
| Cores | Up to 128 Cores (64 per CPU) | |
| Note | * Supports 2 CPUs only – single socket not supported ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| GPU | ||
| Supported GPUs | Supports both active and passive cooled GPUs | |
| Compatible GPU list | ||
| 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) | ||
| NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct | ||
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional) | |
| System Memory | ||
| Memory Capacity | 32 DIMM slots * | |
| Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM ** | |
| Note | * Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors | |
| ** In 2DPC configurations memory speed is up to 2933MHz | ||
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Provided via riser card | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA/SAS | 24 SATA/SAS with a controller | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 GbE LAN ports (rear) | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-00057-0N) | ||
| Model | CSE-418G2TS-R4016BP | |
| Dimensions | ||
| Height | 7.0" (178mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Package | 26.57" (H) x 27" (W) x 41" (D) | |
| Weight | Net Weight: 65.5 lbs (29.7 kg) | |
| Gross Weight: 100 lbs (45.3 kg) | ||
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays | |
| 2x 2.5" SATA supported natively * | ||
| 4x 2.5" NVMe supported natively | ||
| RAID controller option available for 24 HDDs | ||
| Note | * 2x drives in RAID 1 only via onboard Marvell 9230 | |
| Expansion Slots | ||
| PCI-Express | 9 PCI-E 4.0 x16 (FHFL) slots | |
| or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices | ||
| System Cooling | ||
| Fans | 8x 11.5K RPM heavy duty fans | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1800W: 200 – 220Vac | |
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 1000W: 100 – 127Vac | ||
| 2000W: 220 – 240Vac (UL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 220-230Vac / 10-9.8A / 50-60Hz | |
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 100-127Vac / 12-9A / 50-60Hz | ||
| 200-220Vac / 10-9.8A / 50-60Hz | ||
| 220-240Vac / 11-10A / 50-60Hz (UL only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166A / Min: 0A (230-240Vac) | ||
| Max: 166A / Min: 0A (220-240Vac) (UL only) | ||
| 12Vsb | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 4124GS-TNR (Black) | |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 0.3U LID | MCP-230-41803-0N | $ 65.00 | 1 | Top cover for GTX card support | ||
| 1U LID | MCP-230-41806-0N | $ 75.50 | 1 | Top cover for NVLINK BRIDGE support | ||
| GPU Cables | CBL-PWEX-1017 | $ 27.50 | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX, AMD Instinct). 8pin FEMALE CPU BLUE to 2x 6pin FEMALE / 2x 1pin FEMALE. 20cm 16AWG/20AWG. | ||
| GPU Cables | CBL-PWEX-10401 | 1 per GPU | GPU power cable (for NVIDIA QUADRO, GTX). 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG. | |||
| Storage Controller Cards and Cables | AOC-S3008L-L8I2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,1E,10 | |||
| Storage Controller Cards and Cables | AOC-S3008L-L8E2 | 1 | Broadcom 3008 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, HBA only | |||
| Storage Controller Cards and Cables | AOC-S3108L-H8IR2 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60 | |||
| Storage Controller Cards and Cables | AOC-S3108L-H8IR-16DD2 | 1 | Broadcom 3108 STD LP 8 internal ports, 12Gb/s per port - SAS HBA Adapter Card, RAID 0,1,5,6,10,50,60. Maximum 16 HDD support with expander backplane | |||
| Storage Controller Cards and Cables | CBL-SAST-0531 | $ 33.50 | 0 | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s | ||
| Storage Controller Cards and Cables | BKT-BBU-BRACKET-05 | $ 84.00 | 1 | Remote Mounting Board for Supercap. Installs in PCI-E slot. | ||
| Global Services & Support | OS4HR3/2/1 | 0 | 3/2/1-year onsite 24x7x4 service | |||
| Global Services & Support | OSNBD3/2/1 | 0 | 3/2/1-year onsite NBD service | |||
| Software | SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
