Supermicro AS-4124GS-TNR 4U Barebone Dual AMD Processor
• AI / Deep Learning
• High Performance Computing (HPC)
• Cloud Gaming
• Molecular Dynamics Simulation
Barebone 4U Rack Server Socket-SP3 for Dual AMD EPYC 7002-Series Processors, support up to 8TB DDR4 Registered ECC 3200Mhz SDRAM in 32 DIMM slots; Onboard 24 SATA3 ports; 2 Gigabit LAN ports - (MBD-H12DSG-O + CSE-418GTS-R4016BP) - AS -4124GS-TNR
To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance 16 DIMMs is recommended). Minimum requirement is 2 CPUs, 2 GPUs, 4 DIMMs per CPU with EPYC 7003 Series, 2 SATA or 1 NVMe.
1. Supports up to 8 double-width GPUs Direct connect for maximum performance
2. Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
3. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
4. 9 PCI-E 4.0 x16 (Option: 10 PCI-E 4.0 x16 slots without NVMe devices)
5. Up to 24 Hot-swap 2.5" drive bays. With included hardware: • 2x 2.5" SATA in RAID 1 via onboard Marvell 9230 • 4x 2.5" NVMe (depends on PCI-E quantity based on #4) RAID controller option available for 24 HDDs
6. 2 GbE LAN ports (rear)
7. 8 Hot-swap 11.5K RPM cooling fans
8. 2000W (2+2) Redundant Power Supplies Titanium Level (96%+) (full redundancy based on configuration and application load)
Extra Specifications for Supermicro AS-4124GS-TNR 4U Barebone Dual AMD Processor
| Motherboard | ||
| Motherboard | Super H12DSG-O-CPU | |
| Processor/Cache | ||
| CPU | Socket SP3 | |
| Supports CPU TDP up to 280W ** | ||
| Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) * | ||
| Cores | Up to 128 Cores (64 per CPU) | |
| Note | * Supports 2 CPUs only – single socket not supported ** Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization | |
| GPU | ||
| Supported GPUs | Supports both active and passive cooled GPUs | |
| Compatible GPU list | ||
| 8 Double-Width/Single-Width PCI-E 3.0/4.0 x16 Card (Full Height Full Length) | ||
| NVIDIA A100, V100, A40, T4, Quadro RTX, AMD Instinct | ||
| CPU-GPU Interconnect | PCI-E Gen 4 x16 Direct Connect CPU-GPU Dual-Root | |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (Optional), AMD Infinity Fabric (optional) | |
| System Memory | ||
| Memory Capacity | 32 DIMM slots * | |
| Up to 8TB 3DS ECC DDR4-3200MHz RDIMM/LRDIMM | ||
| Memory Type | 3200MHz ECC DDR4 RDIMM/LRDIMM ** | |
| Note | * Minimum 4 DIMMs per CPU required with EPYC 7003 Series processors | |
| ** In 2DPC configurations memory speed is up to 2933MHz | ||
| On-Board Devices | ||
| Chipset | System on Chip (SoC) | |
| SATA | SATA3 (6Gbps) | |
| Network Controllers | Provided via riser card | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | ASPEED AST2500 BMC | |
| Input / Output | ||
| SATA/SAS | 24 SATA/SAS with a controller | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 GbE LAN ports (rear) | ||
| USB | 2 USB 3.0 ports (rear) | |
| Video | 1 VGA Connector | |
| COM Port | 1 COM port (header) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watchdog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 4U Rackmountable | |
| Rackmount Kit (MCP-290-00057-0N) | ||
| Model | CSE-418G2TS-R4016BP | |
| Dimensions | ||
| Height | 7.0" (178mm) | |
| Width | 17.2" (437mm) | |
| Depth | 29" (737mm) | |
| Package | 26.57" (H) x 27" (W) x 41" (D) | |
| Weight | Net Weight: 65.5 lbs (29.7 kg) | |
| Gross Weight: 100 lbs (45.3 kg) | ||
| Available Colors | Black | |
| Drive Bays / Storage | ||
| Hot-swap | Up to 24x 2.5" SAS/SATA drive bays | |
| 2x 2.5" SATA supported natively * | ||
| 4x 2.5" NVMe supported natively | ||
| RAID controller option available for 24 HDDs | ||
| Note | * 2x drives in RAID 1 only via onboard Marvell 9230 | |

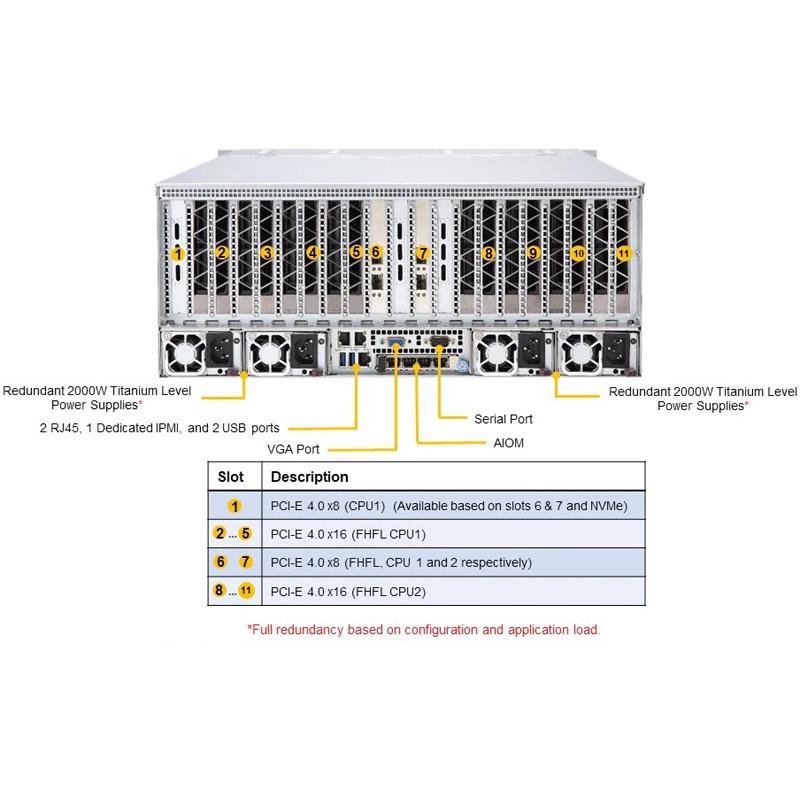

| Expansion Slots | ||
| PCI-Express | 9 PCI-E 4.0 x16 (FHFL) slots | |
| or 10 PCI-E 4.0 x16 (FHFL) slots without NVMe devices | ||
| System Cooling | ||
| Fans | 8x 11.5K RPM heavy duty fans | |
| Power Supply | ||
| Power Supply | 2000W Redundant Power Supplies with PMBus | |
| Total Output Power | 1800W: 200 – 220Vac | |
| 1980W: 220 – 230Vac | ||
| 2000W: 230 – 240Vac | ||
| 1000W: 100 – 127Vac | ||
| 2000W: 220 – 240Vac (UL only) | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| Input | 220-230Vac / 10-9.8A / 50-60Hz | |
| 230-240Vac / 10-9.8A / 50-60Hz | ||
| 100-127Vac / 12-9A / 50-60Hz | ||
| 200-220Vac / 10-9.8A / 50-60Hz | ||
| 220-240Vac / 11-10A / 50-60Hz (UL only) | ||
| +12V | Max: 83A / Min: 0A (100-127Vac) | |
| Max: 150A / Min: 0A (200-220Vac) | ||
| Max: 165A / Min: 0A (220-230Vac) | ||
| Max: 166A / Min: 0A (230-240Vac) | ||
| Max: 166A / Min: 0A (220-240Vac) (UL only) | ||
| 12Vsb | Max: 3.5A / Min: 0A | |
| Output Type | 25 Pairs Gold Finger Connector | |
| Certification | Titanium Level | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | A+ Server 4124GS-TNR (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-H12DSG-O-CPU | 1 | Super H12DSG-O-CPU Motherboard | |
| Motherboard / Chassis | CSE-418G2TS-R4016BP | 1 | CSE-418G2TS-R4016BP Chassis | |
| Add-on Card / Module | AOM-PCIE4-418N-1-P | 1 | GPU board for 4U PCIE GPU system,HF | |
| Add-on Card / Module | AOM-PIO-I2G | 1 | AOM-PIO-I2G | |
| Backplane | BPN-SAS3-216A-N4 | 1 | 24-port 2U SAS3 12Gbps hybrid backplane, support up to 20x 2.5-inch SAS3/SATA3 HDD/SSD and 4x SAS3/SATA3/NVMe Storage Devices | |
| Cable 1 | CBL-0010L | 1 | 9 PIN SERIAL PORT DTK CABLE, LF | |
| Cable 2 | CBL-0234L | 2 | Y CABLE FOR 4-PIN HDD | |
| Cable 3 | CBL-0449L | 2 | HDD power extension for X8OBN, special 8pin to 4 HDD | |
| Cable 4 | CBL-PWCD-0900 | 4 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 | |
| Cable 5 | CBL-PWEX-1028 | 8 | GPU,2x4F/CPU to 2x4F/CPU,P4.2, 30CM,16AWG, 10A/pin, -40~105C | |
| Cable 6 | CBL-PWEX-1080 | 1 | Mini-Fit 2x2 F, to Mini-Fit 2x2 F, 10A/pin,7cm,16AWG,RoH | |
| Cable 7 | CBL-SAST-0826 | 2 | SLIMLINE SAS x8 (LE) to 2x MINI SAS HD,INT, 70CM,32AWG, | |
| Cable 8 | CBL-SAST-122EF-85 | 8 | Slimline x8 (STR) to Slimline x8 (STR),FFC,INT,20/25CM, | |
| Cable 9 | CBL-SAST-1267-85 | 2 | Slimline x8 (STR) to Slimline x8 (STR),INT,67CM,85 OHM, | |
| Cable 10 | CBL-SAST-1295-100 | 1 | Slimline x4 (STR) to MiniSAS HD x4 (STR),INT,95CM,RoHS | |
| Drive Tray(s) | MCP-220-00047-0B | 20 | Black gen 3rd hot-swap 2.5inch HDD tray | |
| Drive Tray(s) | MCP-220-00167-0B | 4 | Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS | |
| Heatsink / Retention | SNK-P0064AP4 | 2 | 4U Active CPU Heat Sink for AMD Socket SP3 Platform | |
| *Power Supply | PWS-2K08A-1R | 4 | 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm | |
| *Cable 11 | CBL-0071L | 1 | ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF | |
| *Cable 12 | CBL-OTHR-0794 | 1 | VGA,DB 15pin,F to 2x8,PH2.54,10CM,30 AWG,RoHS | |
| *Cable 13 | CBL-PWEX-1069 | 8 | PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS | |
| *FAN 1 | FAN-0199L4-1 | 8 | 92x92x38 mm, 11.5K RPM Cooling fan w/ 5A Fan Connector,RoHS | |
| *Front Panel | FPB-TMP-002 | 1 | Thermal Sensor board with 40cm I2C cable | |
| *Drive Tray(s) | MCP-220-21602-0B | 3 | Black 2.5"; HDD dummy cover for SC213,216 (8 HDD Hex hole) | |
| *Rear Window | MCP-240-84802-0N | 1 | 21 slot rear window for SC418X | |
| *Parts | MCP-260-41802-0N | 1 | IO shield for X12DPG-OA in SC418G | |
| *Front Panel | MCP-280-82601-0N | 1 | Front control board adapter (TB826) for SC216,826,936,846 | |
| *Rail Set | MCP-290-00057-0N | 1 set | Rail set, quick/quick, default for 4U 17.2"; W | |
| *Rail Set | MCP-290-00060-0N | 1 | Threaded rail adapter default for round hole rack | |
| *Rail Set | MCP-290-00115-0N | 1 | Inner rail, quick-release type | |
| *Rail Set | MCP-290-00117-0N | 1 | Outer rail, quick-release type | |
| Software | SFT-OOB-LIC • | 1 | OOB Management Package (per node license) |
Note:
• Parts with * are inside the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
