System Memory |
Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM (Operating speed up to 2133MHz) |
DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB |
Memory Voltage | 1.2V |
Error Detection | Corrects single-bit errors |
Memory Capacity | 4 DIMM slots |
| Up to 512GB ECC LRDIMM, DDR4-2133MHz; Up to 256GB ECC RDIMM, DDR4-2133MHz |
On-Board Devices |
Chipset | System on Chip |
IPMI | Support for Intelligent Platform Management Interface v.2.0 |
| ASPEED AST2500 |
Network Controllers | Dual LAN with 10G SFP+ LAN via SoC |
| Dual LAN with 10Gbase-T |
| Single LAN with Realtek RTL8201N PHY (dedicated IPMI) |
| Quad LAN with 1GbE with Intel® I350-AM4 |
| Quad LAN with Intel® Ethernet Controller I350-AM4, Total 13 LAN ports |
| Single LAN with 1GbE with Intel® I210 |
Graphics | Header Only |
| 1 ASPEED AST2500 BMC port(s) |
SATA | SoC controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10 |
Input / Output |
SATA | 4 SATA3 port(s) |
LAN | 2 RJ45 10GBase-T ports |
| 2 10G SFP+ LAN ports |
| 1 RJ45 Dedicated IPMI LAN port |
| 9 RJ45 Gigabit Ethernet LAN ports |
USB | 4 USB 2.0 port(s) (4 via header) |
| 2 USB 3.1 Gen1 port(s) (2 rear type A) |
Video Output | 1 VGA port(s) |
Serial Port | 2 COM Port(s) (1 header; 1 rear) |
DOM | 1 Super DOM (Disk on Module) port with build power |
TPM | 1 TPM Header & Chip both |
System BIOS |
BIOS Type | 256MB UEFI |
BIOS Features | UEFI 2.7 |
| ACPI 6.1 |
| SMBIOS 3.1 |
| PCI FW 3.2 |
Management |
Software | SuperDoctor® 5, NMI, SUM , KVM with dedicated LAN, Intel® Node Manager, IPMI2.0 , Watchdog, IPMI (Intelligent Platform Management Interface) v2.0 with KVM support |
System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
Power Configurations | ACPI Power Management, +12V DC Power Input, CPU thermal trip support for processor protection |
PC Health Monitoring |
FAN | 6x 4-pin fan headers (up to 6 fans) |
| Thermal control tachometer fan connectors, System level control, PWM fan speed control, Low noise fan speed control, Fan speed control, Dual Cooling Zone, 6 fans with tachometer status monitoring, Status monitoring for speed control, Pulse Width Modulated (PWM) fan connectors, Overheat LED indication |
Temperature | Monitoring for CPU and chassis environment |
LED | UID/Remote UID |
| CPU / System Overheat LED |
Other Features | WOL, UID, System level control, RoHS, Node Manager Support, M.2 NGFF connector, Dual Cooling Zones, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source, SDDC |
Voltage | System temperature, System level control, Supports system management utility, Memory, HT, Chassis intrusion header, 6 -fan status, +5V standby, +5V, +3.3V, +12V, +1.5V, Memory Voltages |
Product SKUs |

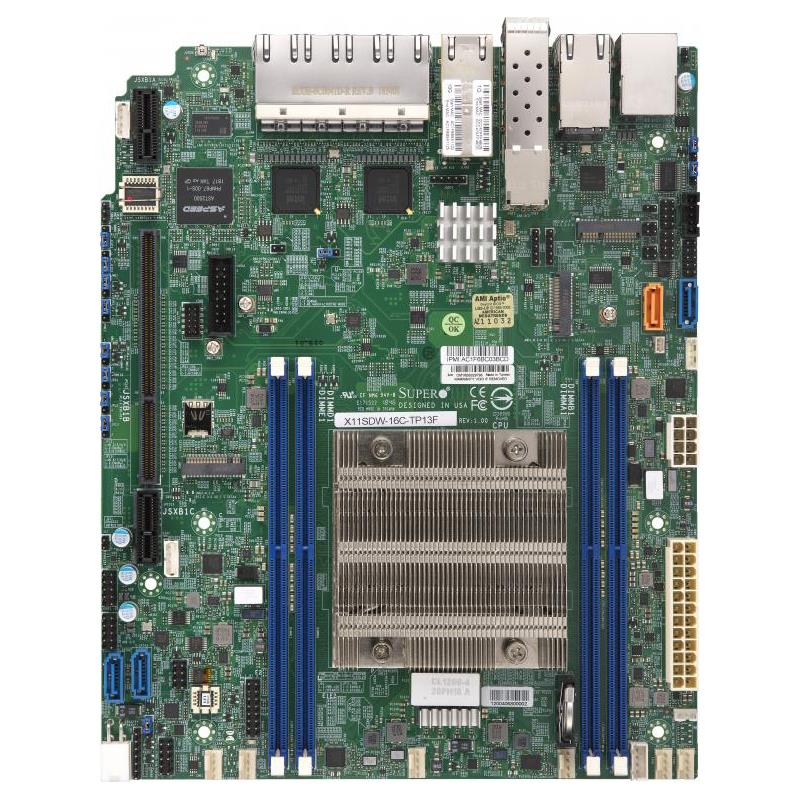

Product SKUs | MBD-X11SDW-14C-TP13F |
Physical Stats |
Form Factor | Proprietary WIO |
Dimension | 8" x 10" (20.32cm x 25.4cm) |
Processor |
CPU | Intel® Xeon® Processor D-2173IT |
| Single Socket FCBGA-2518 supported, CPU TDP supports Up to 70W TDP |
Core | Up to 14 cores, 28 threads / 19MB Cache |
Expansion Slots |
PCIe | 1 PCIe 3.0 x32 Left Riser Slot |
M.2 | Key: M-Key, E-Key, B-Key |
| M.2 Interface: 1 SATA/PCIe 3.0 x4; 1 PCIe 3.0 x1; 1 SATA/PCIe 3.0 x2/USB 3.0 |
| Form Factor: 2280/22110, 2230, 2242 |
Operating Environment |
Operating Temperature Range | 0°C - 60°C (32°F - 140°F) |
Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
Operating Relative Humidity Range | 8% - 90% (non-condensing) |
Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
