- Supermicro SYS-240P-TNRT 2U Barebone Quad Intel Processor
![[NR]X12QCH+, CSE-218HTS-R2K08P](/web/image/product.image/5187/image?unique=4f9ee3c)

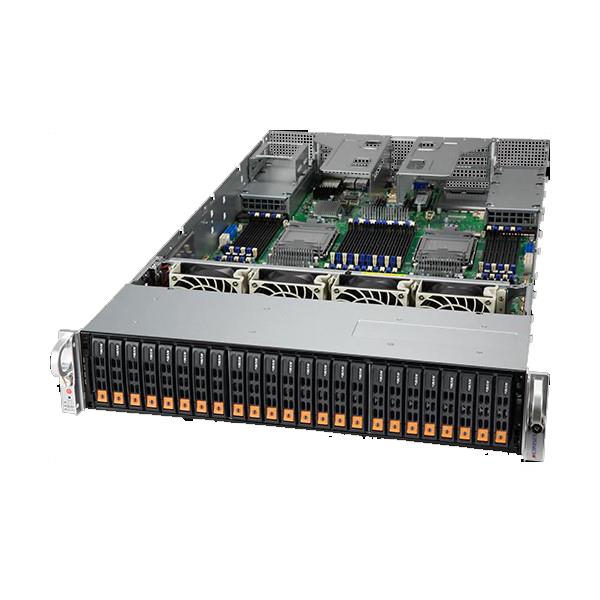

Supermicro SYS-240P-TNRT 2U Barebone Quad Intel Processor
• Artificial Intelligence (AI)
• Business Intelligence
• ERP, CRM
• Scientific Virtualization
• In-Memory Database
• HCI
• SAP HANA
Server 2U Rackmount Quad Intel Xeon Scalable Processor, up to 18TB 3DS ECC Memory in 48 DIMM Slots, up to 24 Hot-Swap NVMe/SAS3/SATA3 drives (Default 8x SAS3/SATA3), onboard 2x M.2 SATA slots, Dual 10G RJ45 + Dual 10G SFP+ Ports, 2000W Redundant Power Supply (CSE-218HTS-R2K08P + X12QCH+)
To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs, and 1 Storage Device HDD/HDS/M.2).
1. Quad Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable processors
2. 48 DIMMs; Up to 18TB 3DS ECC DDR4-3200:LRDIMM/RDIMM/Intel® Intel® DCPMM
3. Intel® Ethernet Controller X710-TM4 2x 10G RJ45 + 2x 10G SFP+ port; (optional) AIOM up to 100G QSFP28
4. Up to 24 Hot-swap 2.5" NVMe/SAS3/SATA3 drive bays (Default with 8 SAS3/SATA3 drive bays); Onboard 2x M.2 SATA.
5. 4 heavy duty fans w/ optimal fan speed control; 1 Air Shroud
Extra Specifications for Supermicro SYS-240P-TNRT 2U Barebone Quad Intel Processor
| Motherboard | ||
| Motherboard | Super X12QCH+ | |
| Processor | ||
| CPU | 3rd Gen Intel® Xeon® Scalable processors | |
| Quad Socket P+ (LGA-4189) | ||
| 6 UPI up to 10.4GT/s | ||
| Support CPU TDP 120-250W | ||
| Cores | Up to 28C/56T; Up to 38.5MB Cache | |
| System Memory | ||
| Memory | Intel® Optane™ persistent memory 200 series | |
| Memory Capacity: 48 DIMM slots | ||
| Memory Type: 3200MHz ECC DDR4 LRDIMM/RDIMM | ||
| Up to 12TB: 48x 256 GB DRAM | ||
| Up to 18TB: 24x 256 GB DRAM and 24x 512 GB PMem | ||
| On-Board Devices | ||
| Chipset | Intel® C621 | |
| Network Connectivity | (Optional) AIOM 100G QSFP 28 | |
| 2x 10GbE BaseT + 2x 10GbE SFP+ with Intel® X710-TM4 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Input / Output | ||
| Video | 1 VGA port(s) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 10G RJ45 | ||
| 2x 10G SFP+ | ||
| USB | 2 USB 3.0 port(s) (2 rear) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | Watch Dog | |
| NMI | ||
| SuperDoctor® 5 | ||
| IPMI 2.0 | ||
| SUM | ||
| Power Configurations | Power-on mode for AC power recovery | |
| ACPI Power Management | ||
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| 4+1 Phase-switching voltage regulator | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 2U Rackmount | |
| Model | CSE-218HTS-R2K08P | |
| Dimensions and Weight | ||
| Height | 3.5" (89mm) | |
| Width | 17.3" (439.5mm) | |
| Depth | 31.6" (803mm) | |
| Package | 9.75" (H) x 26.5" (W) x 43.5" (D) | |
| Weight | Net Weight: 45.5 lbs (20.64 kg) | |
| Gross Weight: 71.5 lbs (32.43 kg) | ||
| Available Color | Black | |
| Front Panel | ||
| Buttons | Power On/Off | |
| UID/ BMC Reset (Default) | ||
| LEDs | HDD activity | |
| Power status | ||
| Network activity | ||
| System information (overheat/UID) | ||
| Drive Bays / Storage | ||
| Hot-swap | 24x 2.5" hot-swap NVMe/SAS3/SATA3 drive bays (24x 2.5" NVMe hybrid) | |
| M.2 | 2 M.2 NVMe OR 2 M.2 SATA3 | |
| System Cooling | ||
| Fans | 4x 8cm heavy duty fans with optimal fan speed control | |
| Air Shroud | 8 Air Shroud(s) | |
| Power Supply | ||
| Dimension (W x H x L) | 73.5 x 40 x 203 mm | |
| +12V | Max: 83A / Min: 0A (100Vac-127Vac) | |
| Max: 150A / Min: 0A (200Vac-220Vac) | ||
| Max: 165A / Min: 0A (220Vac-230Vac) | ||
| Max: 166A / Min: 0A (230Vac-240Vac) | ||
| Output Type | Backplanes (gold finger) | |
| Certification | Titanium Level | |
| AC Input | 1000W: 100-127Vac / 50-60Hz | |
| 1800W: 200-220Vac / 50-60Hz | ||
| 1980W: 220-230Vac / 50-60Hz | ||
| 2000W: 230-240Vac / 50-60Hz | ||
| 2000W: 220-240Vac / 50-60Hz | ||
| 2000W: 230-240Vdc | ||
| 12V SB | Max: 3.5A / Min: 0A | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 90% (Non-Condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) | ||
| Product SKUs | ||
| Product SKUs | SYS-240P-TNRT | |
| Expansion Slots | ||
| PCI-Express (PCIe) | 2 PCIe 3.0 x16 FHHL slot(s) | |
| 2 PCIe 3.0 x8 FHFL slot(s) | ||
| 2 PCIe 3.0 x16 FHFL slot(s) | ||
| 4 PCIe 3.0 x8 LP slot(s) | ||
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| 2.5" SATA/SAS Drive Trays | MCP-220-00147-0B • | 8 or 16 | Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design) | |||
| CacheVault(s) | BTR-CVPM05 | 1 ~ 2 | CacheVault for Broadcom RAID Controller (Ex. S3908/S3916) | |||
| CacheVault(s) | MCP-240-00203-0N | $ 21.00 | 1 | BTR-CVPM05 Supercap mounting bracket for PCIe location (Support up to 2 BTR) | ||
| CacheVault(s) | MCP-240-00127-0N | $ 14.50 | 1 | BTR-CVPM05 Supercap mounting bracket for above power supply (support 1 BTR) | ||
| CacheVault(s) | BTR-CV3108-U1 | $ 328.00 | 1 ~ 3 | CacheVault for SMC 3108; Supercap mounted on chassis wall | ||
| Double Width GPU Kit | MCP-240-21828-0N | $ 337.00 | 1 | GPU Brackets (Set L+R) | ||
| Double Width GPU Kit | SNK-P0077PW • | 4 | 1U Heatsink for CPUs ≤ 165W | |||
| GPU power cable | CBL-PWEX-1040 • | 1/GPU | GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AWG, 10.5A/pin(16AWG), 8A/pin(20AWG), -25~85C,RoHS | |||
| GPU power cable | CBL-PWEX-1042 • | 1/GPU | GPU, 2x4F/CPU to 2x4F/CPU, P4.2, 50CM, 16AWG, 10A/pin, -40~105C | |||
| Intel NVMe RAID Controller | AOC-VROCSTNMOD | 0 | Intel VROC HW key (RSTe) standard upgrade module | |||
| Intel NVMe RAID Controller | AOC-VROCPREMOD | $ 342.50 | 0 | Intel VROC Premium, RAID 0, 1, 5, 10 | ||
| Low Profile Riser Kit(Per side) | RSC-H2-68G4 | $ 73.00 | 1 | Hyper riser card with one PCIe 4.0 x16 and one PCIe | ||
| Low Profile Riser Kit(Per side) | MCP-240-21825-0N | $ 170.00 | 1 | Low profile riser bracket for SC218H | ||
| Low Profile Riser Kit(Per side) | CBL-SAST-1307LPR-85 | $ 49.50 | 2 | SlimSAS x8 (STR) to SlimSASLP x8 (RA) ,37CM,85Ohm,RoHS | ||
| Low Profile Riser Kit(Per side) | CBL-SAST-1207LP-85 | $ 35.00 | 1 | SlimlineLP x8 (STR,RSC) to Slimline x8 (STR),26CM,85 OH | ||
| Low Profile Riser Kit(Per side) | CBL-PWEX-1172-2654 | 1 | LP Riser power cable McHi,P3.0(2x4 to 2x2)+ to MnFt,2x4,PH4.2,26/54CM,9A/p,16 | |||
| NVMe Support Kit | MCP-220-00167-0B • | 1 ~ 24 | Tool-less black hot-swap 2.5" NVMe drive tray (Orange tab, w/ key lock, clip design) | |||
| NVMe Support Kit | CBL-SAST-1046 | $ 51.00 | 1 ~ 12 | SLIMLINE SAS (LE) to SLIMLINE SAS, INT, 39CM,32AWG,85 Ohm (1 cable supports 2 NVMe U.2 Drives) | ||
| Power Supply | PWS-2K08A-1R • | 1 ~ 2 | 1U 2000W 100-240VAC Titanium Ultra power supply 73.5x40x203mm | |||
| RAID Controller 01-08pcs SATA3/SAS | CBL-SAST-1281-100 | $ 47.00 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM | ||
| RAID Controller 01-08pcs SATA3/SAS | AOC-S3908L-H8IR-16DD | $ 712.00 | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP | ||
| RAID Controller 09-16pcs SATA3/SAS | CBL-SAST-1281-100 | $ 47.00 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM | ||
| RAID Controller 09-16pcs SATA3/SAS | CBL-SAST-1296F-100 | $ 38.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM,10 | ||
| RAID Controller 09-16pcs SATA3/SAS | AOC-S3916L-H16IR-32DD | $ 806.00 | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP | ||
| RAID Controller 17-24pcs SATA3/SAS | CBL-SAST-1296F-100 | $ 38.00 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM,10 | ||
| RAID Controller 17-24pcs SATA3/SAS | CBL-SAST-1281-100 | $ 47.00 | 2 | Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM | ||
| RAID Controller 17-24pcs SATA3/SAS | AOC-S3916L-H16IR-32DD | $ 806.00 | 1 | 16 int 12Gb/s ports, x8 Gen4, ROC - LP | ||
| RAID Controller 17-24pcs SATA3/SAS | AOC-S3908L-H8IR-16DD | $ 712.00 | 1 | 8 int 12Gb/s ports, x8 Gen4, ROC - LP | ||
| TPM security module | AOM-TPM-9671V | $ 52.00 | 1 | TPM module (Vertical) TPM 1.2 | ||
| TPM security module | AOM-TPM-9670V | $ 52.00 | 1 | TPM module (Vertical) TPM 2.0 |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
