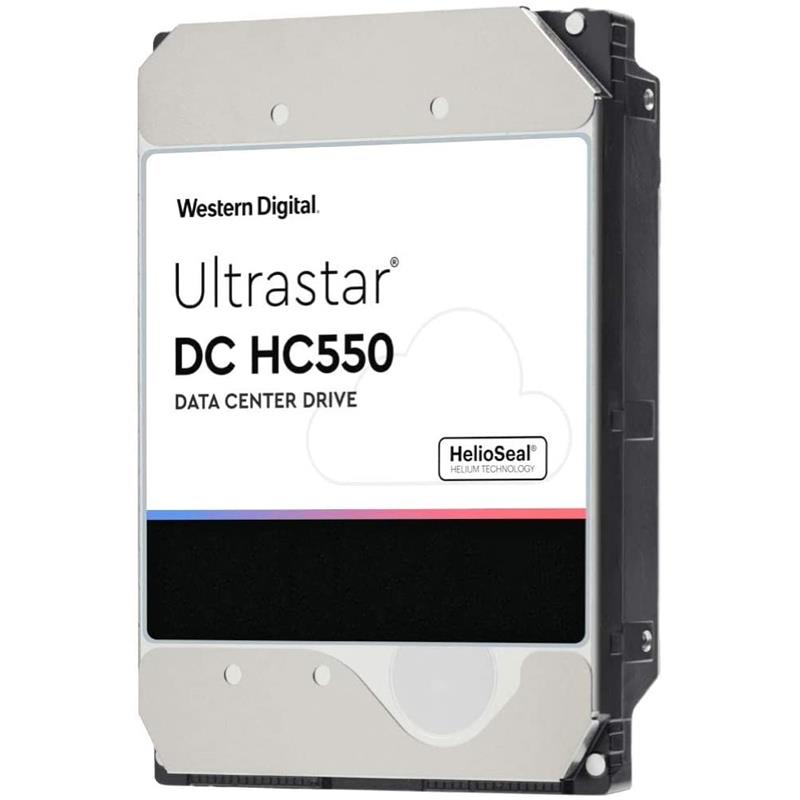

- Western Digital WUH721816ALE6L4 16TB Hard Drive SATA 6Gb/s 7200 RPM 3.5In SE 512 Emulation - Ultrastar DC HC550 Series
Western Digital WUH721816ALE6L4 16TB Hard Drive SATA 6Gb/s 7200 RPM 3.5In SE 512 Emulation - Ultrastar DC HC550 Series
Massive Scale-Out, High-Density Data Centers
16TB capacity in a standard 3.5-inch form factor
Cloud & Hyperscale Storage, Surveillance Analytics
Designed for public and private cloud environments
Hard Drive 16TB SATA 6Gb/s 3.5In 7200 RPM, 512e, 512MB Cache, CMR, Energy-Assisted Magnetic Recording, HelioSeal, Secure Erase, Up To 262MB/s Sustained Transfer Rate, 2.5 Million Hours MTBF, 0F38462 Ultrastar DC HC550 Series - OEM
Total Cost of Ownership (TCO) Drives the Data Center Architecture
Datacenter decisions are driven by TCO. Higher capacity hard drives play a leading role in reducing TCO. An 18TB data center HDD provides 29% more capacity in the same form factor as a 14TB HDD. Higher capacity HDDs enable data centers to lower CapEx by reducing supporting hardware and system-level costs when compared to lower capacity drives. Helium-sealed, low power, high-reliability drives reduce energy and maintenance costs, contributing to OpEx savings. For example, a data center using 18TB HDDs vs. 14TB HDDs requires 22% fewer racks while consuming 21% less power per TB at idle, resulting in significant overall TCO reduction for data center environments.
Highlights
16TB capacity in a standard 3.5-inch form factor
CMR technology works with all capacity enterprise applications & environments
Reliable, field-proven, 6th generation design
Industry’s first HDD with Energy-Assisted Magnetic Recording technology
Industry’s first Triple Stage Actuator
HelioSeal design delivers outstanding power efficiency
2.5M hours (projected) MTBF rating & 5-year limited warranty
Self-Encrypting Drive Options
Applications
Cloud & Hyperscale storage
Massive scale-out (MSO), high-density data centers
Distributed File Systems
Bulk storage using object storage solutions like Ceph and OpenStack Swift
Primary and secondary storage for Apache Hadoop® for Big Data Analytics
Extra Specifications for Western Digital WUH721816ALE6L4 16TB Hard Drive SATA 6Gb/s 7200 RPM 3.5In SE 512 Emulation - Ultrastar DC HC550 Series
| Main Specifications | ||
| Device Type | Hard drive - internal | |
| Capacity | 16TB | |
| Interface | SATA 6Gb/s | |
| Form Factor | 3.5-inch HDD | |
| Dimensions (WxDxH) | 101.6 (+/-0.25) x 147 mm | |
| Weight | 690 (g, max) | |
| Hard Drive | ||
| Buffer Size | 512MB | |
| Spindle Speed | 7200RPM | |
| Performance | ||
| Average Latency | 4.16 ms | |
| Interface Access Speed (Gb/s) | 600 | |
| Max Sustainable Transfer Rate | 262 MiB/s | |
| Load / Unload Cycles | 600,000 | |
| Reliability | ||
| Non-Recoverable Errors | 1 in 10^15 | |
| Availability (hrs/day x days/wk) | 24x7 | |
| Annual Failure Rate (AFR) | 0.35% | |
| Miscellaneous | ||
| MTBF | 2.5 (M hours) | |
| Key Application | Cloud & Hyperscale storage, Massive scale-out (MSO), high-density data centers, Distributed File Systems, Bulk storage using object storage solutions like, Ceph and OpenStack Swift, Primary and secondary storage for Apache, Hadoop for Big Data Analytics | |
| Features | 16TB capacity in a standard 3.5-inch form factor, CMR technology works with all capacity enterprise, applications & environments, Reliable, field-proven, 6th generation design, Industry’s first HDD with Energy-Assisted Magnetic Recording technology, Industry’s first Triple Stage Actuator, HelioSeal design delivers outstanding power efficiency, 2.5M hours (projected) MTBF² rating & 5-year limited warranty | |
| Environmental | ||
| Operating Environment | Ambient temperature: 5° to 60°C | |
| Shock (half-sine wave, 2ms, G): 50 | ||
| Vibration (G RMS, 5 to 500Hz): 0.67 (XYZ) | ||
