- Supermicro SYS-5019D-RN8TP 1U Compact Embedded Intel Xeon D-2146NT Processor
Supermicro SYS-5019D-RN8TP 1U Compact Embedded Intel Xeon D-2146NT Processor
• Network Security Appliance
• Software Defined WAN (SD-WAN)
• vCPE controller box
• NFV Edge Computing Server
• Virtualization Server
• IoT Edge Computing
Barebone 1U Rackmount SuperServer, Embedded Intel Xeon D-2146NT Processor, 2.30GHz 8-Core/16 Thread. Support up to 512GB of DDR4 ECC LRDIMM or up to 256GB DDR4 ECC/non-ECC RDIMM in 4 DIMM slots, 1x M.2 slot 2242/80, 1x M.2 B Key for SSD/WAN card, 1x Mini-PCIe with mSATA and 1x PCIe 3.0 x8 slot. 4x 1GbE ports, 2x 10GbE, 2x 10GbE SFP+ and 1 IPMI - (CSE-506-R300 + X11SDV-8C-TP8F)
This product is no longer available.

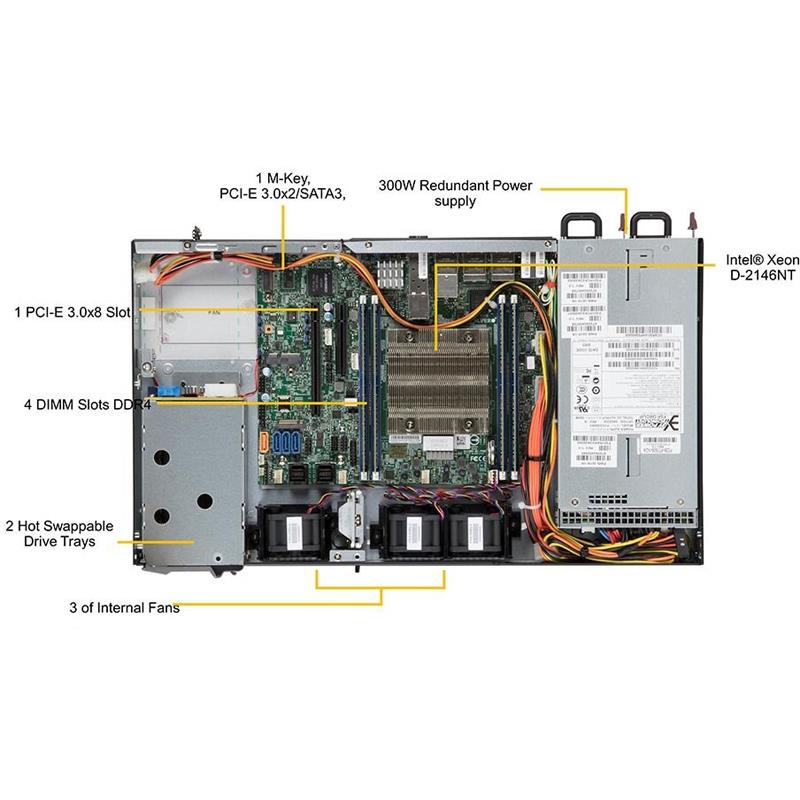

1. Intel® Xeon® processor D-2146NT, 8-Core, 16 Threads, 80W
2. 2 Hot-swap 2.5" drive bays
3. 1 M.2 slot M key for SSD, 2242/80, 1 M.2 B Key for SSD/ WAN card, 1 Mini-PCI-E with mSATA Support, 1 PCI-E 3.0 x8 slot
4. Up to 512GB ECC LRDIMM, up to 256GB ECC RDIMM DDR4-2666Mz; in 4 DIMM slots
5. 4x 1GbE, 2x 10GBase-T, 2x 10G SFP+, and dedicated LAN for IPMI 2.0
6. 1 VGA, 2 USB 3.0
7. 3x 40x28mm 4-PIN PWM fans
8. 300W redundant power supplies
9. Built in Intel QAT up to 40Gbps Crypto/Compression
Extra Specifications for Supermicro SYS-5019D-RN8TP 1U Compact Embedded Intel Xeon D-2146NT Processor
| Motherboard | ||
| Motherboard | Super X11SDV-8C-TP8F | |
| System Memory | ||
| Memory Capacity | Up to 512GB DDR4 ECC LRDIMM | |
| Up to 256GB DDR4 ECC RDIMM | ||
| 4 DIMM slots | ||
| Memory Type | 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM | |
| DIMM Sizes | 128GB, 64GB, 32GB, 16GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| SATA | SATA3 (6Gbps) ports via SoC controller | |
| Network Controllers | Quad 1GbE with Intel I350-AM4 | |
| Dual 10G SFP+ via SoC | ||
| Dual 10GBase-T with Intel X557 | ||
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Graphics | Aspeed AST2500 BMC | |

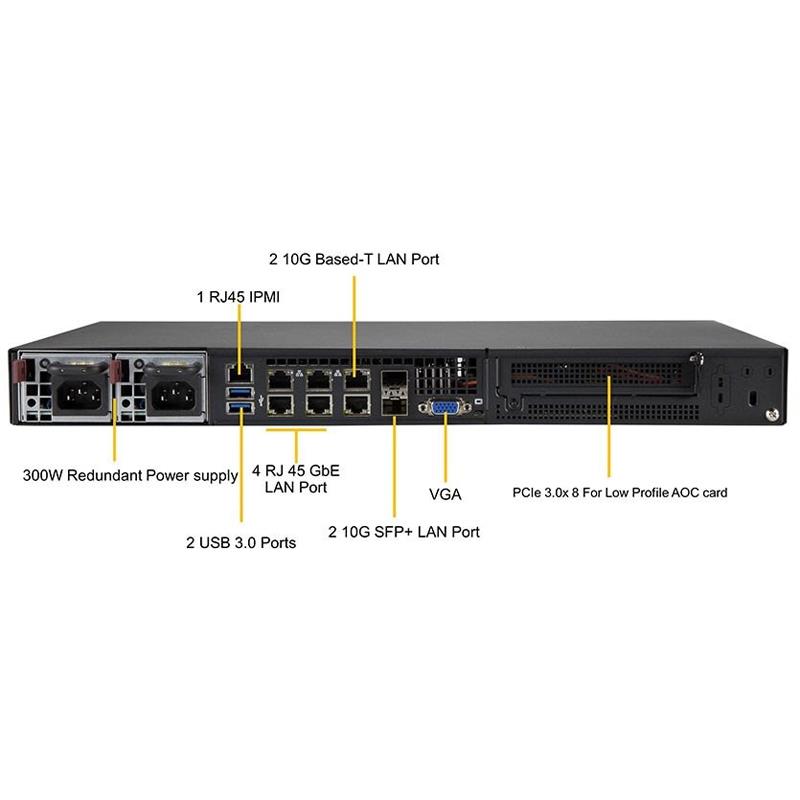

| Input / Output | ||
| SATA | 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD) | |
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2 RJ45 10GBase-T LAN ports | ||
| 2 10G SFP+ ports | ||
| 4 RJ45 1GbE LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| VGA | 1 VGA port | |
| Others | TPM 2.0 header | |
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-506-R300 | |

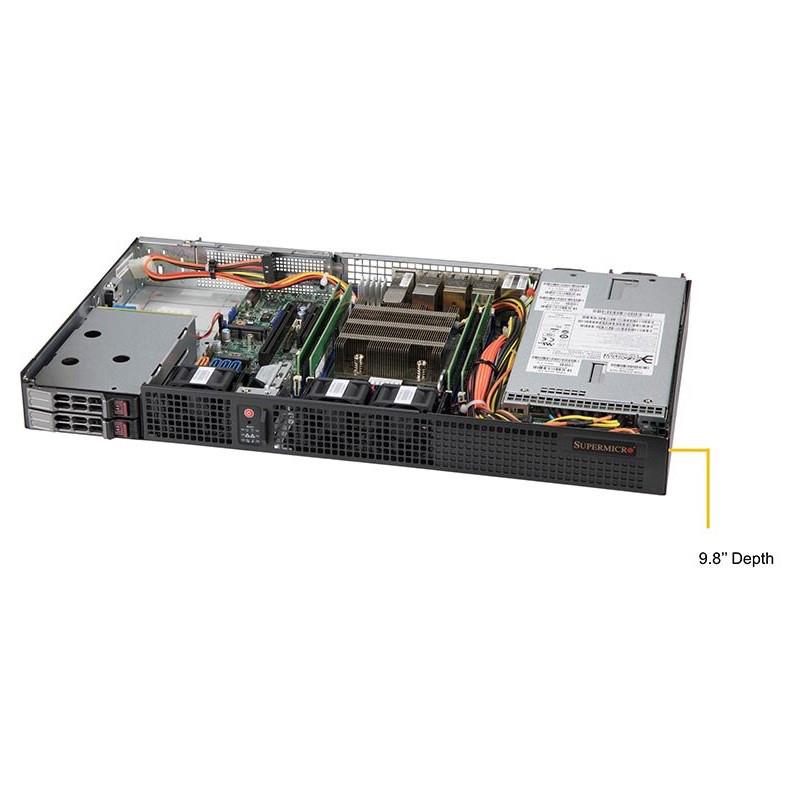

| Dimensions and Weight | ||
| Height | 1.7" (43mm) / 6.1" (155mm) - pkg. | |
| Width | 17.2" (437mm) / 25.8" (655mm) - pkg. | |
| Depth | 9.8" (249mm) / 18.3" (465mm) - pkg. | |
| Weight | Gross Weight: 12 lbs (5.44 kg) | |
| Net Weight: 8 lbs (3.63 kg) | ||
| Available Colors | Black | |

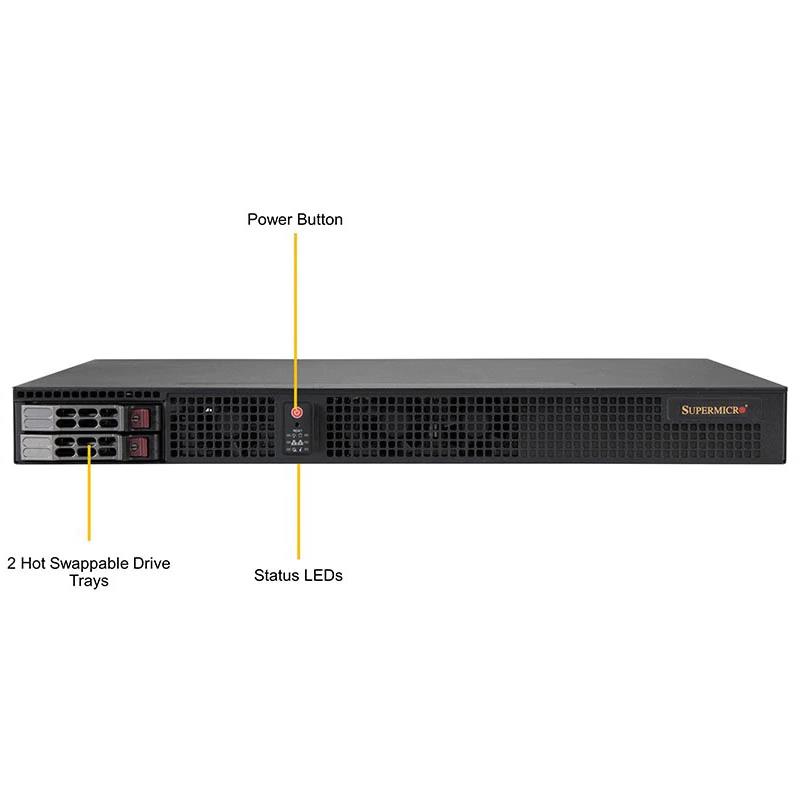

| Front Panel | ||
| Buttons | Power On/Off button | |
| System Reset button | ||
| LEDs | Power LED | |
| System Information LED | ||
| Network activity LEDs | ||
| Information LED (temp., status) | ||
| Hard drive activity LED | ||
| Expansion Slots | ||
| PCI-E | 1 PCI-E 3.0 x8 slot | |
| 1 Mini-PCI-E with mSATA Support | ||
| M.2 | 1 M.2 slot M key for SSD, 2242/8 | |
| 1 M.2 B Key for SSD/ WAN card | ||
| Drive Bays | ||
| Hot-swap | 2 Hot-swap 2.5" drive bays | |
| System Cooling | ||
| Fans | 2x 40x28mm 4-PIN PWM fans | |
| Power Supply | ||
| Power Supply | 300W Redundant Power Supplies | |
| AC Voltage | 100 - 240V, 50-60Hz | |
| +5V | 20 Amp (max.) | |
| +5V standby | 3 Amp (max.) | |
| +12V | 25 Amp (max.) | |
| 1 Amp (min.) (100Vac-240Vac) | ||
| -12V | 0.5 Amp (max.) | |
| +3.3V | 20 Amp (max.) | |
| Certification | Gold Certified | |
| System BIOS | ||
| BIOS Type | 128Mb SPI Flash with AMI BIOS | |
| BIOS Features | UEFI 2.4 | |
| ACPI 5.0 | ||
| USB Keyboard support | ||
| RTC (Real Time Clock) Wakeup | ||
| PCI 3.0 | ||
| Hardware BIOS Virus protection | ||
| SMBIOS 2.8 | ||
| Operating Environment / Compliance | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 0°C to 35°C (32°F to 95°F) | ||
| Processor | ||
| CPU | Intel® Xeon® processor D-2146NT , CPU TDP support 80W | |
| Cores / Cache | 8 Cores, 16 Threads | |
| Product SKUs | ||
| Product SKUs | SuperServer 5019D-RN8TP (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11SDV-8C-TP8F | 1 | Super X11SDV-8C-TP8F Motherboard | |
| Motherboard / Chassis | CSE-506-R300 | 1 | 1U Chassis | |
| FAN 1 | FAN-0065L4 | 3 | 4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M | |
| Fan Holder | MCP-320-81302-0B | 3 | Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only) | |
| Power Supply | PWS-301R-1R | 1 | 1 set of 300W Redundant Power supplies,RoHS |
| Name | Part Number | Price | Add to Cart | Qty. | Description | |
|---|---|---|---|---|---|---|
| Rail kit | MCP-290-50404-0N | $ 89.00 | 1 | SC504 / 505 / 510 Fix Rail kit Set | ||
| Riser Card | RSC-RR1U-E8RSC-RR1U-E16 | 11 | Note: Server can only support Low Profile Added-On-Card | |||
| Riser Card Bracket | MCP-240-00091-0N | $ 20.50 | 2 | 1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF | ||
| SuperDOM | - | 0 | Supermicro SATA DOM Solutions [Details] |
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
