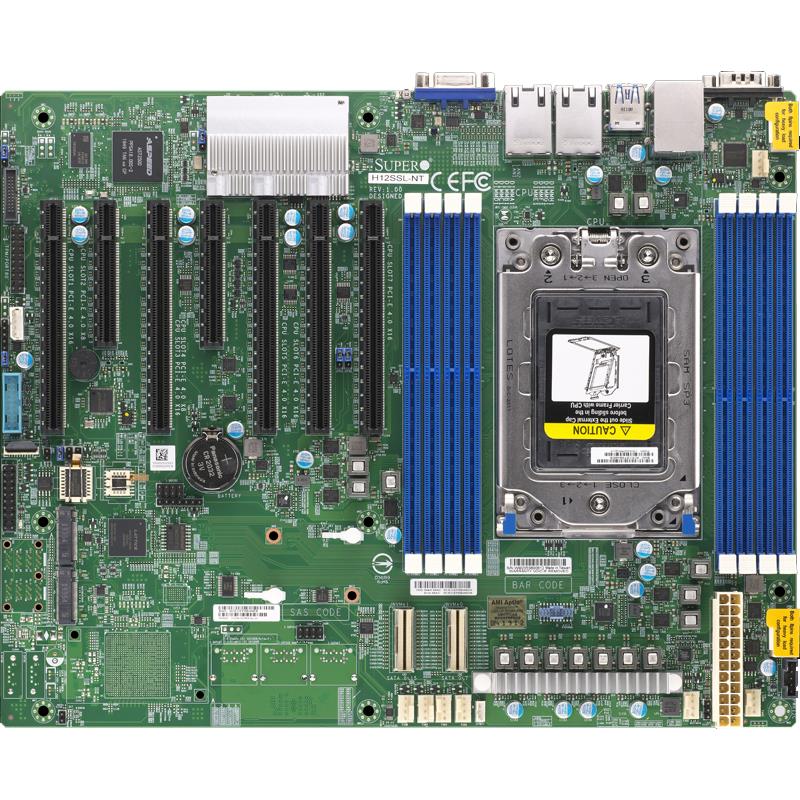

- Supermicro H12SSL-NT Motherboard ATX Single Socket SP3 AMD EPYC 7003/7002, Up to 2TB DDR4 Reg ECC 3200MHz Memory in 8 DIMM Slots
Supermicro H12SSL-NT Motherboard ATX Single Socket SP3 AMD EPYC 7003/7002, Up to 2TB DDR4 Reg ECC 3200MHz Memory in 8 DIMM Slots
Supports AMD EPYC 7002 Series Processor
Ideal for High-Density Data Center applications
2TB Registered ECC DDR4-3200 SDRAM, eight DIMM slots
Optimized for high-performance computing, NVMe storage solutions
Motherboard ATX, Supports Single Socket SP3, Supporting AMD EPYC 7003/7002 Series Processor, up to 2TB DDR4 Reg ECC 3200MHz memory in 8 DIMM slots, 2x SlimSAS x8 (each: 8 SATA3 or 2 NVMe), 2x M.2, Dual 10GbE LAN, IPMI 2.0 + KVM, TPM 2.0 - MBD-H12SSL-NT-O
ASPEED AST2500 BMC graphics
Single AMD EPYC 7002 Series Processor
2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe)
Dual 10GBase-T LAN via Broadcom BCM57416
Up to 6 USB 3.0 ports (4 rear + 2 via header)
7 PWM 4-pin Fans with tachometer status monitoring
Expansion slots: 5 PCI-E 4.0 x16, 2 PCI-E 4.0 x8, M.2 Interface: 2 PCI-E 4.0 x4, M.2 Form Factor: 2280, 22110, M.2 Key: M-key
Extra Specifications for Supermicro H12SSL-NT Motherboard ATX Single Socket SP3 AMD EPYC 7003/7002, Up to 2TB DDR4 Reg ECC 3200MHz Memory in 8 DIMM Slots
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | ATX | |
| Dimensions (WxDxH) | 12" x 9.6 ", (30.5cm x 24.4cm) | |
| Processor | ||
| Compatible Processors | Single AMD EPYC 7002 Series Processor | |
| Compatible Socket | Socket SP3 | |
| Cores / Cache | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots, Supports up to 2TB Registered ECC DDR4 3200MHz SDRAM, 8-channel memory bus | |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs | |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB | |
| Memory Voltage | 1.2 V | |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) | |
| On-Board Devices | ||
| SATA RAID | SATA3 (6 Gbps) | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| ASPEED AST2500 BMC | ||
| Network Controllers | Dual 10GBase-T LAN via Broadcom BCM57416, 1 Realtek RTL8211F PHY (dedicated IPMI) | |
| Graphics | ASPEED AST2500 BMC | |
| TPM | 1x TPM 2.0 Header | |
| Input / Output | ||
| SATA/NVMe Hybrid | 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe) | |
| LAN | Dual 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port | |
| Others | 6 USB 3.0 ports (4 rear + 2 via header) | |
| VGA | 1 VGA port | |
| COM Port | 1 COM port (rear) | |
| Expansion Slots (per node) | ||
| PCI-Express | 5 PCI-E 4.0 x16 | |
| 2 PCI-E 4.0 x8 | ||
| Expansion / Connectivity | ||
| M.2 | Form Factor: 2280, 22110 | |
| Key: M-key | ||
| Interface: 2 PCI-E 4.0 x4 | ||
| Compatible Chassis | ||
| Compatible Chassis | 1U: SC813MFTQC-R407CB | |
| 2U: SC213AC-R1K23LPB, SC216BE1C4-R1K23LPB, SC826BE1C4-R1K23LPB | ||
| 3U: SC836BE1C-R1K23B | ||
| 4U: SC846BE1C-R1K23B | ||
| System BIOS | ||
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 5.1, USB Keyboard Support, SMBIOS 3.1.1 | |
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| Management | ||
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN | |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery | |
| PC Health Monitoring | ||
| CPU | Monitors CPU Core Voltages, +3.3V, +5V, +5V standby, +3.3V standby, CPU switching voltage regulator, Supports system management utility, VBAT | |
| FAN | Up to 7-fan status tachometer monitoring, Up to 7 4-pin fan headers, Dual Cooling Zone, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors | |
| Temperature | Monitoring for CPU and chassis environment, CPU Thermal Trip Support, Thermal control for 7x Fan connectors, I²C Temperature Sensing Logic | |
| LED | CPU / System Overheat LED | |
| Other Features | Chassis Intrusion Detection, Chassis Intrusion Header, UID | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Parts List | ||
| Motherboard | 1x MBD-H12SSL-NT-O | |
| I/O Cables | 1x CBL-SAST-0827 | |
| I/O Shield | 1x MCP-260-00042-0N | |
