- Supermicro SSG-6119P-ACR12N4L 1U Storage Barebone Dual Processor
Supermicro SSG-6119P-ACR12N4L 1U Storage Barebone Dual Processor
• Hyperscale Data Center
• Object Storage
• Big Data Analytics
• Scale-Out Density
• Hadoop & Ceph storage solutions
• Database Applications

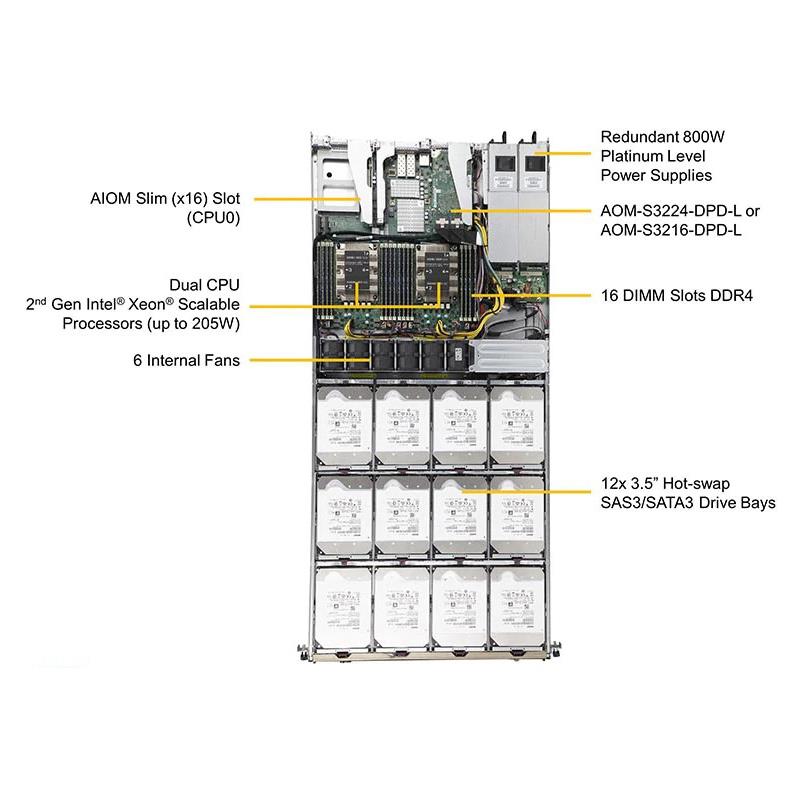

Barebone 1U SuperStorage Server with Dual Intel Xeon Scalable processor Gen. 2, support 12 Hot-Swap 3.5in SAS3/SATA3 drives, 2x 25Gb SFP28 onboard, Redundant Hot-swap 800W power supplies
This product is no longer available.
1. Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
2. 16 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
3. 1 PCI-E 3.0 x16 (HBA AOM), 1 PCI-E 3.0 x16 Left riser slot, 1 PCI-E 3.0 x8 Right riser slot, 1 PCI-E 3.0 x16 (AIOM)

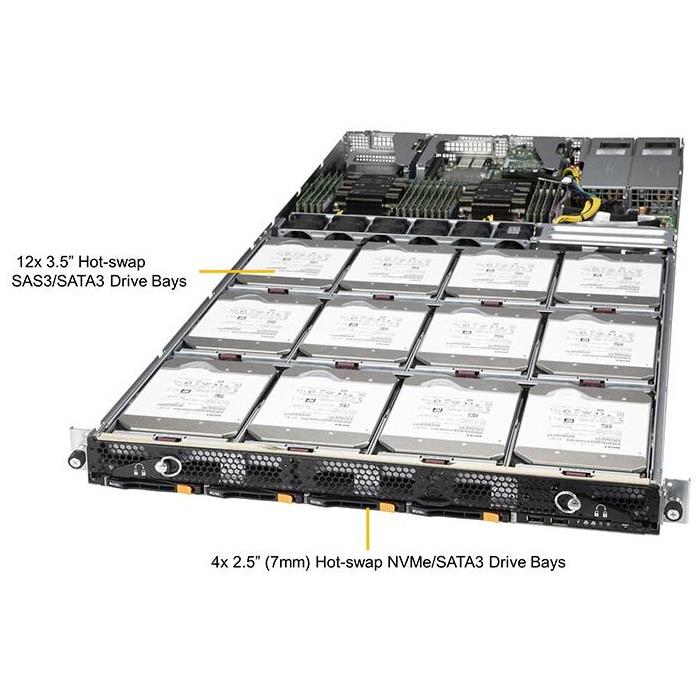

4. 12 Hot-swap 3.5" SAS3/SATA3 drive bays with Broadcom 3224/3216 SAS3 IT mode controller
5. 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays
6. 2 M.2 NVMe/SATA up to 80mm
7. Front Panel HDD Locate LED
8. Internal Cable Arm
9. 2x 25Gb SFP28 onboard
10. 800W Redundant Power Supplies Platinum Level High-efficiency
Extra Specifications for Supermicro SSG-6119P-ACR12N4L 1U Storage Barebone Dual Processor
| Motherboard | ||

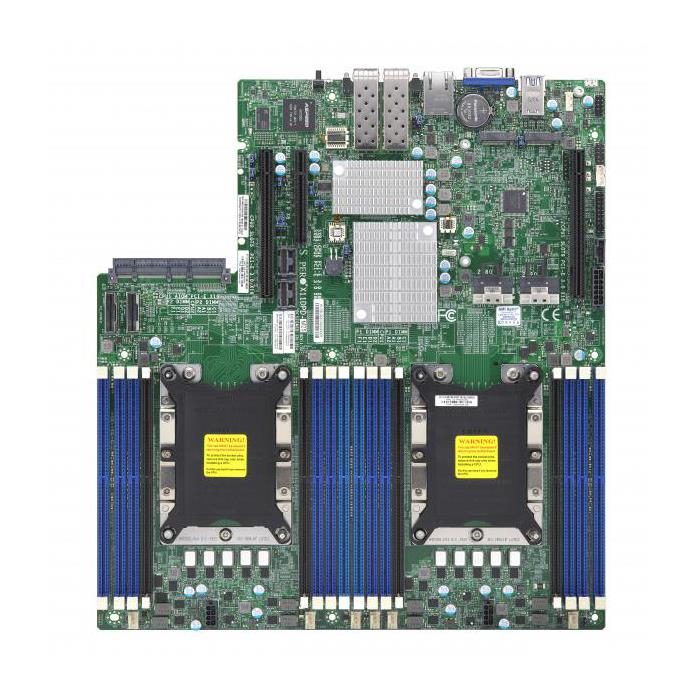

| Motherboard | Super X11DPD-M25 | |
| Processor/Cache | ||
| CPU | Dual Socket P (LGA 3647) | |
| 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors ‡ , Dual UPI up to 10.4GT/s | ||
| Support CPU TDP up to 205W * | ||
| Cores | Up to 28 Cores | |
| Note | ‡ BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R). | |
| System Memory | ||
| Memory Capacity | 16 DIMM slots | |
| Supports Intel® Optane™ DCPMM †† | ||
| Up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM | ||
| Memory Type | 2933 † /2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM | |
| Note | † 2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro †† Cascade Lake only. Contact your Supermicro sales rep for more info. | |
| On-Board Devices | ||
| Chipset | Intel® C621 chipset | |
| SATA | SATA3 (6Gbps); RAID 0, 1, 5, 10 | |
| Network Controllers | Mellanox CONNECTX-4 LX EN 25GbE | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0 | |
| IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | ||
| Video | ASPEED AST2500 BMC | |

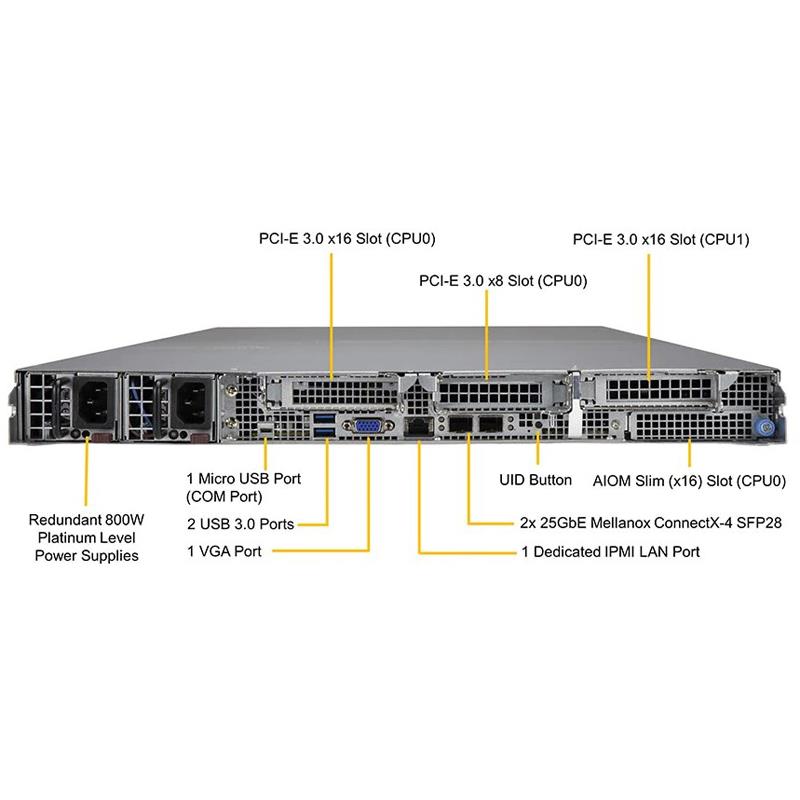

| Input / Output | ||
| LAN | 1 RJ45 Dedicated IPMI LAN port | |
| 2x 25G SFP28 LAN ports | ||
| USB | 2 USB 3.0 ports (rear) | |
| 2 USB 2.0 ports (front via header) | ||
| Video | 1 VGA port | |
| Others | TPM 2.0 Header, 1 Micro USB (COM Port) | |
| System BIOS | ||
| BIOS Type | AMI 32Mb SPI Flash ROM | |
| Management | ||
| Software | Watch Dog | |
| KVM with dedicated LAN | ||
| SuperDoctor® 5 | ||
| Intel® Node Manager | ||
| IPMI 2.0 | ||
| SSM , SPM , SUM | ||
| Power Configurations | ACPI / APM Power Management | |
| PC Health Monitoring | ||
| CPU | 4+1 Phase-switching voltage regulator | |
| Monitors for CPU Cores, Chipset Voltages, Memory. | ||
| FAN | Status monitor for speed control | |
| Pulse Width Modulated (PWM) fan connectors | ||
| Fans with tachometer monitoring | ||
| Temperature | Monitoring for CPU and chassis environment | |
| Thermal Control for fan connectors | ||
| Chassis | ||
| Form Factor | 1U Rackmount | |
| Model | CSE-802TS-R804AMP | |
| Dimensions and Weight | ||
| Width | 17.6" (447mm) | |
| Height | 1.7" (43mm) | |
| Depth | 37" (940mm) | |
| Weight | Gross Weight: 57.5 lbs (26 kg) | |
| Net Weight: 39.5 lbs (18 kg) | ||
| Available Colors | Black | |

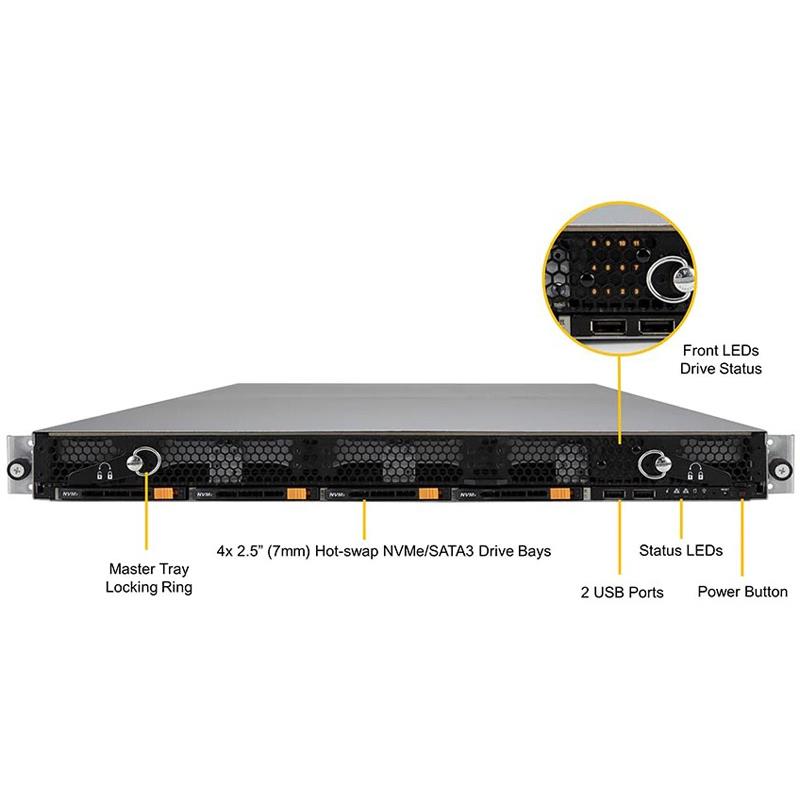

| Front Panel | ||
| Buttons | Power On/Off button | |
| UID button | ||
| LEDs | Network activity LEDs | |
| Power status LED | ||
| HDD activity LED | ||
| Universal Information (UID) LED | ||
| Expansion Slots | ||
| PCI-Express | 1 PCI-E 3.0 x16 (HBA Add-on-Module) | |
| 1 PCI-E 3.0 x16 Left riser slot | ||
| 1 PCI-E 3.0 x8 Right riser slot | ||
| 1 PCI-E 3.0 x16 (AIOM) | ||
| Drive Bays | ||
| Hot-swap | 4 Hot-swap 2.5" 7mm NVMe/SATA drive bays | |
| 12 Hot-swap 3.5" SAS3/SATA3 HDD bays | ||
| Backplane | ||
| Backplane | NVMe/SATA HDD Backplane | |
| System Cooling | ||
| Fans | 6x 40x40x56mm 20.5K-17.6K RPM Counter-rotating fans | |
| Power Supplies | ||
| Power Supplies | 800W Redundant Power Supplies with PMBus | |
| Total Output Power | 750W with Input 100 - 127Vac | |
| 800W with Input 200 - 240Vac | ||
| 800W with Input 230 - 240Vdc | ||
| Dimension (W x H x L) | 54.5 x 40.25 x 220 mm | |
| Input | 100 - 127Vac / 50-60Hz | |
| 200 - 240Vac / 50-60Hz | ||
| 230 - 240Vdc / 50-60Hz | ||
| +12V | Max: 62.5A & Min: 0.5A (100Vac-127Vac) | |
| Max: 66.6A & Min: 0.5A (200Vac-240Vac) | ||
| Max: 66.6A & Min: 0.5A (230-240Vdc) | ||
| +5V sb | Max: 4A / Min: 0A | |
| Output Type | Gold Finger Connector Mating with Molex 45984-4343 | |
| Certification | Platinum Certified | |
| Operating Environment | ||
| RoHS | RoHS Compliant | |
| Environmental Spec. | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Product SKUs | ||
| Product SKUs | SuperStorage 6119P-ACR12N4L (Black) | |
| Name | Part Number | Qty. | Description | |
|---|---|---|---|---|
| Motherboard / Chassis | MBD-X11DPD-M25 | 1 | Super X11DPD-M25 Motherboard | |
| Motherboard / Chassis | CSE-802TS-R804AMP | 1 | 1U 12x 3.5" HDD and 4x 2.5"(7mm) chassis with 800W PSU, S-AIOM | |
| Add-on Card / Module | AOM-S3224-DPD-L-P | 1 | DPD MB, SAS 3224 I/O Controller,HF,RoHS | |
| Backplane | BPN-NVME3-802N-S4 | 1 | 4-Port Hybrid Backplane Supports 4 x 2.5 | |
| Backplane | BPN-SAS3-802A-2 | 3 | 4-Port Backplane Supports 4 x 3.5" SAS/SATA HDD,HF,RoHS | |
| Cable 1 | CBL-CDAT-0930 | 1 | CBL,7PIN TO 7PIN,P1.5/1.0mm,17.2CM,26/28AWG,RoHS | |
| Cable 2 | CBL-PWCD-0174-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,14AWG,RoHS/REACH | |
| Cable 3 | CBL-PWEX-1056 | 1 | BPN PWR,2P/P3.0 to 3P/P3.0, 12V, 60CM,18AWG, 6A/pin,RoHS | |
| Cable 4 | CBL-SAST-1028 | 1 | SLIMLINE SAS, INT,Passive Latch,150 CM, power x4, 115 CM,RoH | |
| Cable 5 | CBL-SAST-1101 | 1 | [NR] SLIMLINE x8/2 to Oculink x4,INT, 106CM, 100 OHM,RoHS | |
| Cable 6 | CBL-SAST-1102 | 1 | [NR] SLIMLINE x8 (LE) to 2x Oculink x4,INT, 69/73CM, 85 OHM | |
| Cable 7 | CBL-SAST-1103 | 1 | [NR] SLIMLINE x8 (LE) to 2x Oculink x4,INT, 109/101CM, 85 OH | |
| Front Panel | FPB-802A-LED12 | 1 | SC802 front HDD LED board,RoHS | |
| Riser Card | RSC-AOM-X6 | 1 | Bridge board for AOM 3224/3216,HF,RoHS | |
| Riser Card | RSC-PR-6-X2 | 1 | 1U RHS TwinPro Riser card with one PCI-E 4.0 x16 slot,HF,RoH | |
| Riser Card | RSC-X-6G4 | 1 | 1U LHS Storage riser card with one PCI-E 4.0 x16 slot,HF,RoH | |
| Heatsink / Retention | SNK-P0067PS | 2 | 1U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism | |
| * Power Supply | PWS-804P-1R | 2 | 1U 800W 100-240VAC/50-60Hz, and DC240V input | |
| * Power Distributor | PDB-PTLB16-8814 | 1 | 1U support redundanct powers up to 1200W power distributor | |
| * Cable 8 | CBL-CDAT-0914 | 1 | CBL,SGPIO,4 PIN,F/P2.5 TO 4 PIN,F/P1.25,96.5CM,RoHS | |
| * Cable 9 | CBL-CDAT-0963 | 1 | SERIAL,2X10/P2.54 TO P1.25, 84CM,RoHS | |
| * Cable 10 | CBL-CUSB-0834 | 1 | USB 2.0, 2*5 pin to 8 pin, 95CM | |
| * FAN 1 | FAN-0141L4 | 6 | 40x40x56 mm 20.5K RPM / 17.6K RPM Counter-rotating Fan | |
| * Front Panel | FPB-FP802 | 1 | Front control board for 802 chassis, 2*USB2.0, optional thermal sensor | |
| * Drive Tray(s) | MCP-220-00161-0B | 4 | SC802 2.5" NVME HDD Tray (fit up to 7mm only) | |
| * Drive Tray(s) | MCP-220-00162-0N | 12 | SC802 3.5" internal HDD Tray | |
| * Rear Window | MCP-240-80203-0N | 1 | Rear window for SC802 (S-AIOM) | |
| * Rail Set | MCP-290-00153-0N | 1 | 1U fixed rail set for SC802 w/ quick release (700mm to 940mm) | |
| * Air Shroud | MCP-310-00104-0N | 2 | Mylar air shroud for SC802(X11DPD) |
Note:
• Parts with * come with the chassis
• Excessive parts might not be shipped, including but not limited to excessive drive trays, fans, riser brackets, air shrouds, IO shields, cables.....etc.
