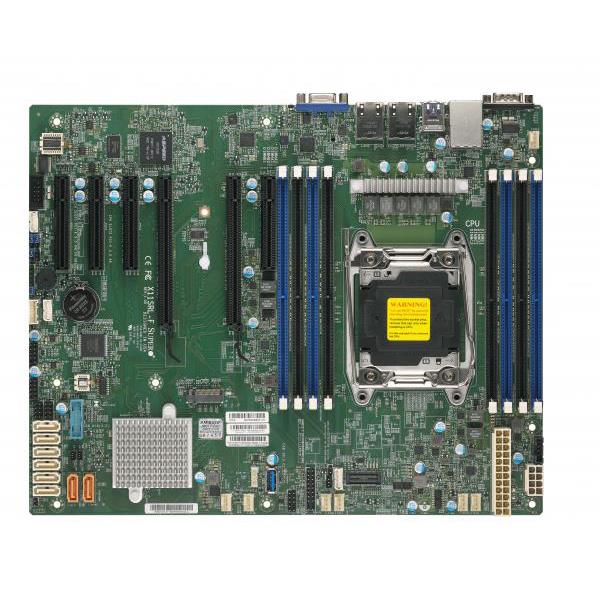

Supermicro X11SRL-F Motherboard ATX Single Socket LGA-2066 (Socket R4) Intel Xeon W-2100 and Intel Xeon W-2200 Processors
Supports Intel Xeon W-2100, Intel Xeon W-2200 Processors
Up to 1TB DDR4-2666MHz LRDIMM memory in 8 DIMM slots
Intel C422 controller for 8 SATA3 (6 Gbps) ports RAID 0,1,5,10
Onboard: Dual LAN with Intel i210 Gigabit Ethernet Controller, 2 SATA DOM
Motherboard ATX, Supports Single Socket LGA-2066 (Socket R4), Supporting Intel Xeon W-2100 and Intel Xeon W-2200 Processors (Up to 18-Core/36 thread). Up to 512GB ECC RDIMM, Intel C422 Chipset, Onboard SATA3 (RAID 0,1,5,10) and Dual 1GbE LAN Ports; MBD-X11SRL-F-O (retail Box)
1. Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors, Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
2. Intel® C422
3. Up to 512GB ECC RDIMM, DDR4-2933MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2933MHz, in 8 DIMM slots
4. 3 PCIe 3.0 x8, 1 PCIe 3.0 x16, 1 PCIe 3.0 x8 (in x16 slot), 1 PCIe 3.0 x4 (in x8 slot) M.2 Interface: 1 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key
5. Dual LAN with Intel® i210 Gigabit Ethernet Controller
6. Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Extra Specifications for Supermicro X11SRL-F Motherboard ATX Single Socket LGA-2066 (Socket R4) Intel Xeon W-2100 and Intel Xeon W-2200 Processors
| System Memory | ||
| Memory Type | 2666/2400/2133 MT/s ECC DDR4 LRDIMM, RDIMM | |
| DIMM Sizes | 4GB, 8GB, 16GB, 32GB, 64GB, 128GB | |
| Memory Voltage | 1.2V | |
| Error Detection | Corrects single-bit errors | |
| Memory Capacity | 8 DIMM slots | |
| Up to 1TB ECC LRDIMM, DDR4-2933MHz; Up to 512GB ECC RDIMM, DDR4-2933MHz | ||
| On-Board Devices | ||
| Chipset | Intel® C422 | |
| IPMI | ASPEED AST2500 | |
| Network Controllers | Dual LAN with Intel® i210 Gigabit Ethernet Controller | |
| Graphics | 1 ASPEED AST2500 BMC port(s) | |
| SATA | Intel® C422 controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10 | |
| Input / Output | ||
| SATA | 8 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 Gigabit Ethernet LAN ports | |
| USB | 2 USB 3.0 port(s) (2 rear) | |
| 6 USB 2.0 port(s) (4 via header; 2 rear) | ||
| 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A) | ||
| Video Output | 1 VGA port(s) | |
| Serial Port | 2 COM Port(s) (1 header; 1 rear) | |
| DOM | 2 SATA DOM (Disk on Module) power connector support | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | SMBIOS 3.0 or later | |
| UEFI 2.7 | ||
| ACPI 6.2 | ||
| Management | ||
| Software | SuperDoctor® 5, SUM , KVM with dedicated LAN, IPMI2.0 , Watchdog | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, CPU thermal trip support for processor protection | |
| PC Health Monitoring | ||
| Voltage | VBAT, System temperature, Monitors CPU voltages, HT, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 7-fan status | |
| FAN | Fan speed control | |
| PWM fan speed control | ||
| System level control | ||
| 7x 4-pin fan headers (up to 7 fans) | ||
| Overheat LED indication | ||
| Temperature | CPU thermal trip support | |
| PECI | ||
| Thermal Control for 6 Fan Connectors | ||
| LED | UID/Remote UID | |
| CPU / System Overheat LED | ||
| Suspend static indicator LED | ||
| Other Features | UID, RoHS, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management | |
| Product SKUs | ||
| Product SKUs | MBD-X11SRL-F | |
| Physical Stats | ||
| Form Factor | ATX | |
| Dimension | 12" x 9.6" (30.48cm x 24.38cm) | |
| Processor | ||
| CPU | Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP | |
| Intel® Xeon® W-2100 Processors , Intel® Xeon® W-2200 Processors | ||
| Core | Up to 18 cores, 36 threads | |
| Note | W-2200 CPU is supported on the motherboards with BIOS 2.0 or newer upon receiving from Supermicro | |
| To support 130W (or higher TDP) W-2200 CPUs, BIOS 2.0 & VRM update by Supermicro are required | ||
| Expansion Slots | ||
| PCIe | 1 PCIe 3.0 x4 (in x8 slot) | |
| 3 PCIe 3.0 x8, | ||
| 1 PCIe 3.0 x16, | ||
| 1 PCIe 3.0 x8 (in x16 slot), | ||
| M.2 | Key: M-Key | |
| M.2 Interface: 1 PCIe 3.0 x4 | ||
| Form Factor: 2280/22110 | ||
| Operating Environment | ||
| Operating Temperature Range | 0°C - 50°C (32°F - 122°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 10% - 85% (non-condensing) | |
| Non Operating Relative Humidity Range | 10% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
