| Main Specifications |

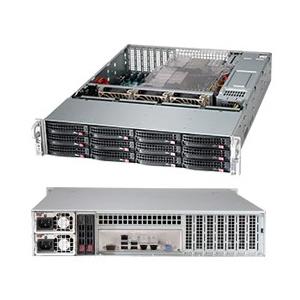

| Device Type | SuperChassis |
| Form Factor | 2U chassis |
| Supported Mainboards | motherboard size - ATX 12" x 10", E-ATX 12" x 13", EE-ATX 13" x 13.68" with rear 2.5" HDD option installed |
| Dimensions (WxDxH) | Height 3.5" (89 mm) x Width 17.2" (437 mm) x Depth 25.5" (647 mm) |
| Weight | Net Weight 40 lbs (18.14 kg) - Gross Weight 55 lbs (24.95 kg) |
| Enclosure Color | Black |
| Processor Support |
| Processor Support | Dual and Single Intel and AMD processors |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 7 low-profile expansion slot |
| Standard Parts List |
| Drive Bays | 12 x 3.5" hot-swap drive bay |
| Optional 2 x 2.5" hot-swap drive bay |
| 12x SAS3/SATA3/NVMe4 storage devices |
| SAS / SATA Backplane |
| SAS / SATA Backplane | 2U 12-Slot LFF Backplane Supports 12 x SAS3/SATA3/NVMe4 Storage Devices with 1x(2x4) + 4x(1x4) power connectors, co-lay with BPN-SAS3-LA26A-N12,HF,RoHS |
| Front Panel |
| Buttons | Power On/Off button, System Reset button |
| LEDs | 2 Network Activity LEDs, Fan Fail/System Over Heat LED, HDD activity LED, Power Status LED, Unit Identification (UID) LED |
| System Cooling |
| Fans | 3 x 8cm high-performance PWM fan(s) |
| System Monitoring |
| System Monitoring | Chassis intrusion switch |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 1200W/1000W Titanium Power Supply W/PMbus W76xL336xH40mm |
| Certification | 80PLUS Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, UL/CB, UL/CUL |
| Parts List - (Items Included) |
| Air Shroud | 1x MCP-310-29001-0N |
| Backplane | 1x BPN-SAS3-LA26A-N12 |
| Cable(s) | 1x CBL-CDAT-0607, 2x CBL-PWCD-0160-IS, 3x CBL-PWEX-1078 |
| Fan(s) | 3x FAN-0166L4, 3x FAN-0206L4 |
| Front Panel | 1x FPB-TB826-T |
| Drive Trays | 12x MCP-220-00075-0B |
| Power Distributor(s) | 1x PDB-PT826-8824 |
| Power Supply Number | 2x PWS-1K23A-1R |
| Mounting Rails | 1x MCP-290-00053-0N |
| Rear Window | 1x MCP-240-82608-0N |
